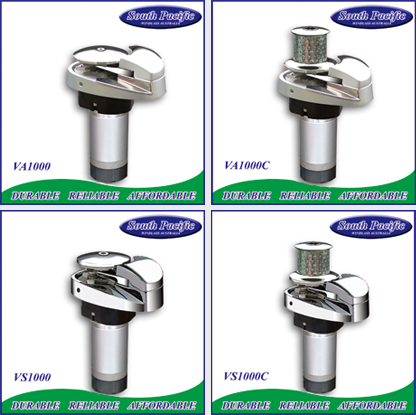

South Pacific VA1000C - Virtical Winch

Details:

The metal gearbox, heavy duty DC motor and base have been designed into one, with no separate parts for strong structure and easy installation.

SUPPLIED ITEMS

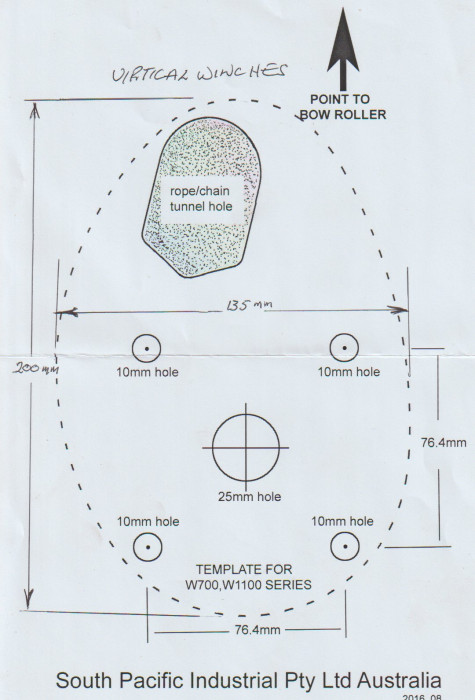

Up/down switch, Solenoid, Circuit breaker, Hardware, Template, User manual

SPECIFICATION
- Comparable Model : 1000W

- Operating Voltage : 12V only

- Weight : VA1000(7kg/15.4lb), VA1000C(8kg/17.7lb)
,
- Max. Working Load : 450kg(1000lb)

- Typical Working Load : 85kg(188lb)

- Retrieval Speed : 18m(60ft)/min

- Pay-Out Speed : 22m(73ft)/min

- Current Draw (Typical) : 32A(12V)

- Motor Type / Efficiency : permanent magnet / 82%

- Motor Wattage I/O : 1100/450 W

- Gear Type / Efficiency : spur gear / 92%~98%

- Suit Chain Size : 8mm short link

- Suit Rope Size : 12, 14mm (selectable)

- Suit Deck Thickness : 3mm~60mm

FEATURES
------------------
- Efficient spur gears, low current draw, high output power

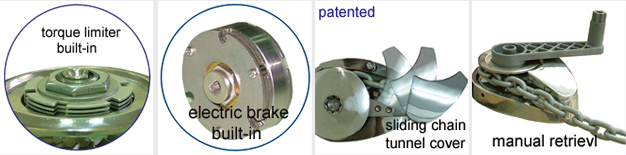

- A torque limiter to deliver smoother operation and greater reliability

- Efficient heavy duty DC motor produce less heat

- Stainless steel Gypsy takes both rope and chain

- Capstan and Gypsy are able to be operated separately

- Compact one-piece unit for easy installation

- Manual retrieval capable
