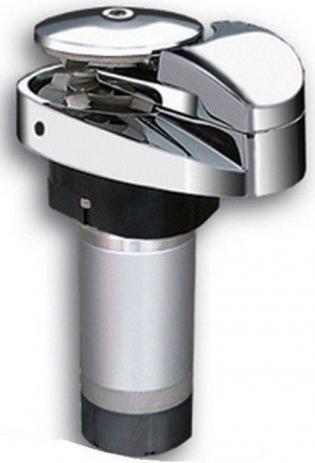

South Pacific VA1000 - Virtical Winch

Details:

The VA1000 is made of a marine-grade aluminium alloy with a powder coated finish to ensure corrosion resistance.

SUPPLIED ITEMS

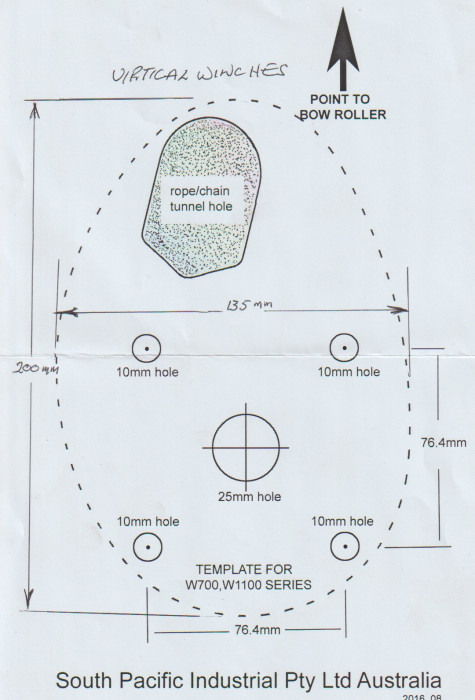

Up/down switch, Solenoid, Circuit breaker, Hardware, Template, User manual

SPECIFICATION
- Comparable Model : 1000W
- Operating Voltage : 12V only

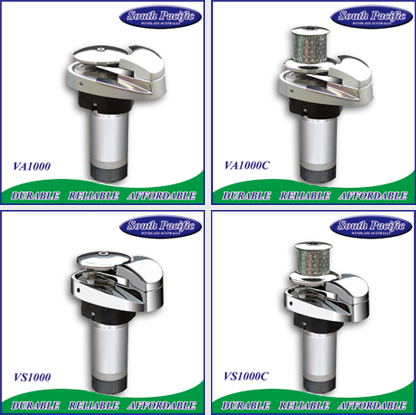

- Weight : VA1000(7kg/15.4lb), VA1000C(8kg/17.7lb),
- Max. Working Load : 450kg(1000lb)
- Typical Working Load : 85kg(188lb)
- Retrieval Speed : 18m(60ft)/min
- Pay-Out Speed : 22m(73ft)/min
- Current Draw (Typical) : 32A(12V)
- Motor Type / Efficiency : permanent magnet / 82%
- Motor Wattage I/O : 1100/450 W
- Gear Type / Efficiency : spur gear / 92%~98%
- Suit Chain Size, 8mm short link
- Suit Rope Size : 12, 14mm (selectable)
- Suit Deck Thickness : 3mm~60mm

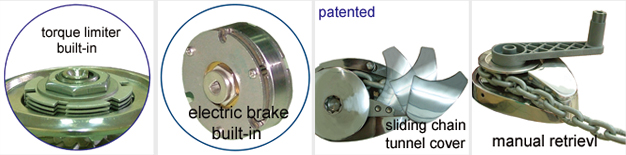

FEATURES
- Efficient spur gears, low current draw, high output power
- Stainless steel Gypsy takes both rope and chain
- Compact one-piece unit for easy installation
- Manual retrieval capable

3 years warranty.
