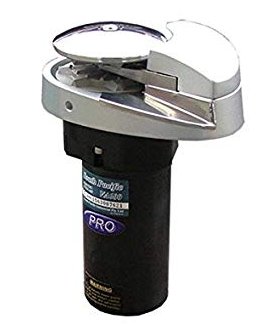

South Pacific VS1000 - Virtical Winches

Click Image to Enlarge

$1,599.95 $1,439.00

Product Description

Vertical Windlasses, V series POWER SAVING
PRO VS1000 Stainless steel base,

The metal gearbox, heavy duty DC motor and base have been designed into one, with no separate parts for
strong structure and easy installation.

$30.00 freight Aust. wide


PRO VS1000 Stainless steel base,

- Operating Voltage : 12V only

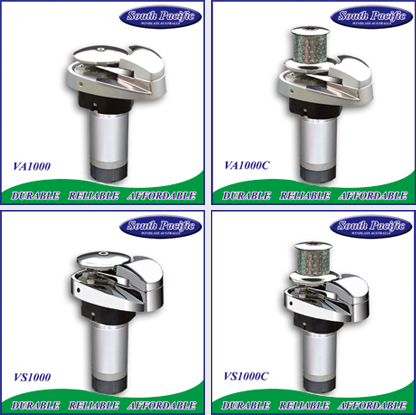

- Weight : VA1000(7kg/15.4lb), VA1000C(8kg/17.7lb), VS1000(9.5kg/21lb), VS1000C(10kg/22lb)
- Max. Working Load : 450kg(1000lb)
- Typical Working Load : 85kg(188lb)
- Retrieval Speed : 18m(60ft)/min
- Pay-Out Speed : 22m(73ft)/min
- Current Draw (Typical) : 32A(12V)
- Motor Wattage I/O : 1100/450 W
- Suit Chain Size :, 8mm short link
- Suit Rope Size : 12, 14mm (selectable)
- Suit Deck Thickness : 3mm~60mm

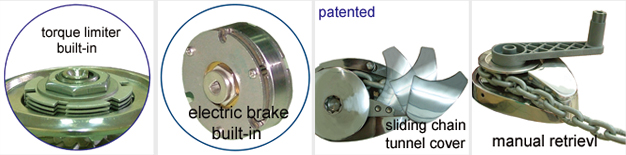

A torque limiter to deliver smoother operation and greater reliability
Stainless steel Gypsy takes both rope and chain
Capstan and Gypsy are able to be operated separately
Compact one-piece unit for easy installation
Manual retrieval capable

Up/down switch, Solenoid, Circuit breaker, Hardware, Template, User manual

When you deal with Precision Marine you get personalized service where you can email or phone us direct before purchase and speak to someone who knows.

Additional Product Information

Download PDF
