250cc Sports by Motoworks

Click Image to Enlarge

Product Description

NEW Design from MOTOWORKS

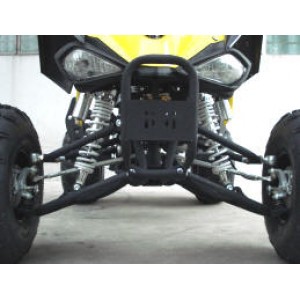

250CC 'SPORTS' ATV QUAD

NOTE. Quoted price is ex Melb warehouse, in crate as imported..
Shipping, final assembly and test run is extra.

*Freighted, fully assembled, test run and
ex. Precision Marine shop. $2199.00

250CC SHINERAY ENGINE~!!
* Headlight System & Rear Brake Light
* METAL PETROL TANK
* Governor (Speed Limiter)
* ELECTRIC START + INDICATORS
* FRONT Drum Brakes + REAR Hydraulic Brakes
* 4 SPEED MANUAL+ REVERSE GEAR (5 GEARS IN TOTAL)

*One of the kind CHAIN ROLLER WITH GUIDE System

Size:

Dimensions (LxWxH) BOX : 1470 x 840 x 730 (mm)
BIKE: 1850 x 1070 x 1040 (mm)
Seat Height : 750mm
Weight Gross: 155kg Net: 135kg

Details:

Engine 250CC Air-cooled SHINERAY 4 Stroke, Single Cylinder
Starting Method Electric Start
Fuel Tank Capacity 4.0L (METAL TANK + CAP)
Fuel Straight Unleaded Petrol

Transmission 4 FORWARD GEARS & REVERSE
Drive System Heavy Duty Chain
Throttle Control Thumb throttle (Screw retractable to limit max throttle)
Front Brakes Drum Brakes
Rear Brakes Drilled Disc HYDRAULIC BRAKE

Maximum Speed 80km/hr+ (Depends upon road conditions & rider weight)
Maximum Load 150kg
Rider Capacity 1 Person

Suspension Front : Dual Independence Heavy Duty Rear : Heavy Duty rear shock
Front & Rear Wheel Front : AT 19 x 7 - 8 Rear : AT 18 x 9.5 - 8
Ignition Mode CDI
