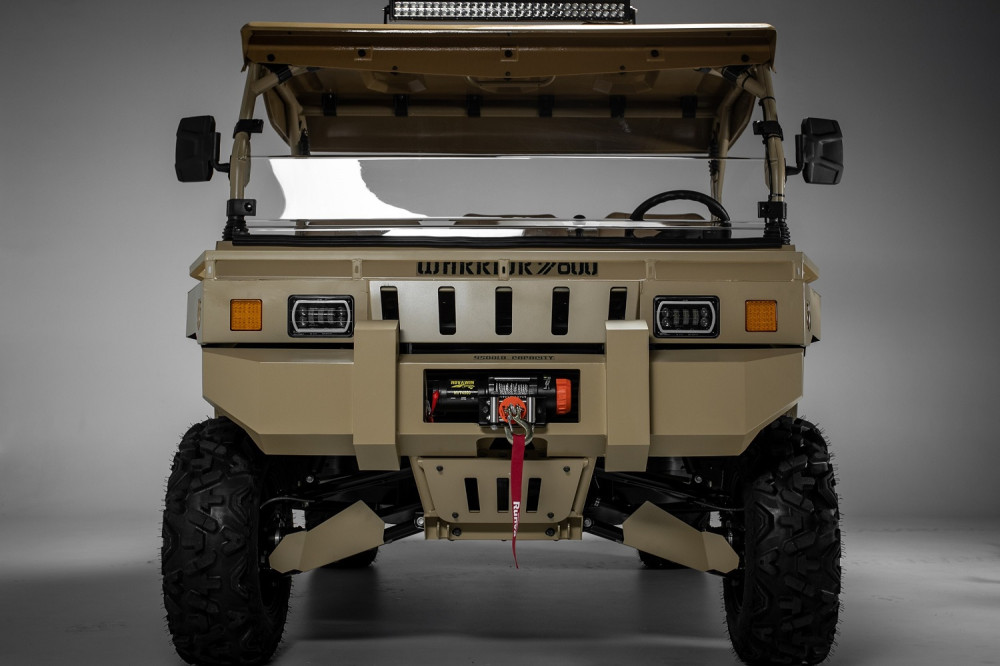

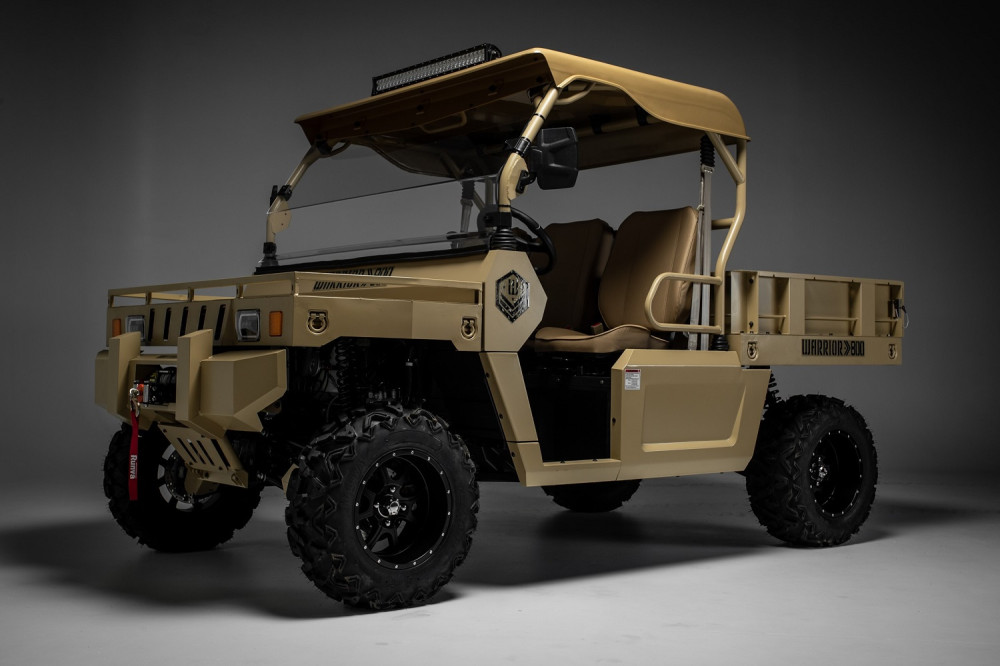

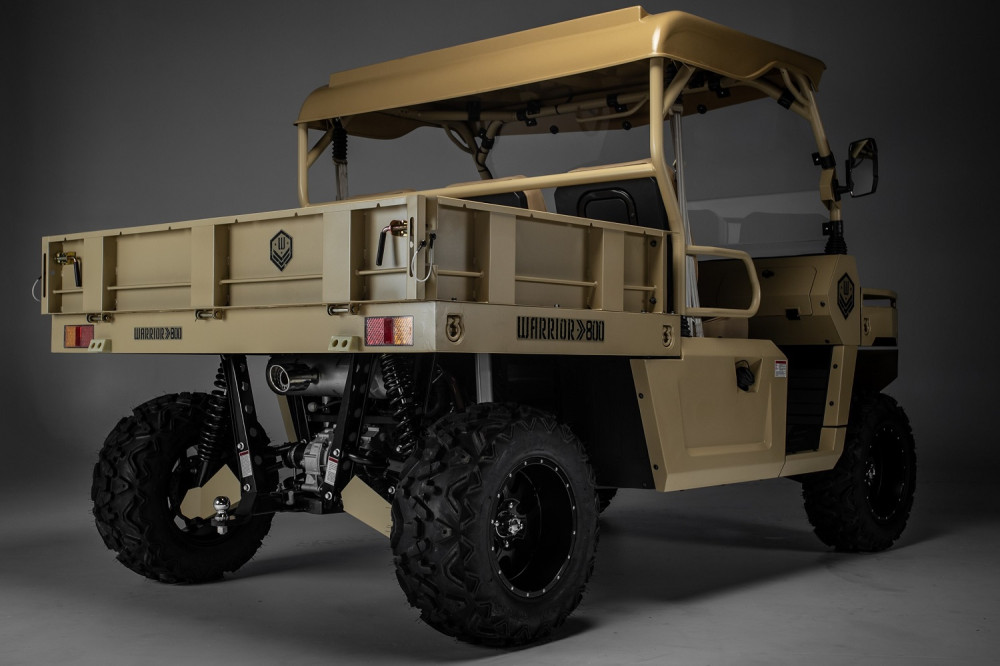

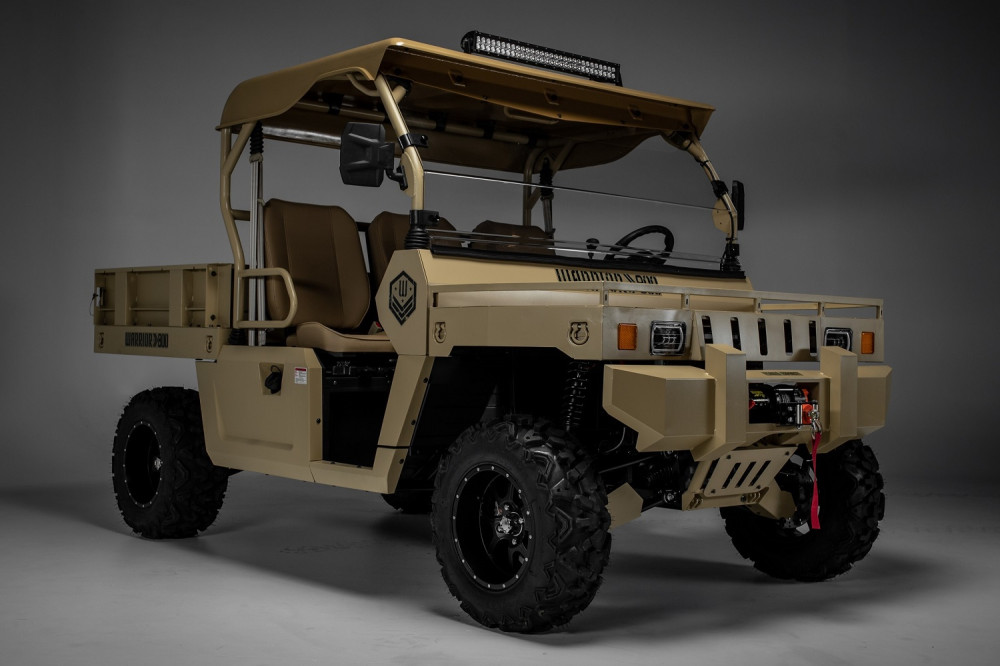

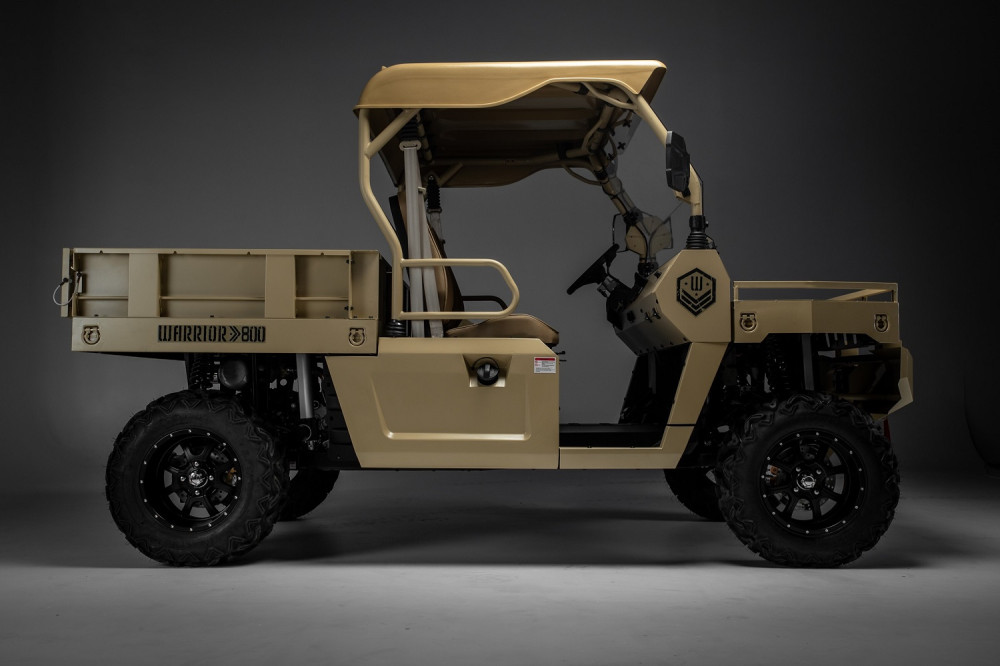

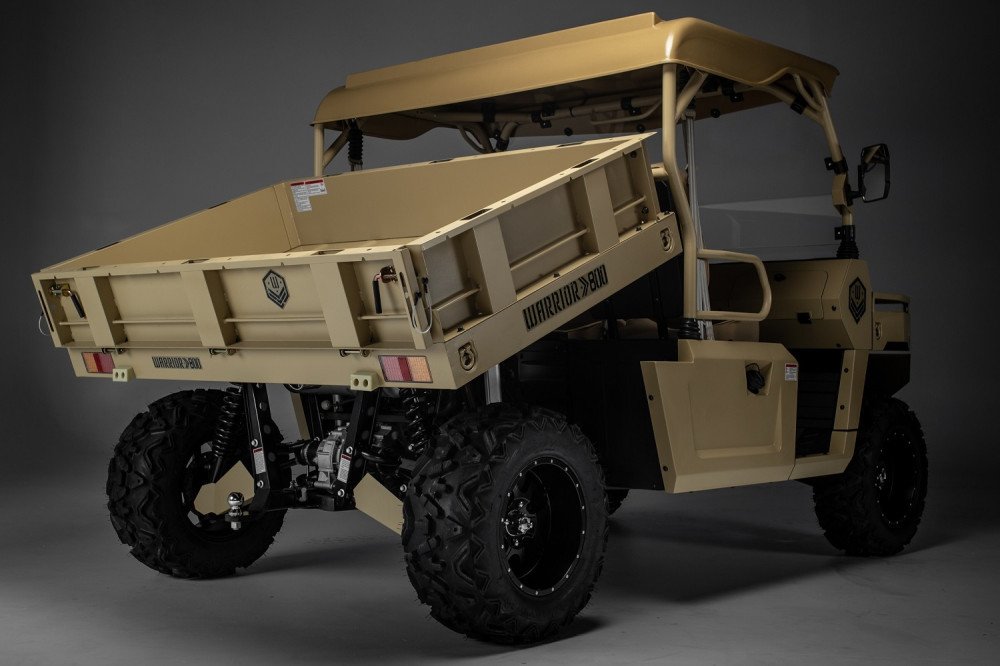

Odes Warrior MV800

Click Image to Enlarge


Product Description

The Odes Military Warrior MV 800 3 seater is like no other side by side vehicle on the market.

The spacious cabin is designed for both driver and passenger comfort with individual adjustable seats, adjustable steering wheel and walk through cabin.

These UTV’s have a wide range of uses such as farming, shows and events, commercially for business and recreation on private property among many others.

The buggy’s wider wheel base gives you more stability when 4WDing over rugged terrain.

Pricing is ex importer and freight may occur.


The Odes brand is co-owned by 2 companies.

The partners are based in the US and Asia. Together they bring a unique and quality product to the UTV market.

The partnership was established in 2010 however the manufacturer has been producing Off Road Vehicles since 2003.

Odes are constantly innovating and bringing new technology to the Military Side by Side ranges.

At WingMan MG we are big believers in you getting value for your money and there is a lot of value in the Odes Military Warrior 800.

Our standard features also include:

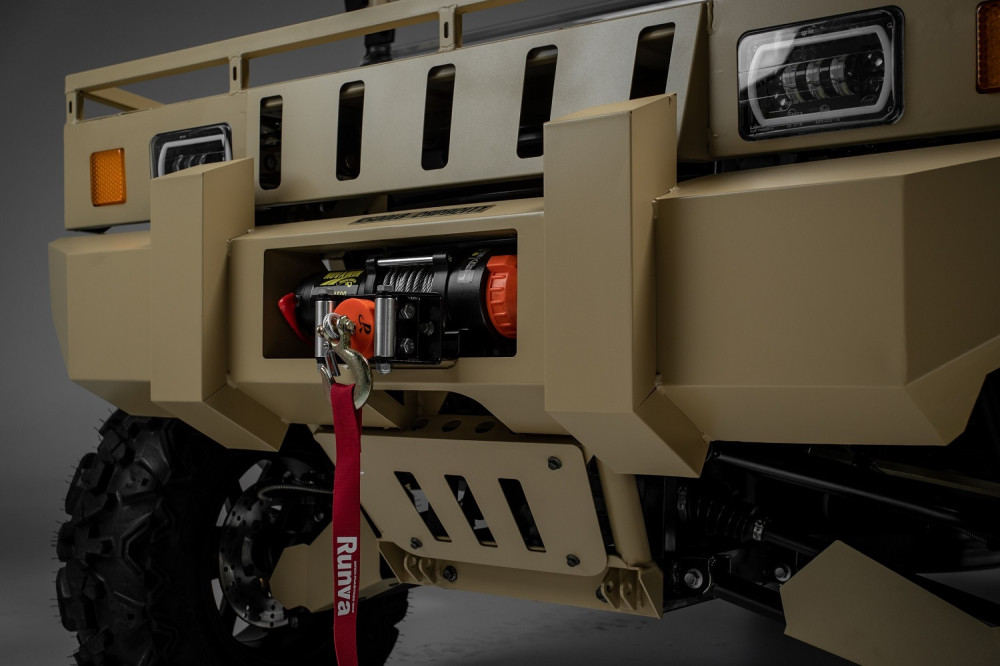

• Winch – 4500 pound
• Removable Windscreen
• Roof LED Light Bar
• Deep Dish Alloy Rims with Mudder Tyres
• Electronic Power Steering
• Electric Tip Tray

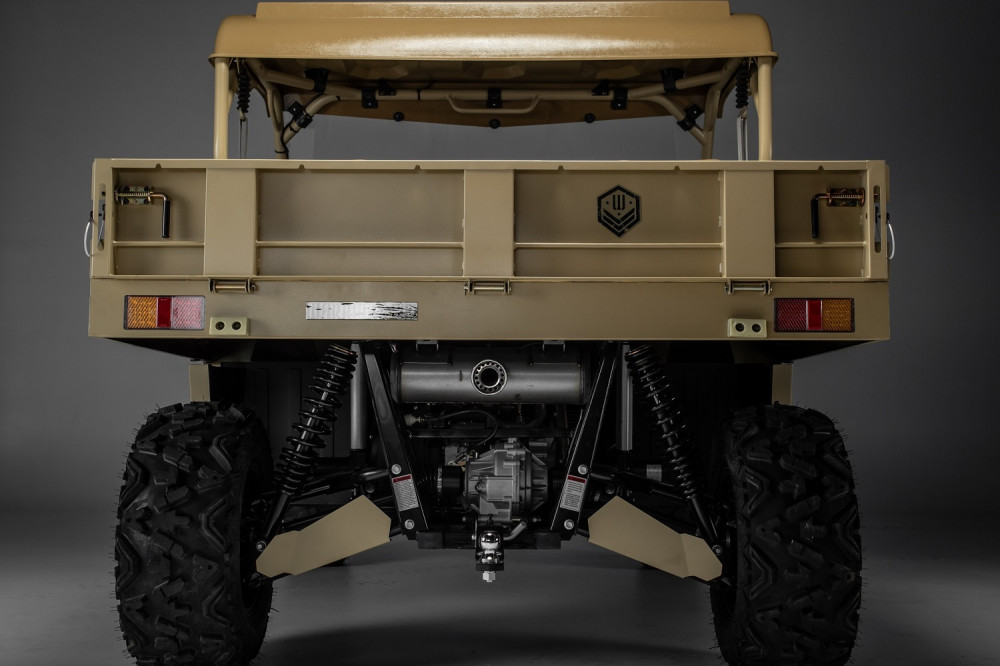

• Removable Tow Bar
ODES Military Warrior MV 800 Specifications
Military 800 (3 Seat)
Engine Make ODES Industries
Type Four-Stroke, V-Twin Cylinders, 8 Valve, Water & Oil Cooled
Displacement 800 cc
Horsepower /Rated Power 60 HP : 7.5kw/7500 r/min
Fuel Capacity 30L
Transmission Automatic CVT (Canadian CV TECH)
Top Speed In high gear 85km per/hr
In Reverse gear 25km per/hr
Wheels, Drive System 2WD / 4WD Selectable Front & Rear Diff Locks
Engine starting Electric Push Button
Gear Selection L+H+N+R+P
Brake Front / Rear Dual Ventilated Hydraulic Disc
Braking Distance <5m
Steering Electronic Power Steering
Suspension Front Independent Dual A-Arm
Rear Independent Dual A-Arm
Dimensions L x W x H 3160 x 1700 x 1980cm
Front Tread Centers 1640cm
Rear Tread Centers 1630cm
Wheelbase 2095cm
Ground Clearance 300cm
Turning Radius <6m
Towing Capacity <500kg
Front Cargo Bed Dimensions / Load Capacity 750 x 1435 x 150mm / 300kg
Fuel Consumption On Road <10L per 100km
Off Road <12L per 100km
Weight ( unloaded ) 780kg
Cargo Bed Width x Length 1250 x 1435mm
Bed Deep 340mm
Cargo Bed Load <300kg
Sound Level, at Operator’s Ear db.( A) <50DB
Tires Front 27 X 9 X 14 – 6 Ply
Rear 27 x 11 x 14 – 6 Ply
Body Color Desert Kahkey
