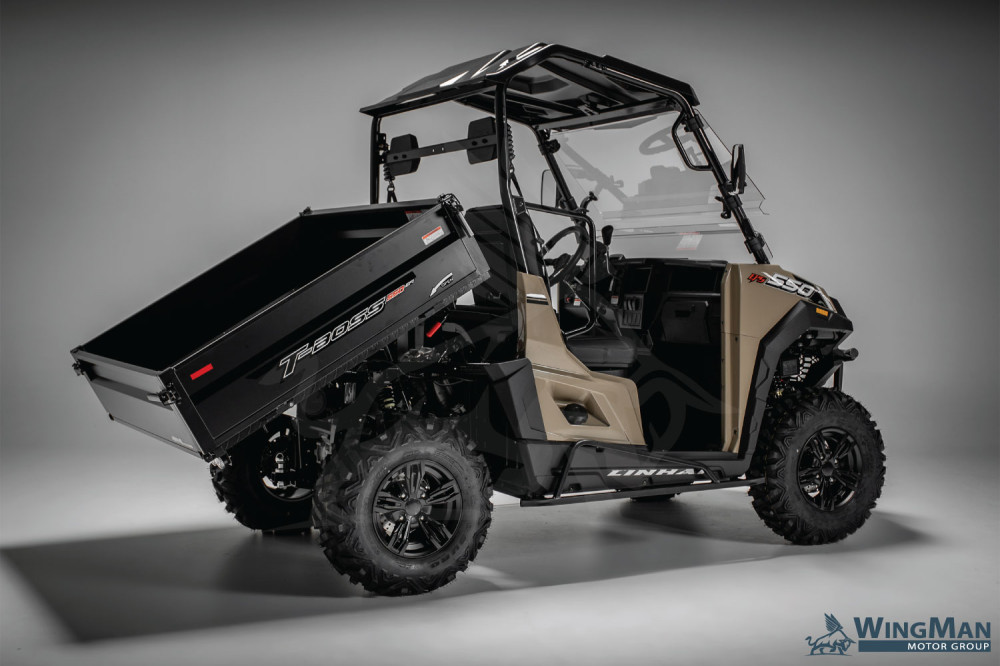

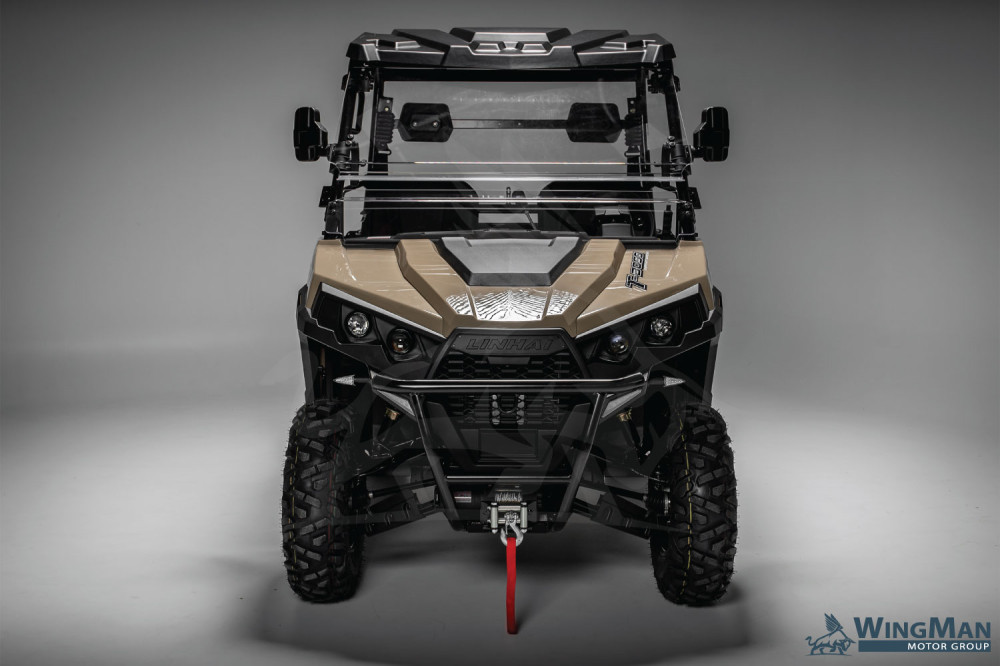

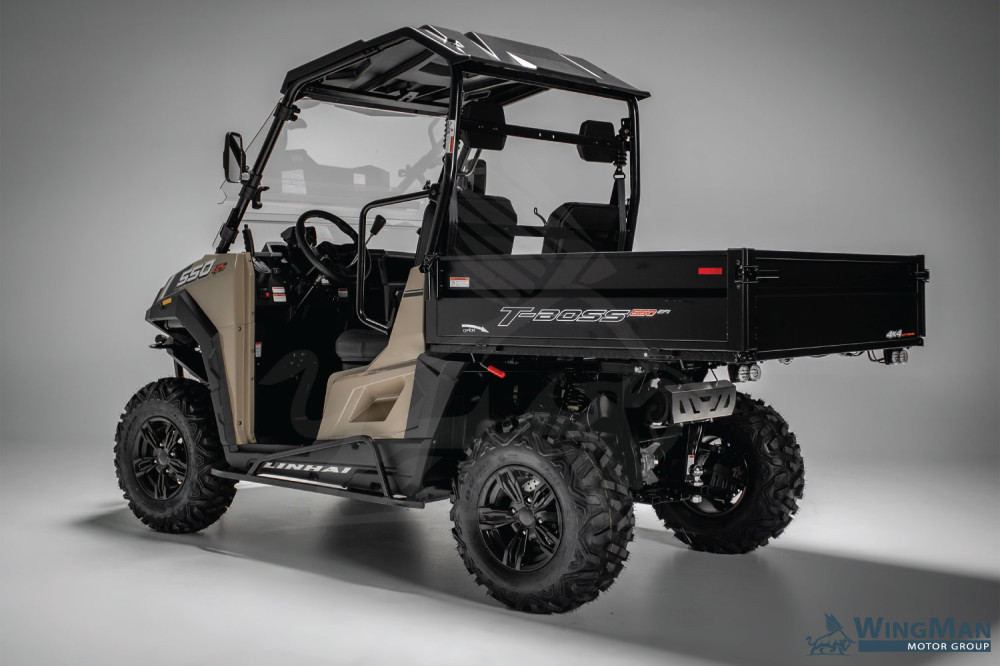

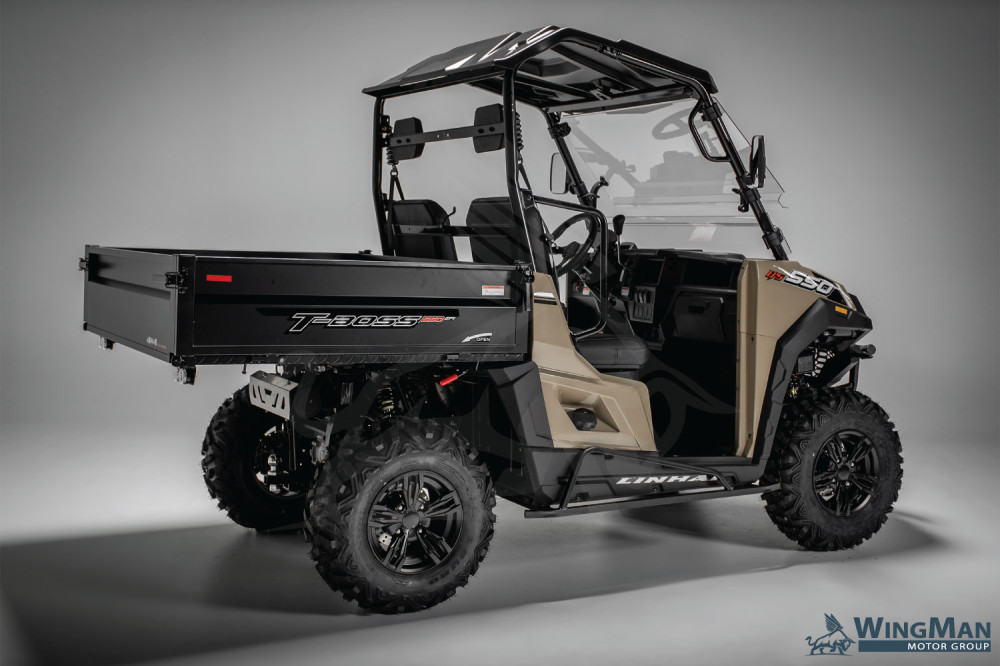

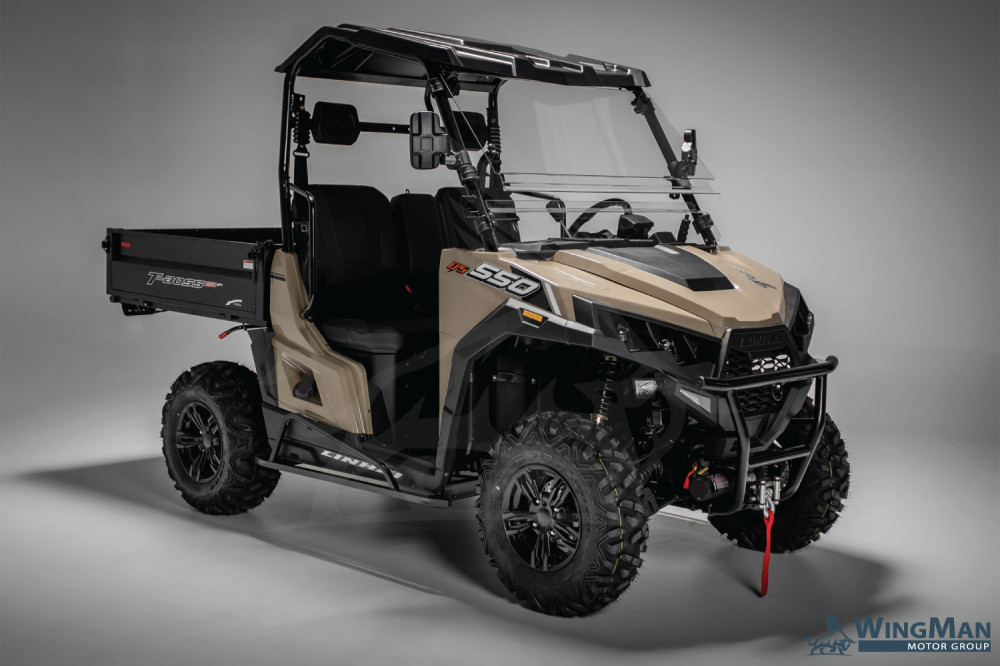

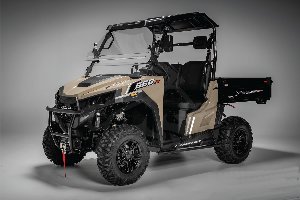

Linhai T-Boss 550

Click Image to Enlarge

$12,890.00

Product Description

LINHAI GROUP is a publicly listed enterprise founded in 1956.

For more than 50 years, Linhai has been the industry leader in the development and production of 70cc to 1000cc engines, ATV’s, UTV’s, Motorcycles and Power Machinery.

LINHAI is a modern, first class and high tech manufacturing enterprise with 200 world patents producing some of the world’s leading All Terrain Vehicles.

Their four major manufacturing facilities have 40 production lines with an output of more than 10,000 units per month.

Linhai has participated in the formulation of internationally recognised All Terrain Vehicle standards.

LINHAI is now sold in more than 80 countries covering all continents and is one of the largest globally recognised vehicle and machinery equipment brands.

Details:

Property owners that have land with difficult terrain prefer the LINHAI T-Boss 550.

Compared to the LINHAI Archon 400, the LINHAI T-Boss 550 has:

– Additional 6.71 horsepower

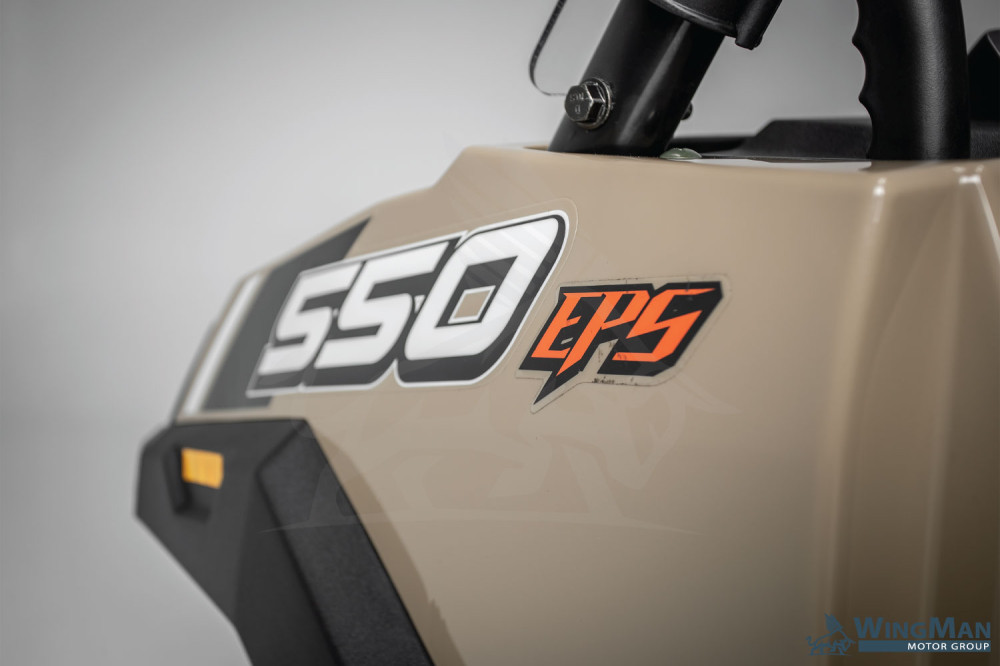

– Power steering
– Steel tray – 190mm longer

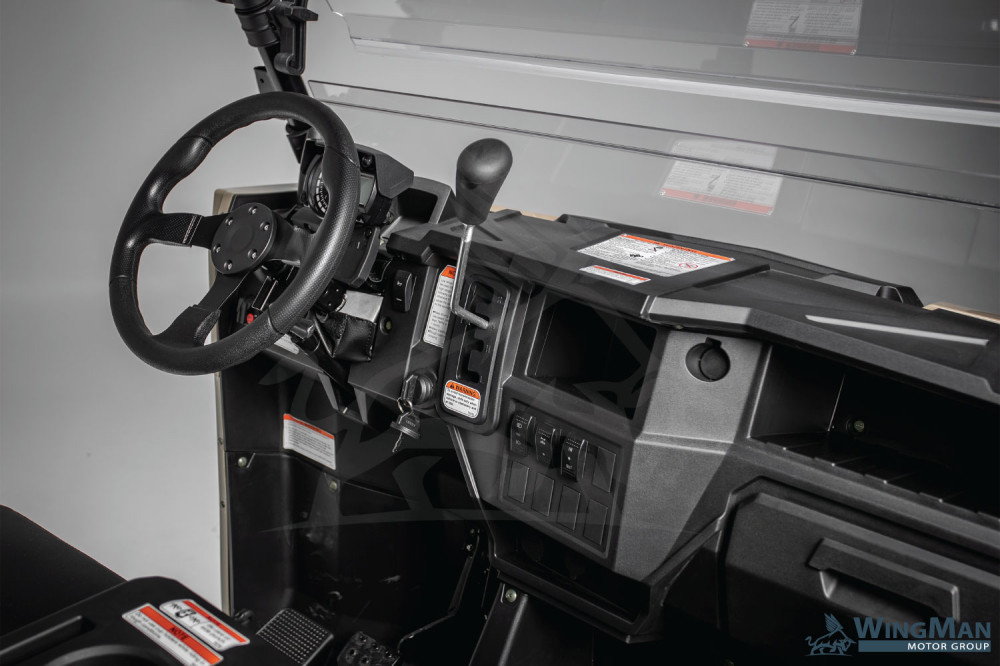

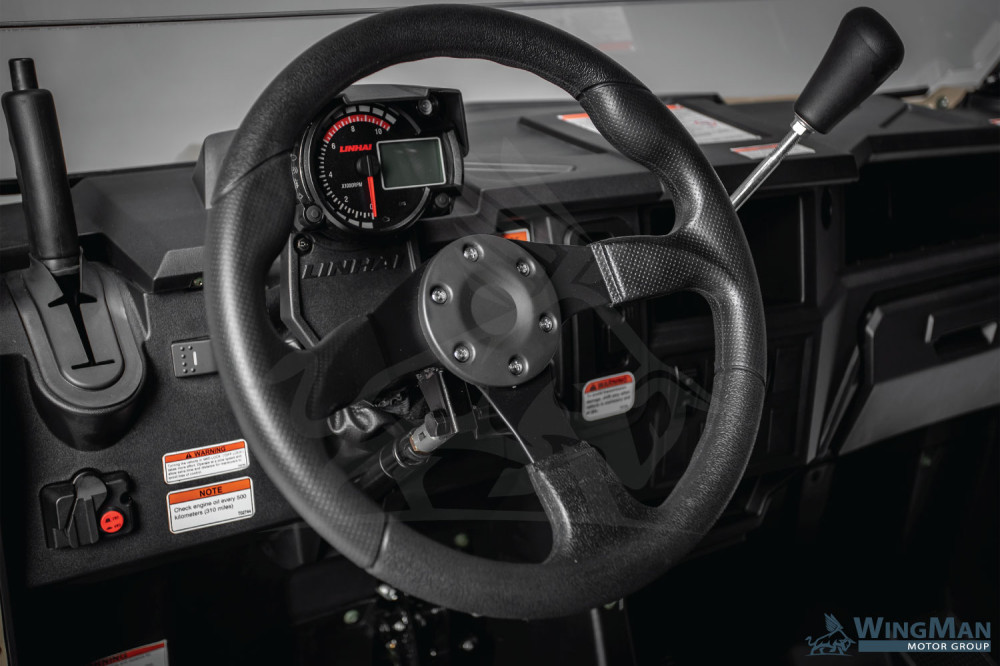

The comfortable, modern and stylish interior gives you plenty of space to move in and out of the buggy.

LINHAI T-BOSS 550 Specifications

Technical parameter T-BOSS 550
Size: L×W×H 2730×1460×1885 mm
Full length including extended tray – 3100mm
Wheelbase 1855 mm
Ground clearance 280 mm
Dry weight ............... 525 kg
Loading capacity (Combined Rider & Payload) ............ 400 kg
Fuel Tank Capacity ........... 26 L

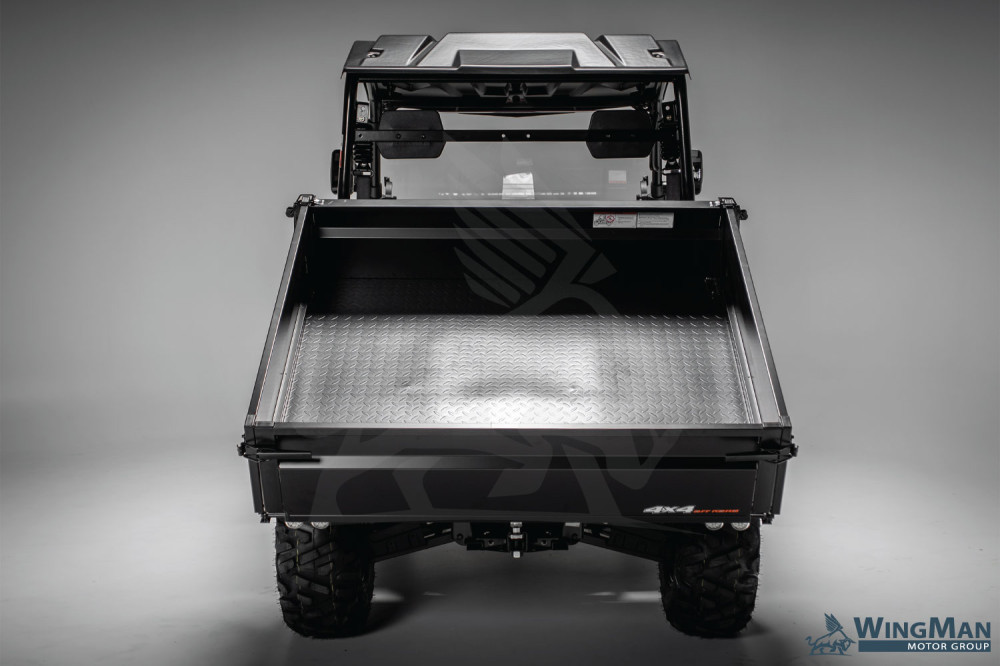

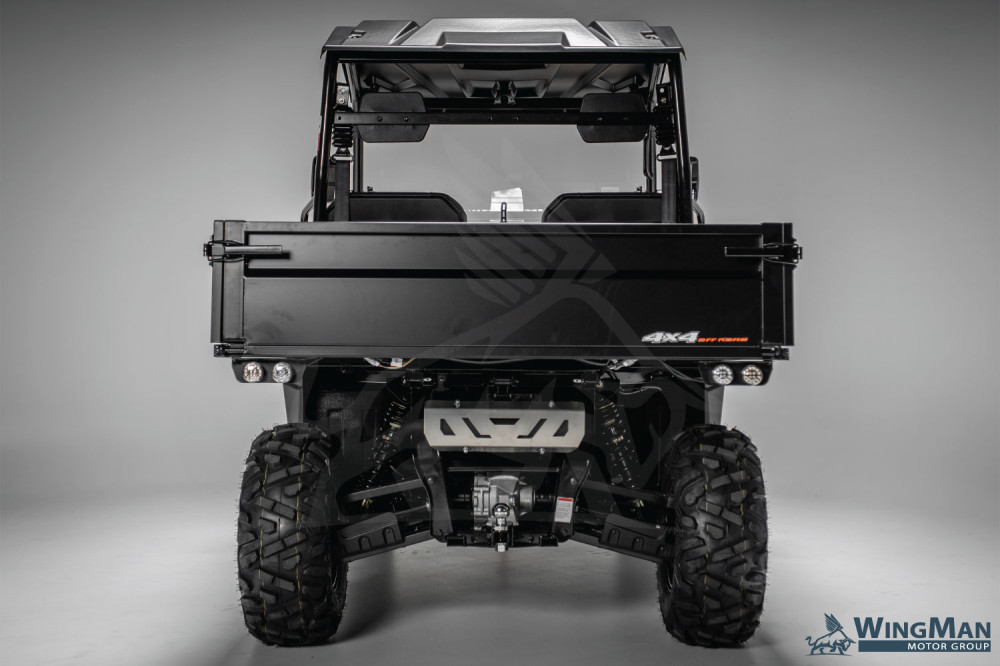

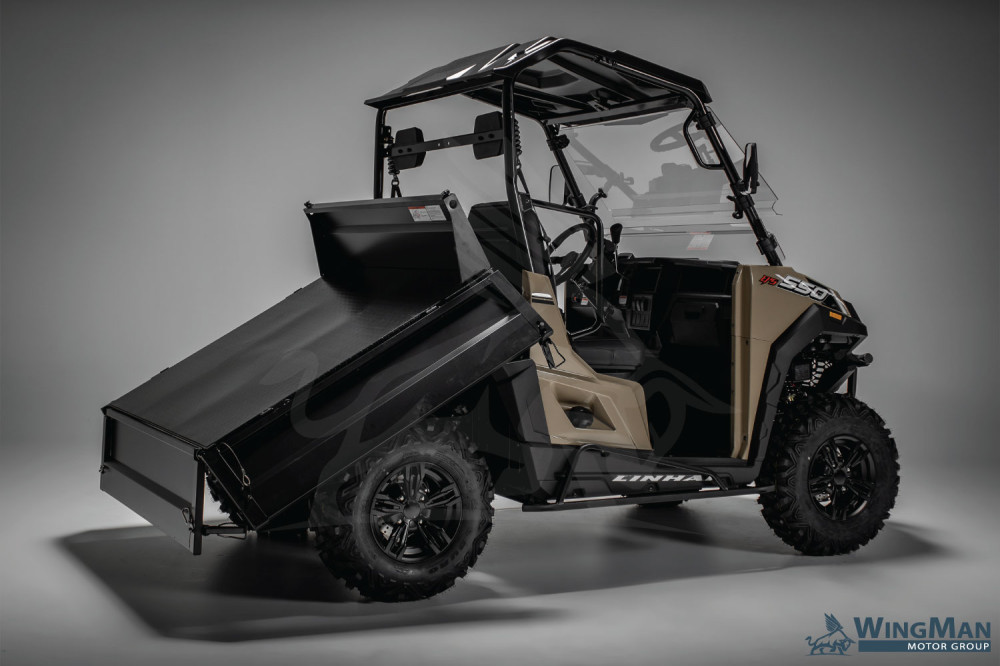

Rear Tray Dimensions ............ 1130mm x 1380mm x 280mm
Max speed ........... 70 km/h
Tyre dimensions ............ Front: AT25×8-12
Rear: ...........AT25×10-12
Brake system model ........... Front: Disk brake
Rear:................ Disk brake
Suspension type ................ Front: Twin-A arms independent suspension
Rear:...........Twin-A arms independent suspension

Engine ............. Single cylinder,4 stroke, water cooled,4 valve
Cylinder dimension ........... 493 cc
Bore and Stroke............ 87.5×82 mm
Rated power.......... 24/6500 (kw/r/min)
Max torque ....... 38.8/5500 (Nm/r/min)
Compression Ratio .......... 10.2:1
Fuel system......... EFI
Start type ............. Electric starting
Transmission.......... Automatic L-H-N-R

Wingman pricing as from 11-11-21
