Linhai Electric 50DU

Click Image to Enlarge


Product Description

LINHAI GROUP is a publicly listed enterprise founded in 1956.

For more than 50 years, Linhai has been the industry leader in the development and production of 70cc to 1000cc engines, ATV’s, UTV’s, Motorcycles and Power Machinery.

LINHAI is a modern, first class and high tech manufacturing enterprise with 200 world patents producing some of the world’s leading All Terrain Vehicles.

Their four major manufacturing facilities have 40 production lines with an output of more than 10,000 units per month.

Linhai has participated in the formulation of internationally recognised All Terrain Vehicle standards.

Certifications held by Linhai Group include:

Quality Management System ISO9001: 2008

Measurement Management System ISO10012

Environment Management System ISO14001

European – EEC and CE certificates

US – EPA and CARB certificates

LINHAI is now sold in more than 80 countries covering all continents and is one of the largest globally recognised vehicle and machinery equipment brands.

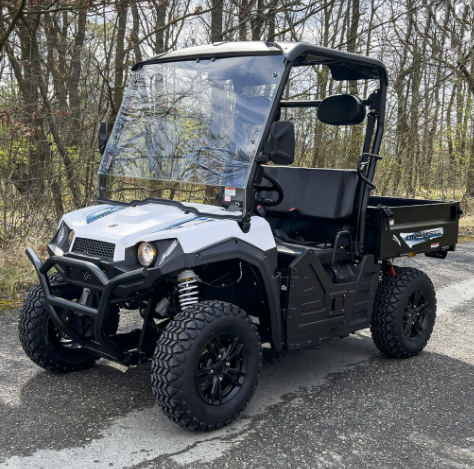

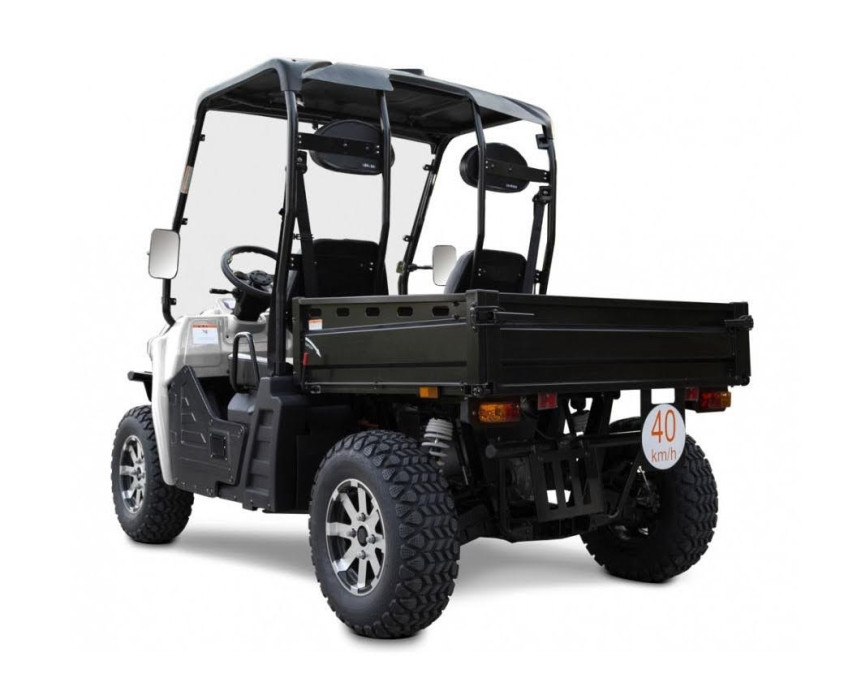

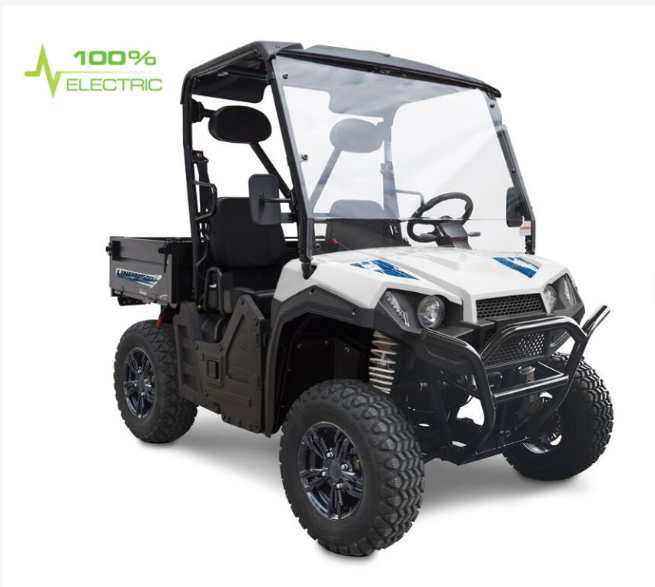

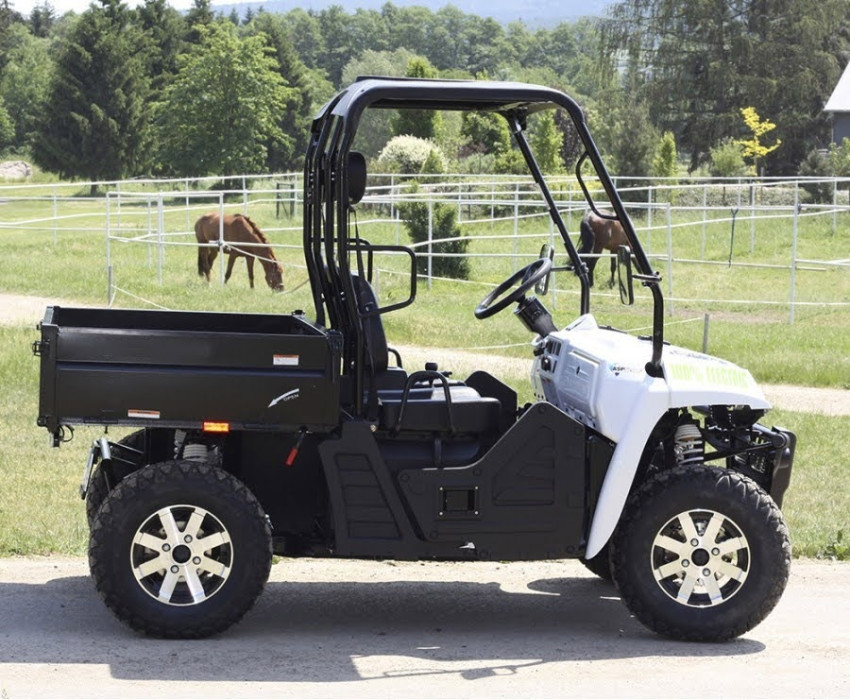

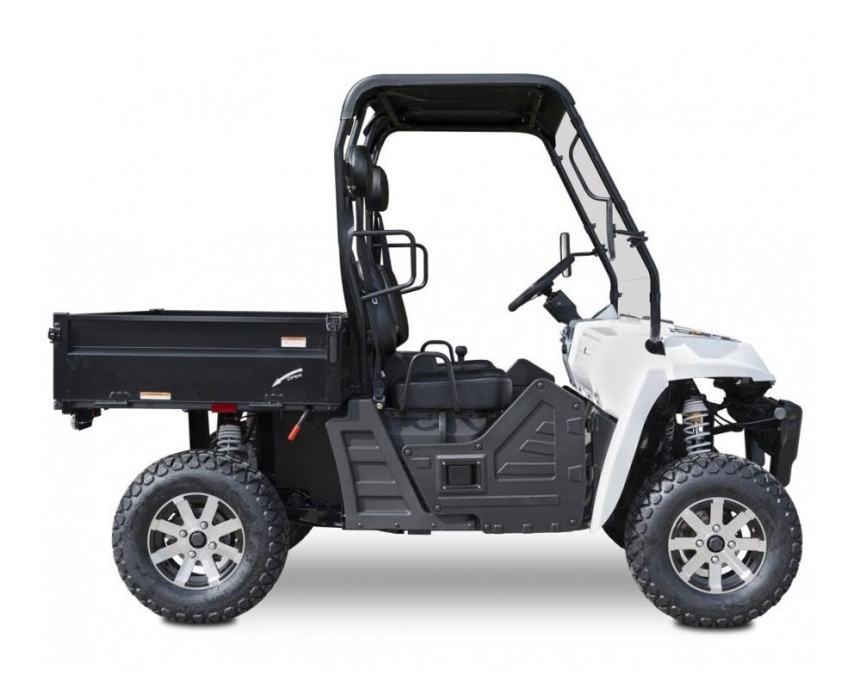

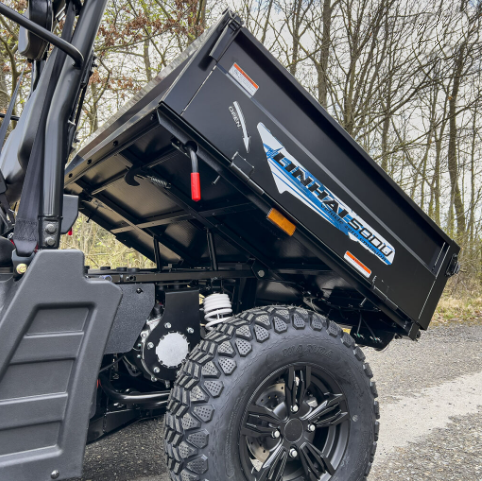

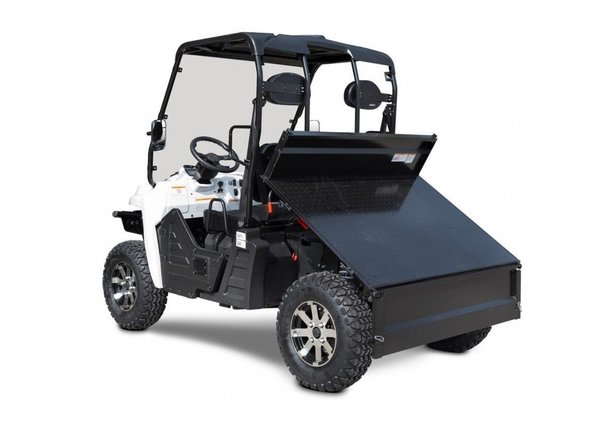

The Linhai 50DU Electric Off Road Buggy produces clean, exhaust free power with impressive torque and responsiveness.

If you are finding yourself torn between petrol and electric vehicle options here are some of the advantages of going green.

• No need for fuel
• No engine oil changes
• Exhaust free
• Able to use indoors
• No noise

Perfect for Golf Courses, Gardening, Indoor events, Festivals, Security patrols, Maintenance Crews and more….
LINHAI Electric 50DU Specifications
Technical parameter LH50DU
Size: L×W×H 2700×1420×1870mm
Wheelbase 1805 mm
Ground clearance 230 mm
Dry weight 676 kg
Loading capacity 300 kg

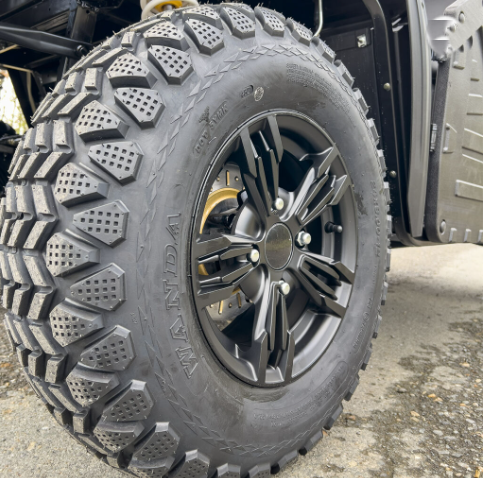

Specification of tire Front?AT24×8-12
Brake system control model Front: Foot brake
Rear: Foot brake
Brake system model Front: Disk brake
Rear: Disk brake
Suspension type Front: McPherson independent suspension
Rear: Twin-A arms independent suspension
Motor type HPQ5-48-18N
Motor model BLDC Brushless AC motor, Electronic driver / Auxiliary brake system
Working voltage 60V
Rated power 5/3000 (kw/r/min)
Max power 10/4200 (kw/r/min)
Rated torgue 18 N.m
Max torgue 80 N.m
Rated rpm 3000 r/min
Max rpm 4200 r/min
Battery type Lead acid battery
Total voltage 60 V
Total capacity 100 Ah
Dimensions for single battery 330×171×214 mm
Charging period 6 h
Max speed >40 km/h
Running distance >80 km
