Linhai Archon 400

Click Image to Enlarge


Product Description

LINHAI GROUP is a publicly listed enterprise founded in 1956.

For more than 50 years, Linhai has been the industry leader in the development and production of 70cc to 1000cc engines, ATV’s, UTV’s, Motorcycles and Power Machinery.

LINHAI is a modern, first class and high tech manufacturing enterprise with 200 world patents producing some of the world’s leading All Terrain Vehicles.

Their four major manufacturing facilities have 40 production lines with an output of more than 10,000 units per month.

Linhai has participated in the formulation of internationally recognised All Terrain Vehicle standards.

LINHAI is now sold in more than 80 countries covering all continents and is one of the largest globally recognised vehicle and machinery equipment brands.

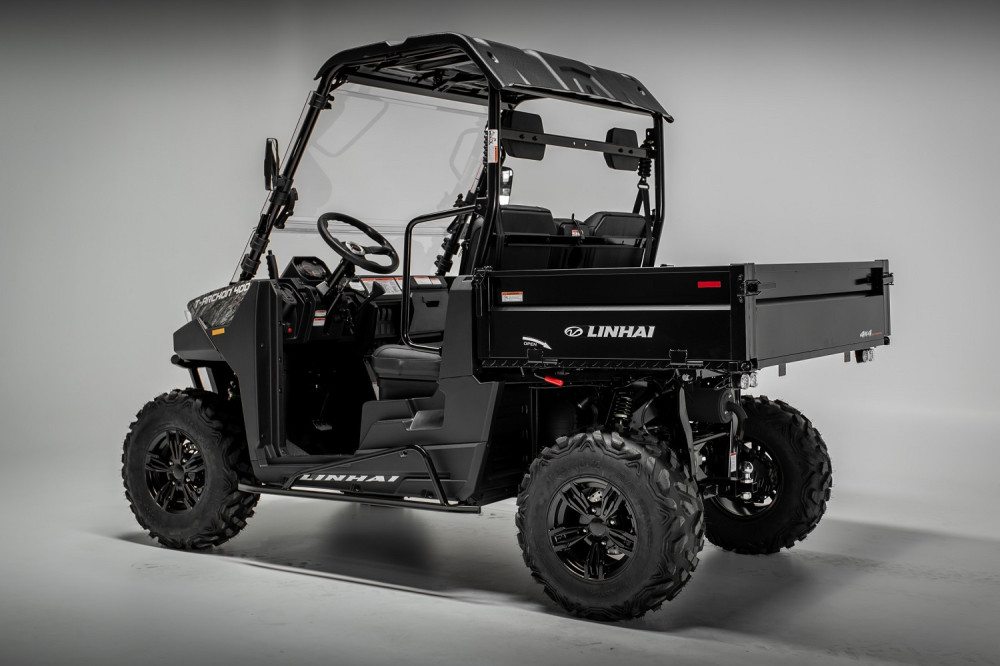

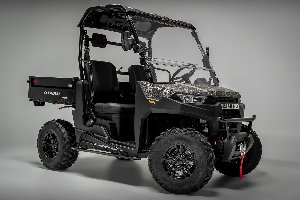

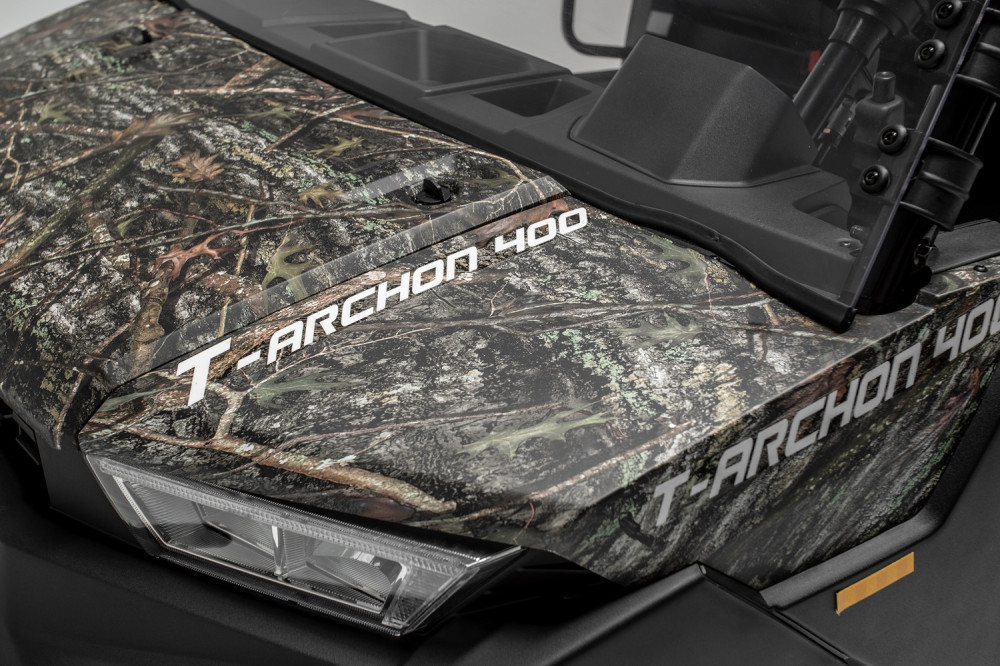

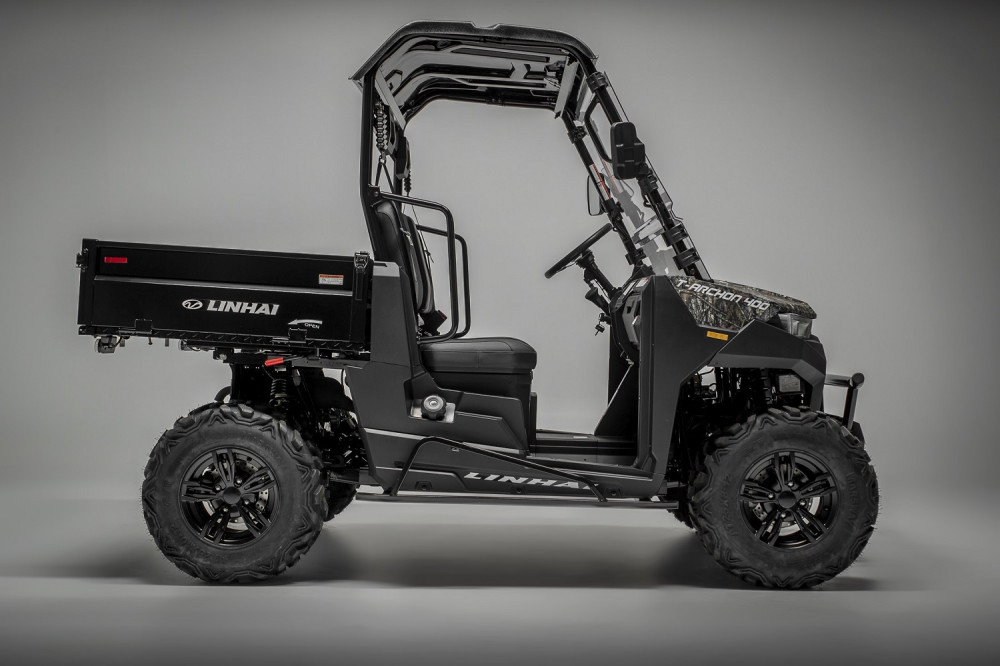

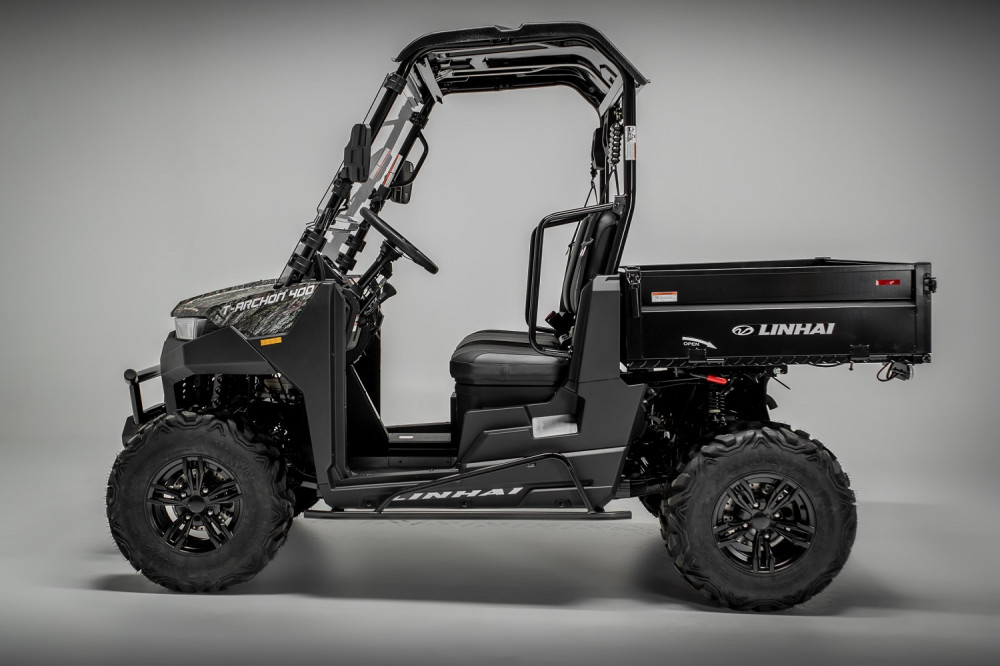

The LINHAI Archon 400 is the perfect all rounder side by side vehicle.
This UTV side by side ticks all the boxes.
Loaded with standard extras normally seen only on other much more expensive vehicles.

Colours available: Blue, Sandstone

Rear differential which allows it to travel over soft surfaces and lawns with-out tearing it up (unlike most other UTV's and ATV's).

Towbar for trailer etc. towing.

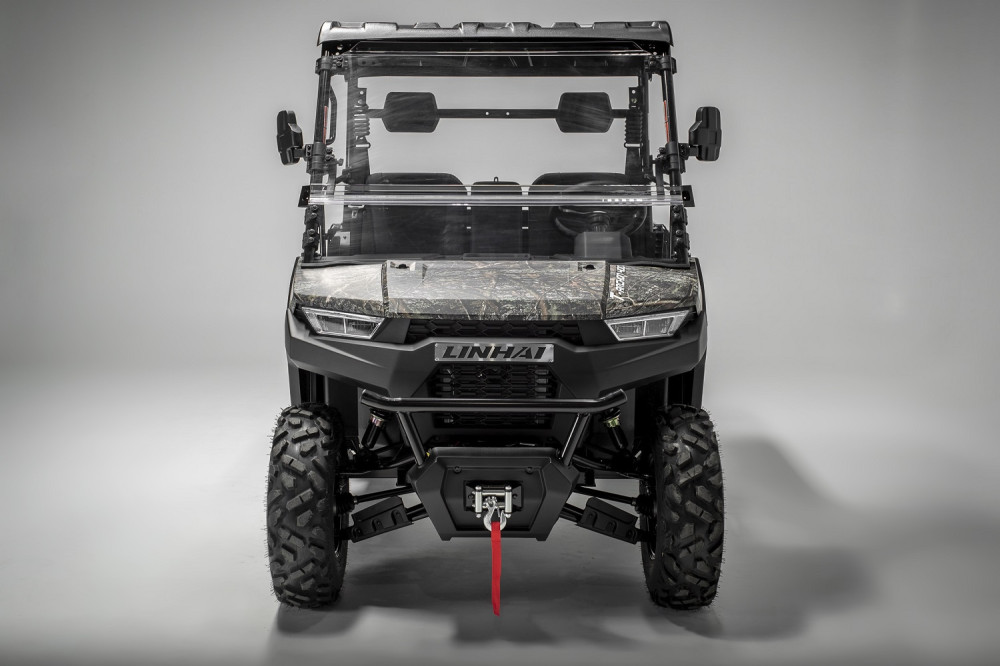

Durable roof with 2 piece wind screen.

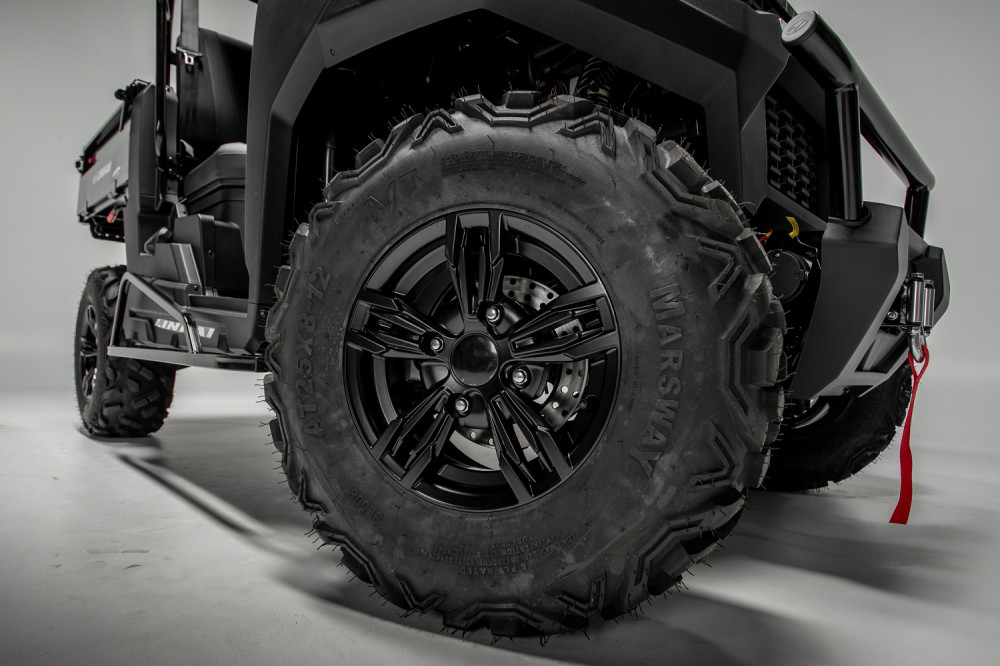

Great looking mag wheels for durability and long life.

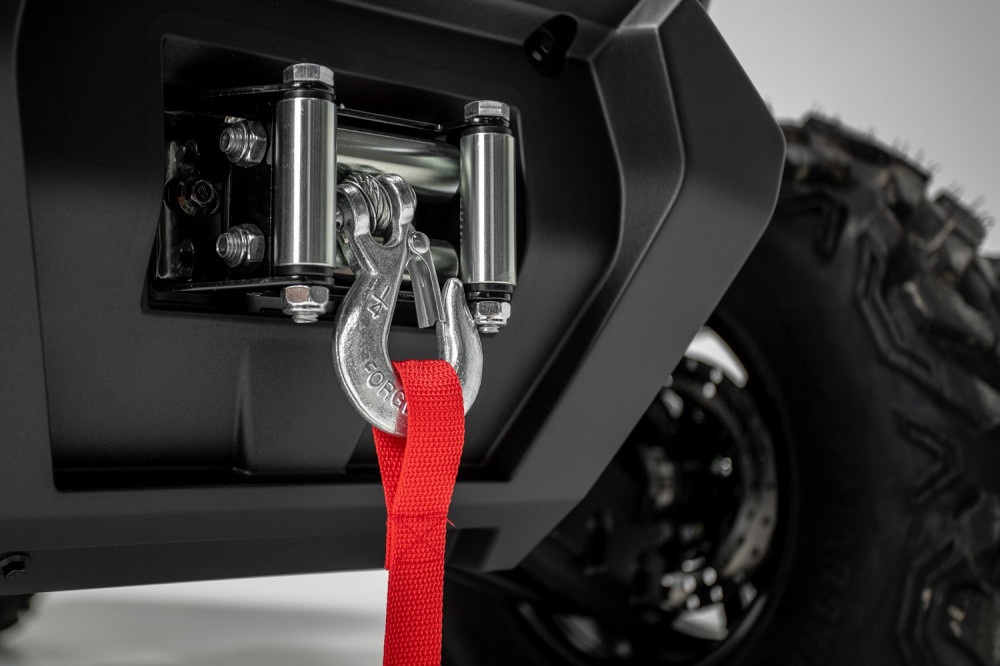

Powerful front winch.

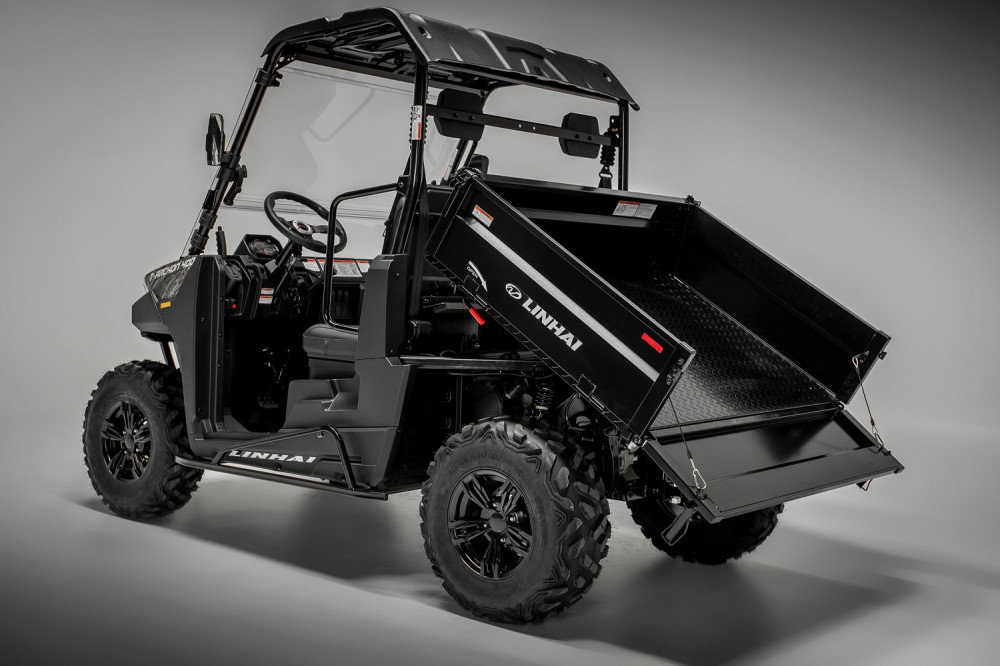

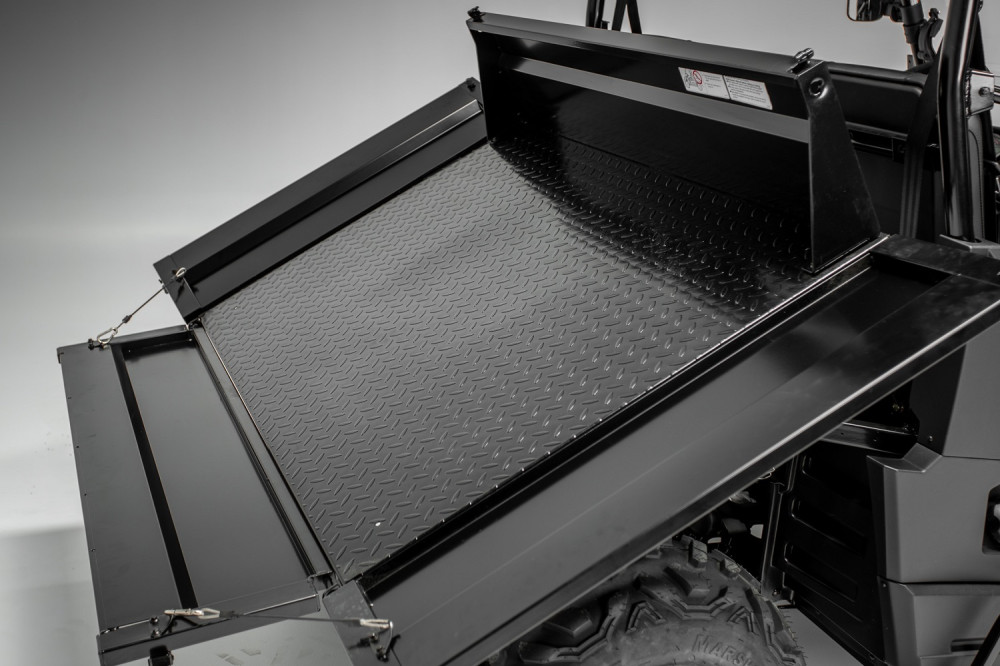

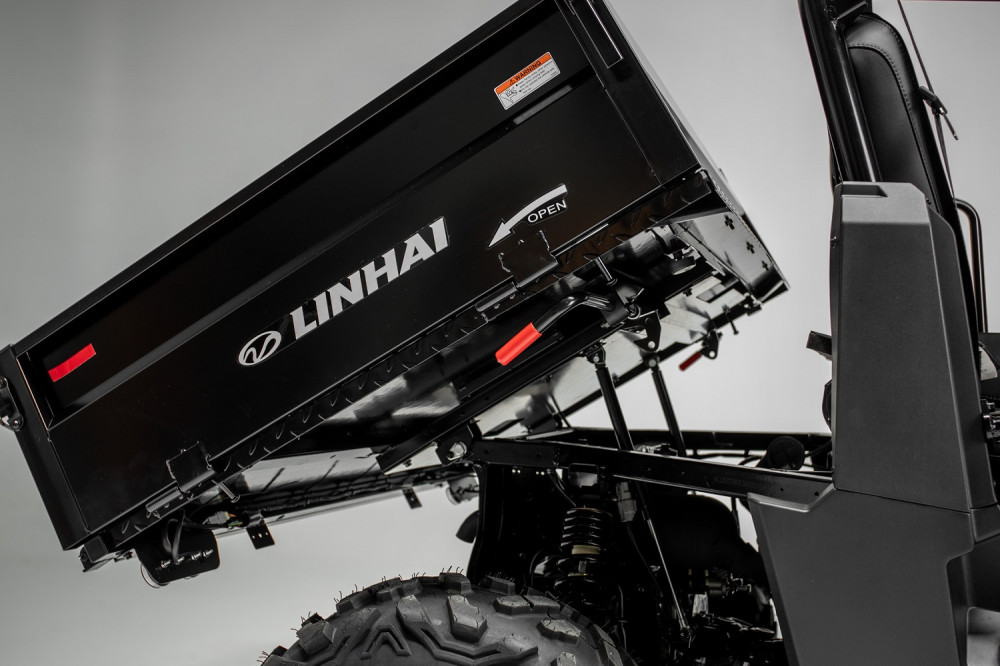

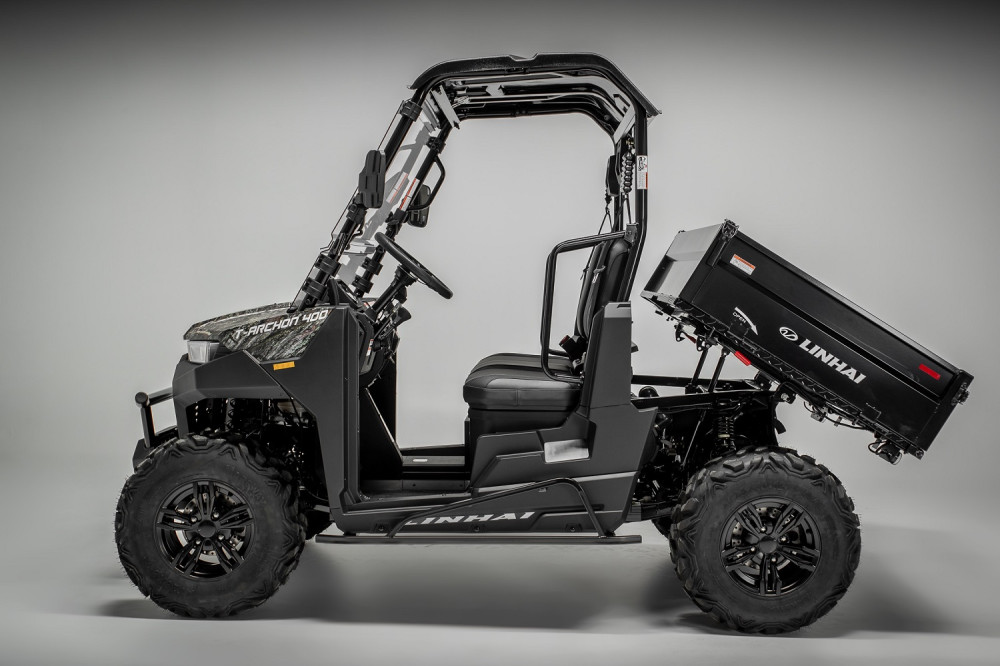

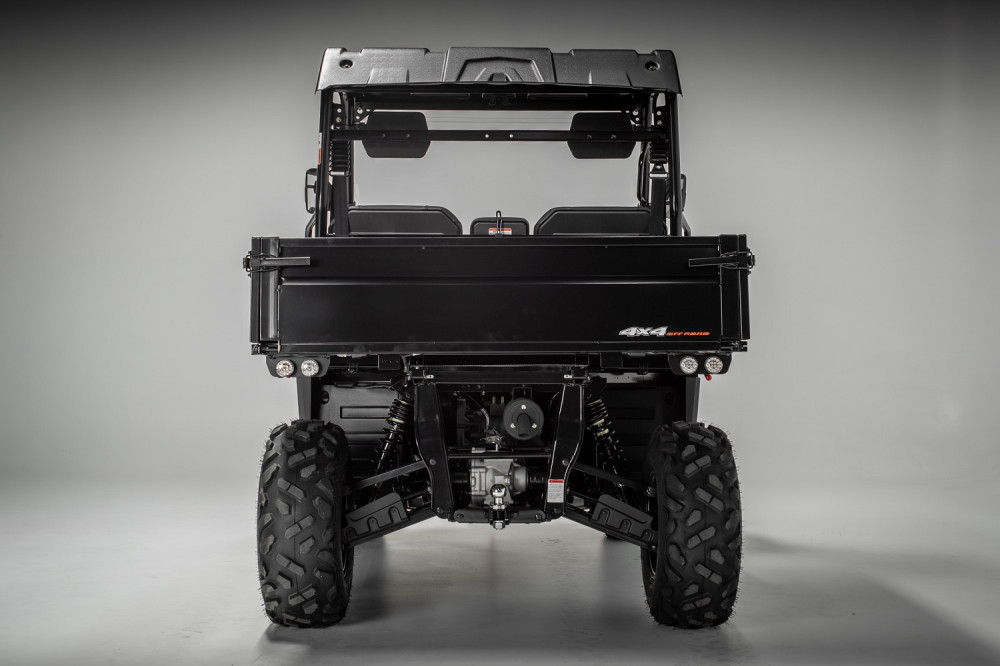

Rear tipping tray constructed from steel and with drop down sides and rear for better access and larger carrying capacity.

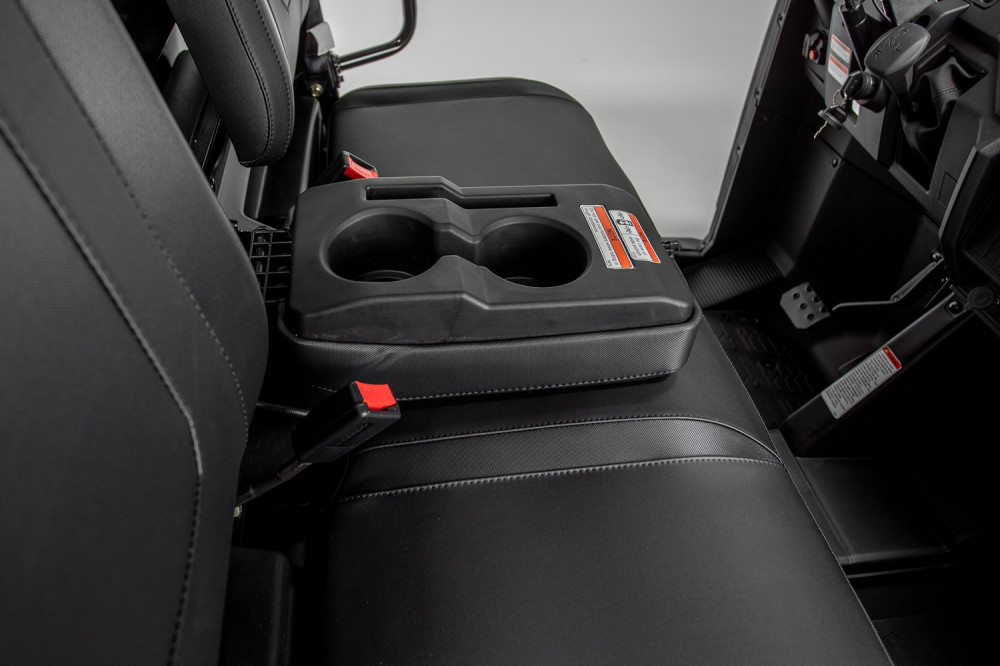

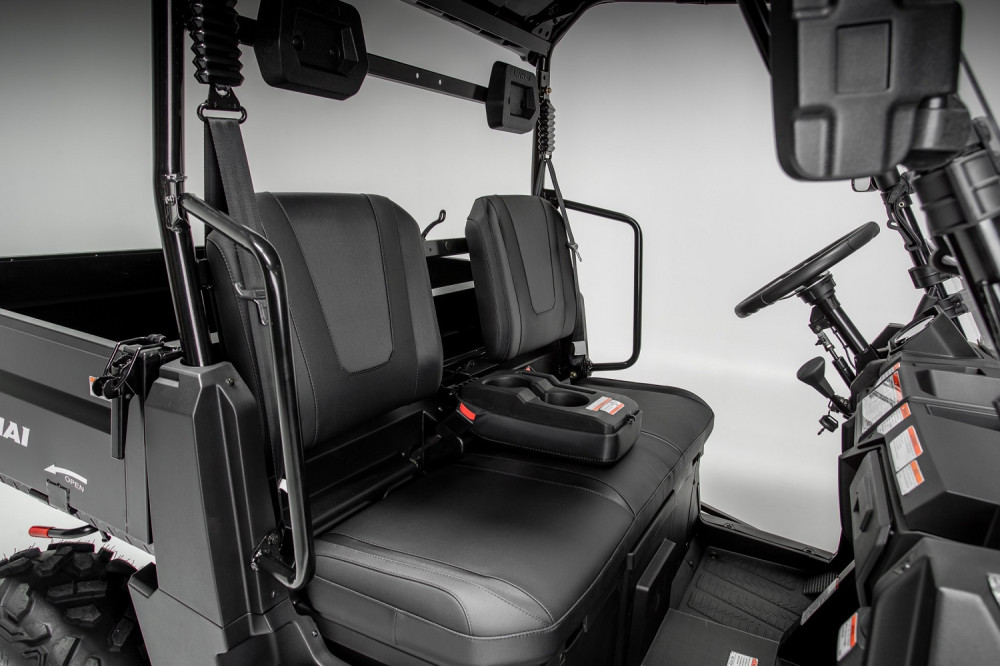

Better designed seating for up to 3 person carry.

Commonly used for transport on rural properties, farms, sporting events and shows however the uses for this versatile buggy are endless.

The spacious interior has plenty of head and leg room, easy access for both driver and passenger, as well as comfortable seating.

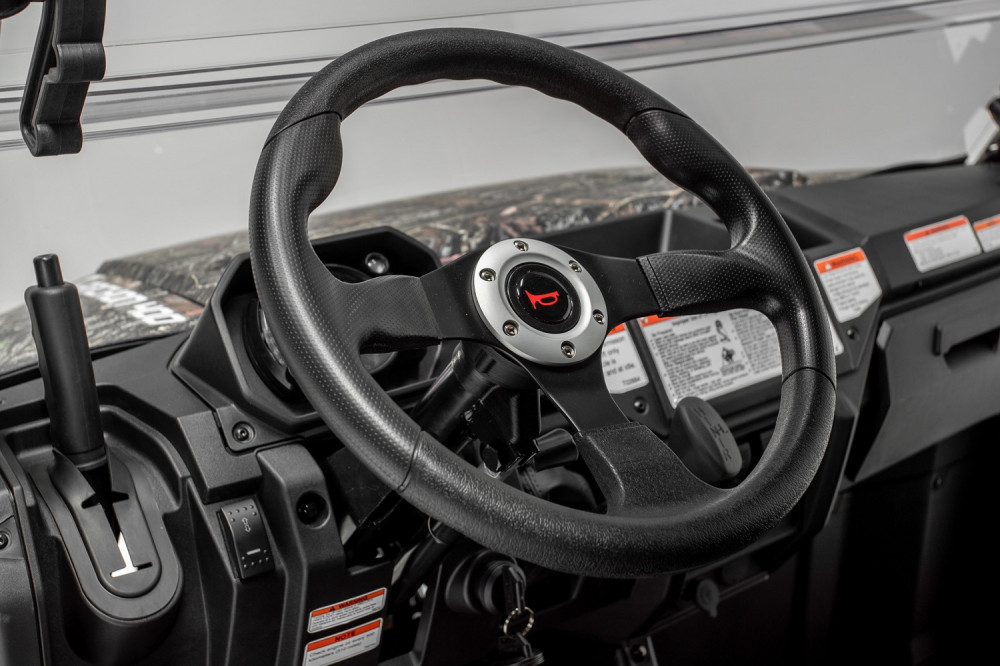

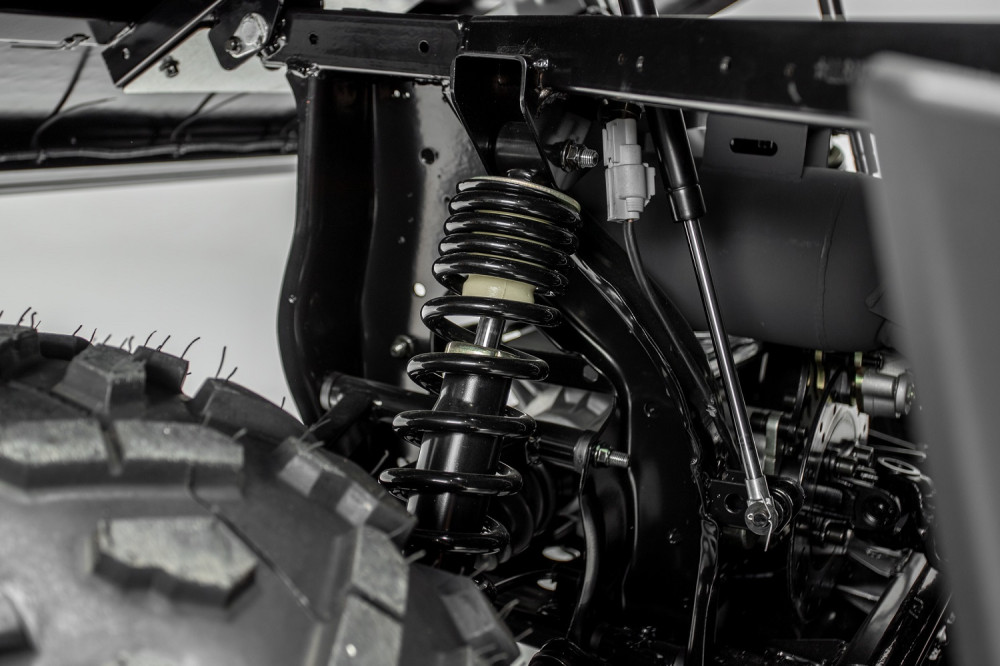

Featuring upgrades from previous models such as side protection bars, front dual arm suspension, lockable rear differential, fold down bench seat and adjustable steering column.

Easy under seat access to engine components and filters allows maintenance to be carried out with ease.

The Linhai Archon 400 is one of our most popular Off Road Vehicle models.

LINHAI ARCHON 400 Specifications
Overall dimensions (L×W×H) 2750mm×1460mm×1860mm

Wheelbase 1890mm

Minimum ground clearance 280mm

Minimum turning diameter 9000mm
Seat height 460mm

Tray dimensions 850mm×1275mm×280mm

Gross capacity to carry 500kg

Cargo box Load Capacity 180kg

Payload Capacity 330kg

Drive Mode 4WD, Front and rear differential?front and rear with lock).

Brake Type Disc / Disc

Suspension Type Dual A-ARM independent suspension

Tyre type Front AT25×8-12 / Rear AT25×8-12

Fuel capacity 26L

Engine type Single cylinder, four stroke, water cool, overhead camshaft, EFI, Engine balance shaft

Cylinder volume 352cc

Diameter × stroke 80mm×70mm

Fuel system EFI
Ignition ECU
Transmission CVT
Max Power and Crankshaft Speed kW/(RPM) 19kW/ 6500—7000r/min
Max Torque and Crankshaft Speed N.m/(RPM) 27N.m/5500 r/min
Top speed 62km/h
