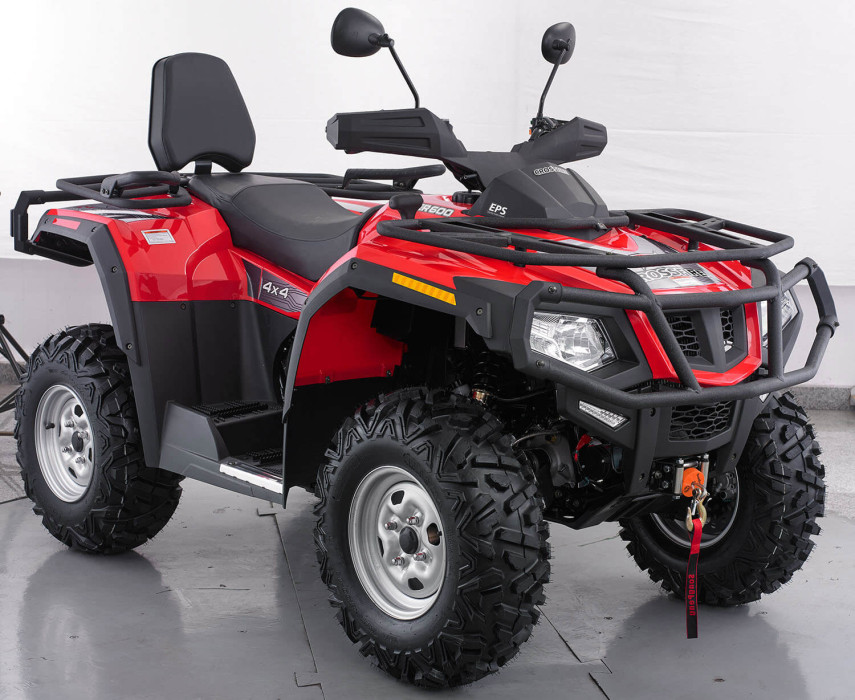

CROSSFIRE Ranger 600

Click Image to Enlarge

$8,940.00

Product Description

Ranger 600

The full-size Crossfire Ranger 600 comes equipped with EFI 4T Engine and 4-Wheel drive giving you the ability to take on the toughest trails. The 600 is the most powerful quad in the Crossfire stable. The power for towing the torque for working and the smooth effortless feel that comes with this workhorse.

The Dual A-Arm Nitrogen Assisted Shocks give the Crossfire 600 a smooth unforgettable ride. The Ranger’s front and rear cargo racks and locale front differential and if all else fails a 2500LB Winch make it the right choice for your off-road adventure.

$8,940
*Note: All prices are GST inclusive but exclude freight from Sydney, and assembly charges. Please call to attain full price.

Size:

600cc

Details:

Colour
Green, Red

The fully automatic gear box with Low range and High range transfer case are standard.

Standard Features:

EFI
Winch 2500Lb
4×4 Dual Range
Differential Lock
Tow Hitch
6Ply tyres
Power Steering

Specifications
Engine 4-Stroke Single Cylinder OHC
Displacement 546cc
Fuel System Electronic Fuel Injection
Cooling Liquid
Transmission Automatic CVT L/H/N/R/P
Drive 2WD / 4WD
Final Drive Shaft Drive
Suspension / Brakes / Tyres
Suspension Front and Rear Dual A-Arm, Hydraulic w/ Nitrogen Assist
Brakes Font Hydraulic Disc
Brakes Rear Hydraulic Disc
Parking Brake Mechanical
Tyres Front 26 x 9-12
Tyres Rear 26 x 10-12
Wheels Steel

Dimensions
Product Dimensions (L x W x H) 2286mm x 1193mm x 1384mm
Rack Capacity Front 20 Kg / Rear 35Kg
Cargo Bed Dump Type Gas Assist
Person Capacity 2
Wheelbase 1447mm
Empty Vehicle Weight Rating (EVW): 390Kg
Gross Vehicle Weight Rating (GVW): 605Kg
Towing Capacity 540Kg Low range Braked
Ground Clearance 279mm

Other
Instrumentation Analog Speedometer & Tachometer With LCD Rider Information
Winch 2,500lbs
Brake Lights Yes
Headlights High / Low Beam
Turn Signals & Horn Yes
Cargo Racks Front / Rear

Warranty
12 months up to 24 months* * If 1 month and 6 months services have been done by a Crossfire Dealer – warranty is extended to 2 years for vehicles 250cc and up. Please make sure you have proof of services.

Electric Power steering comes in handy in rough conditions acting as a damper against the bumps while providing assistance in the tight corners.
