Product Description

Crossfire Kanga generation 2 is the first major update in over 11 years for the Kanga range. It runs on regular unleaded without a need to mix oils . Its quiet and reliable with push button electric start.

Most importantly the new Kanga is lighter better engineered. This is achieved through a revolutionised Sigle A arm design which reduces parts making the new machine lighter and less complex to work on for the technicians.
Also like all new Crossfires all lights on the Kanga are fully functional LED lights for both head and tail lights.

The fully automatic transmission makes riding easy and more fun.

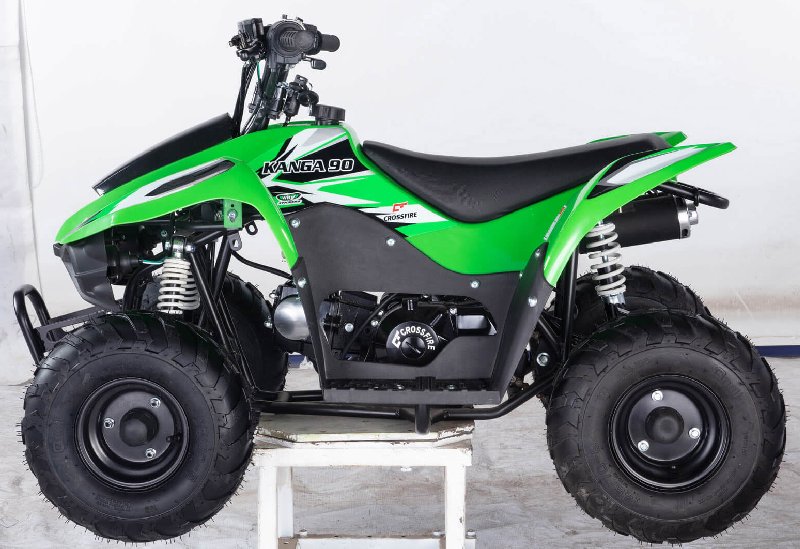

Kanga 90

*Note: All prices are GST inclusive but exclude freight from Sydney, and assembly charges.

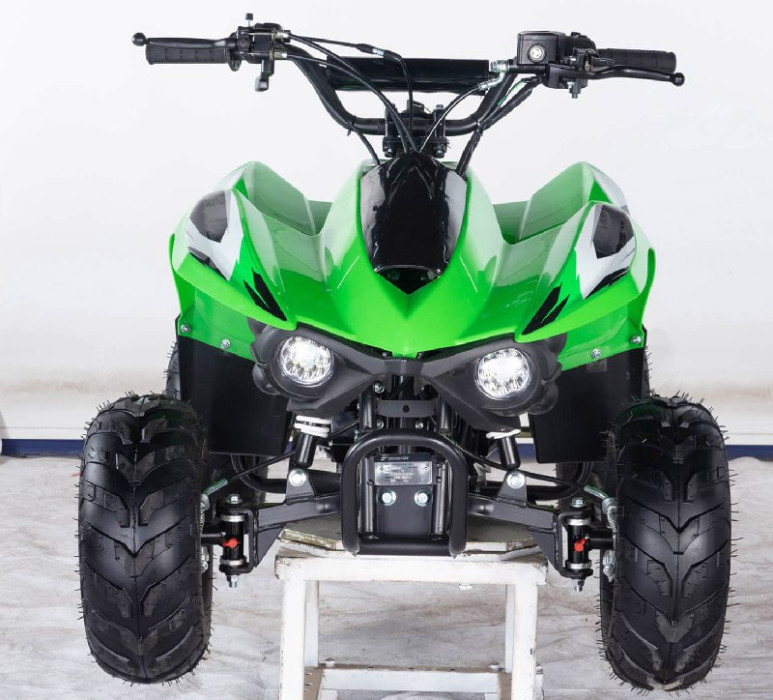

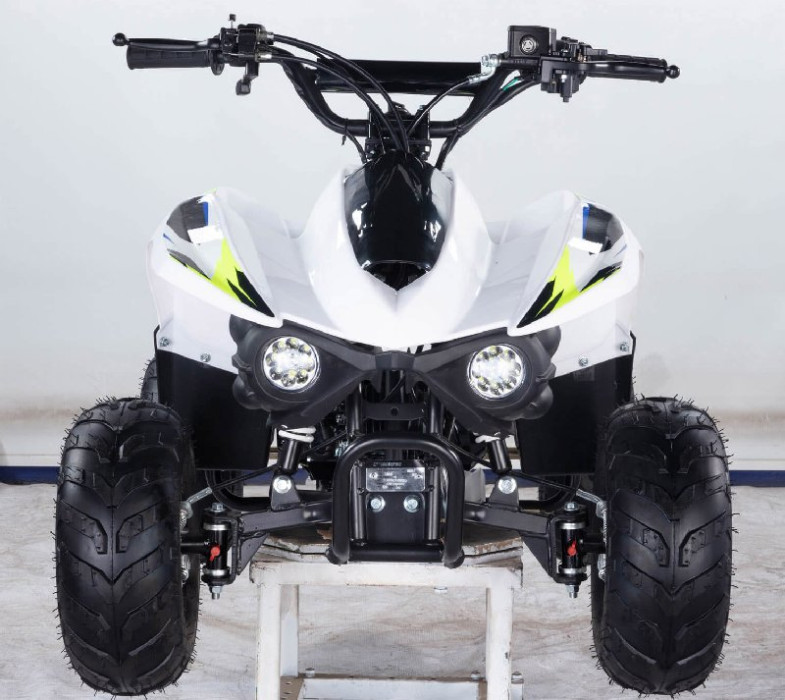

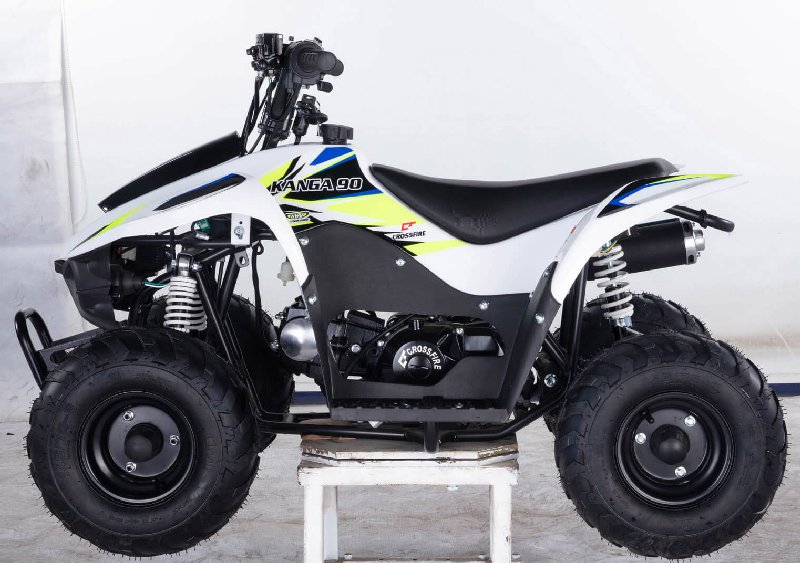

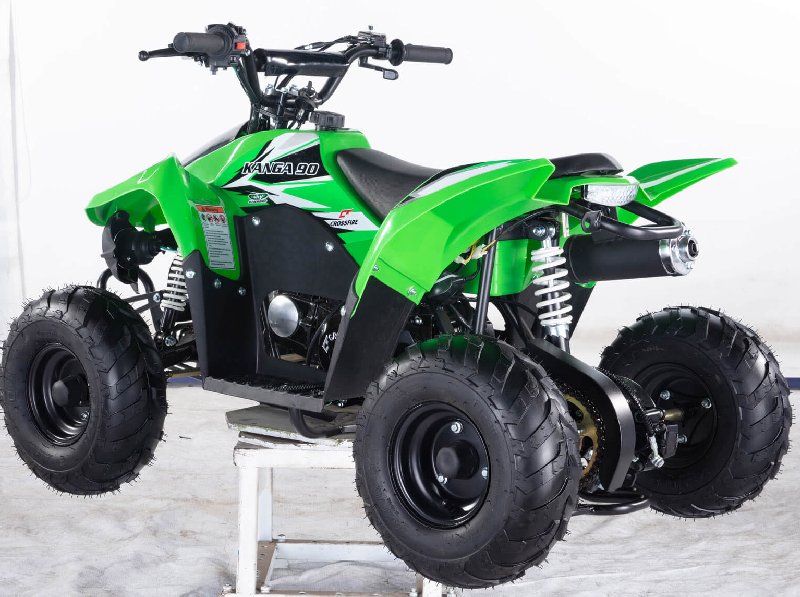

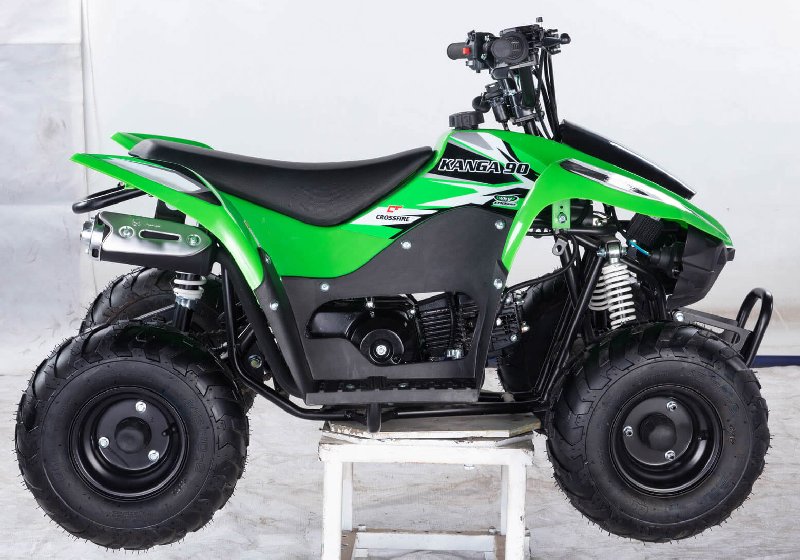

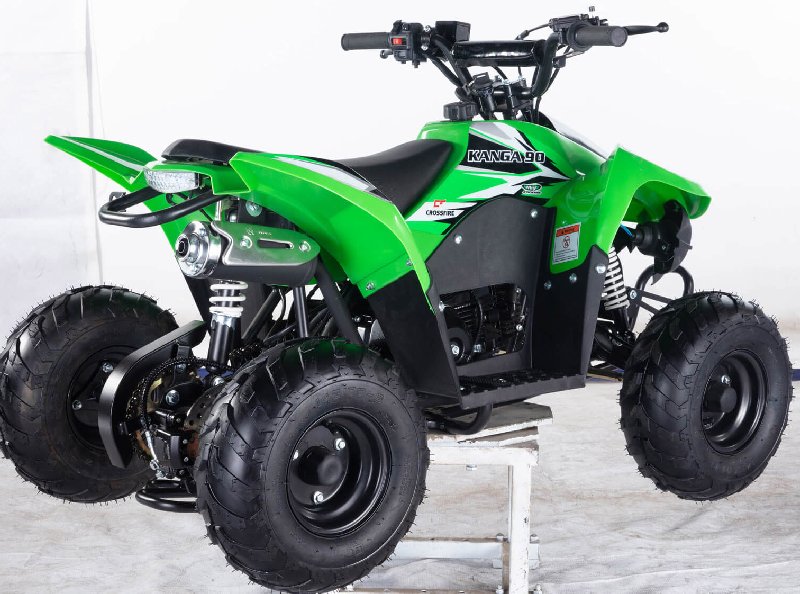

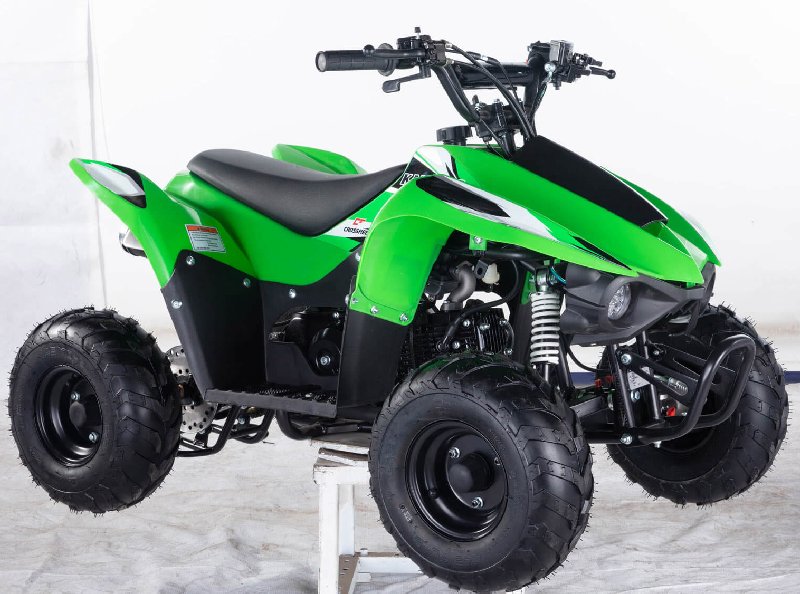

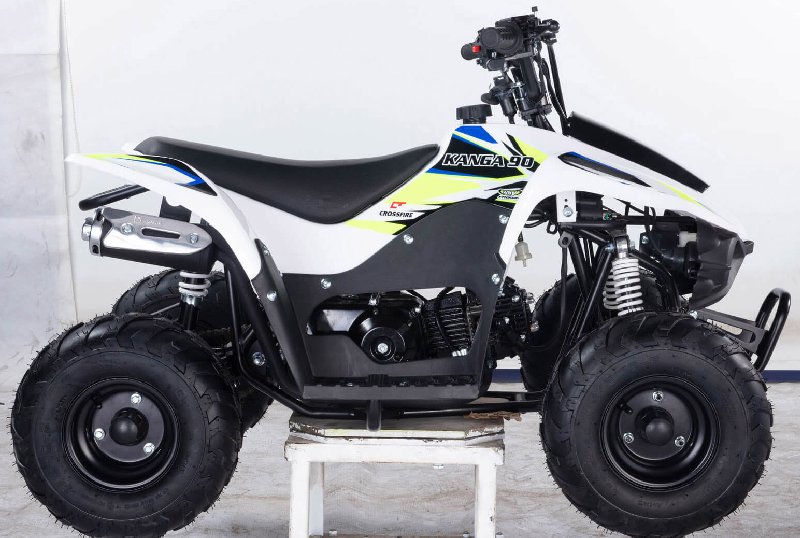

Green, White

Kanga 90 Included Features:

Full Auto
90cc 4 stroke
6” wheels
Electric start
Enclosed Foot boards
LED Lights

Engine LC14FMD
Clutch Type Wet multichip
Measured Flow Capacity 88ml
Rated Load Quality 45kg
Carburetor PZ19
Compression Ratio 8.8:1
Cylinder Diameter x Stroke 47 x 41.4mm
Transmission Chain Transmission
Ignition CDI
Starter Electric
Gearshift Fully Automatic
Max Power / Relative Speed 4 kW /8000r/min
Max Torque / Relative Speed 5.6 N.m/5500?6000r/min
Suspension / Brakes / Tyres
Suspension Front Single Rocker Independent Suspension
Suspension Rear Single Rocker Independent Suspension
Shock Absorber Front 270mm
Shock Absorber Rear 250mm
Brakes Front Drum Brake
Brakes Rear Disc Brake
Tyres Front Size and Spacing 15*5.6-6, 600mm
Tyres Rear Size and Tread 15*5.6-6, 600mm

Seat Height 570mm
Chassis Height 140mm
Handle Height 780mm
Minimum Turning Diameter 2500±1200 mm
Braking Manipulation (Front/Rear) Front and rear handbrake
Net Weight 69kg
Minimum Ground Clearance 50mm
Wheelbase 830±20mm
Max Speed 60km/h
Vehicle Size 1180 x 755 x 805
Battery 12V
Fuel Grade 90# or above
Fuel Capacity 2.5L

Lubrication Mode Pressure and Splash Mixed Lubrication
Lubrication Oil Brand 15W/40-SE(SUMMER) 10W/30-SF(WINTER)

6 months up to 12 months* *If 1 month and 6 months services have been done by a Crossfire Dealer – warranty is extended to 12 months for vehicles up to 250cc.
Please make sure you have proof of services.
