CROSSFIRE E5

Click Image to Enlarge

$11,465.00

Product Description

CROSSFIRE E5 Electric powered $11,465*
+$499 assembly cost
* Note: All prices are GST inclusive but excludes freight.

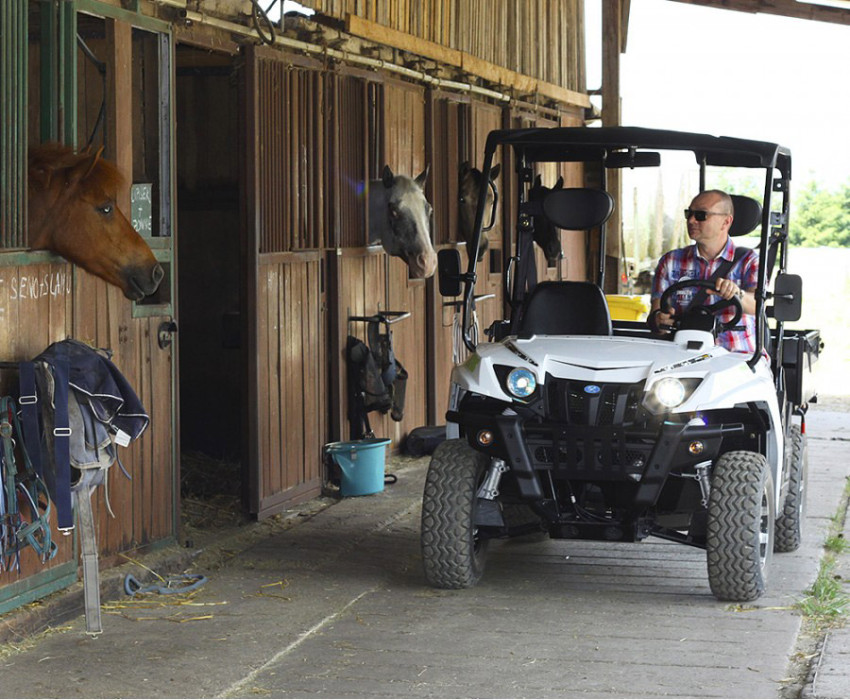

Wisper quiet, zero emissions and solid range. These are the key benefits that give Crossfire E-5 Side by Side a wide range of uses – from maintenance of golf courses, parks and urban greenery through to work around animals and livestock gardens to unrestricted access to warehouses, factory halls, industrial premises and enclosed spaces. E5 removes many of the limitations that are imposed by noise and fumes.

The Rear wheel drive E5 has a lockable rear differential for when maximum traction is required you can unlock the rear differential (Turf Mode) for maximum manoeuvrability and being gentle on your lawns when needed.

Details:

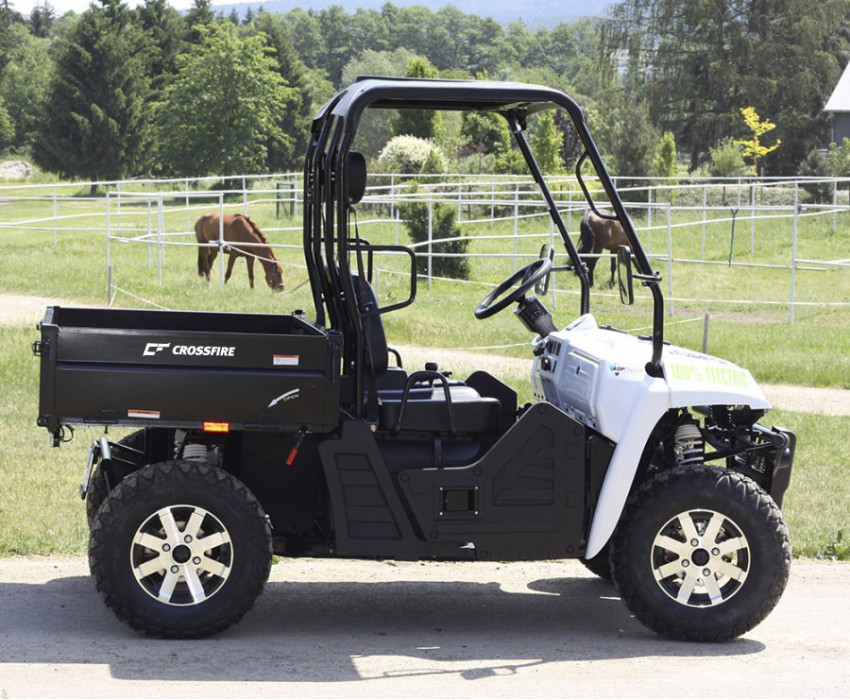

Crossfire E5 Electric UTV Australia
The Crossfire E-5 can handle a day’s work. And there is no noise, no exhaust gases, and it is much less costly than UTV with the engine to service and upkeep.

The Crossfire E-5 will surprise you with a low operating cost: it does not need gasoline, diesel or gas, no engine oil and filter changes, and it is as robust as any other UTV. The easy-to-use chassis ensures a safe and stable ride, the large tilting tray .

And then there’s the equipment:

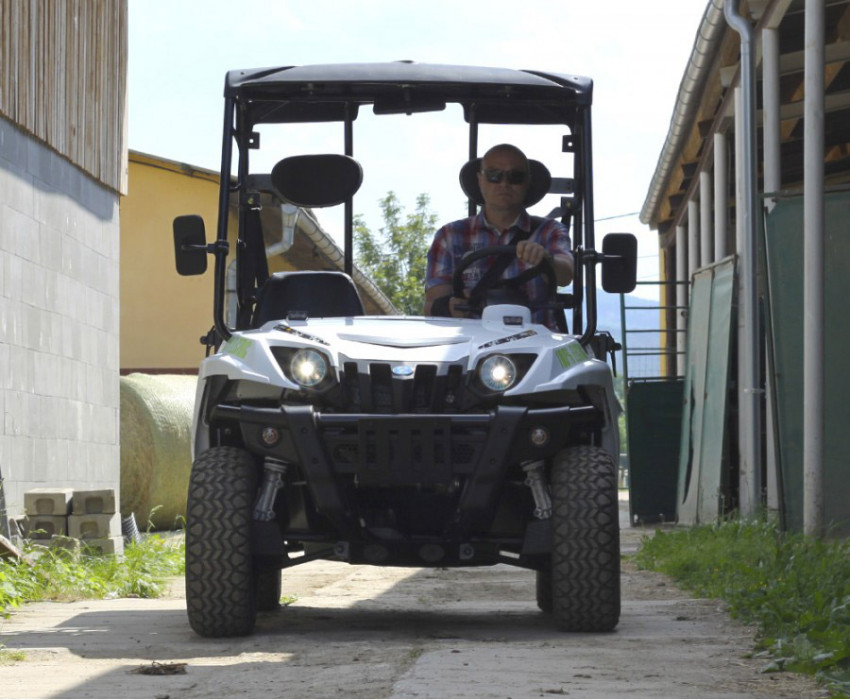

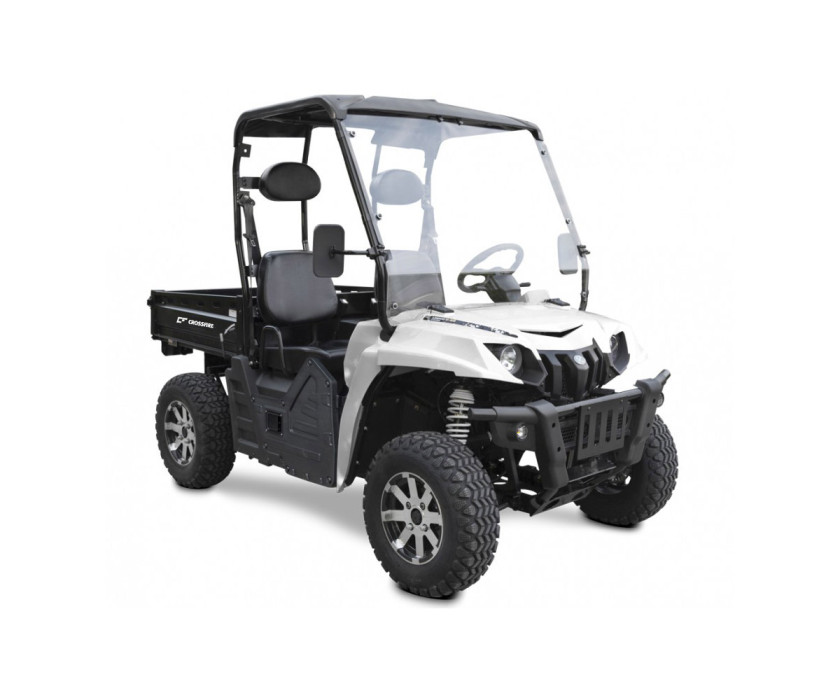

The Crossfire E5 features a full-frontal windscreen, plastic roof, front nudge bar, side half doors, head restraints and attractive cast aluminium wheels.

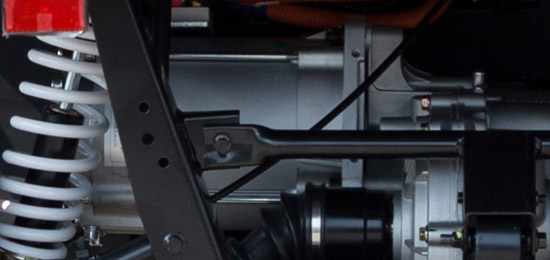

Silent electric motor
The electric motor is virtually silent and produces no exhaust. Therefore, you can use it not only on farms, huts and gardens, but also in halls and enclosed spaces. Electric motors have other advantages over combustion engines: the combustion engine requires high torque to achieve power and torque, but with an electric motor, you have the maximum torque available from zero rpm, which you will appreciate when starting off into a hill. The electric motor works with up to 95% efficiency, has lower operating costs and is not sensitive to temperature or altitude changes, so do not worry that you will not start up in the winter.

Battery
UTV Crossfire E5 drives one of the best and most robust batteries on the market – Professional Deep Cycle Gel High Performance Traction Battery. These state-of-the-art batteries have enormous energy reserves and extreme durability thanks to state-of-the-art technologies. The greatest advantage of these traction batteries, however, is their excellent cyclic resistance. Traction batteries are designed in such a way that they do not mind long-lasting repeated deep discharge, unlike conventional starter batteries, which have a high cyclical load with repeated charging and discharging. Professional Deep Cycle Gel batteries are completely maintenance-free and leak-proof.

Durable chassis
Good ground clearance and excellent stability ensure a wide, easy-to-use chassis with high-quality tires, large suspension holes and a low centre of gravity. All wheels are independent and cushioned with high-quality hydraulic shock absorbers. With rear silencers, spring stiffness can be adjusted.

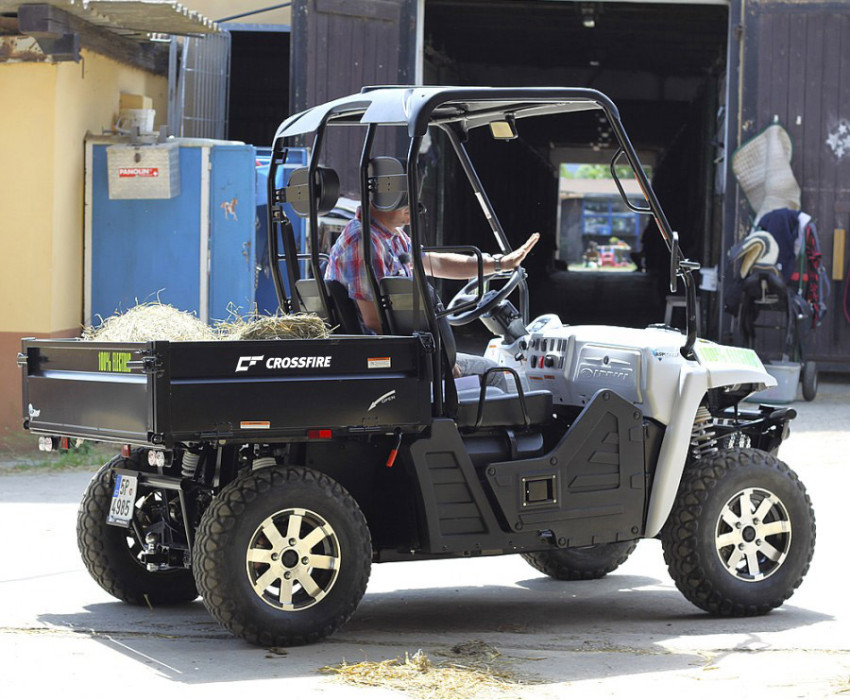

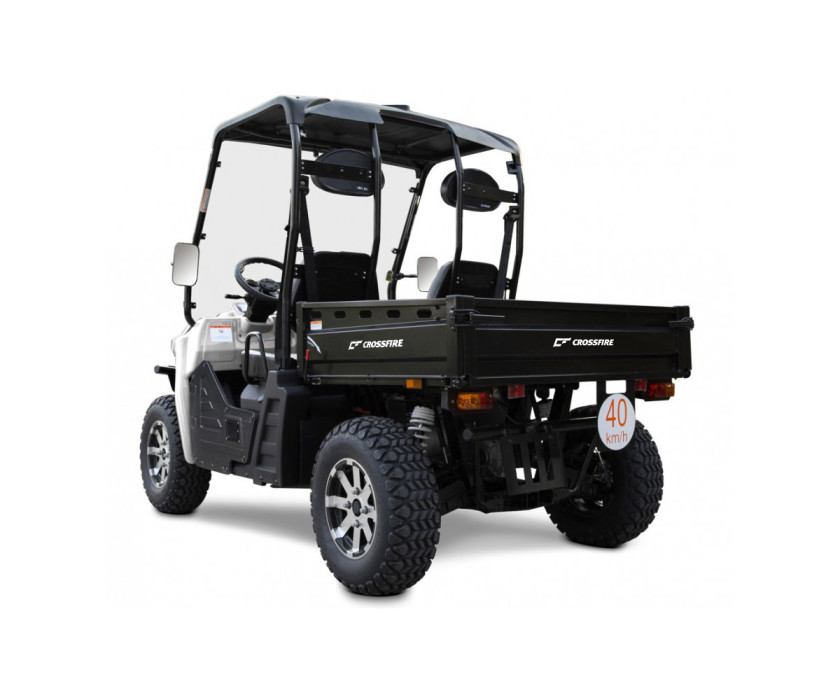

Folding multipurpose body

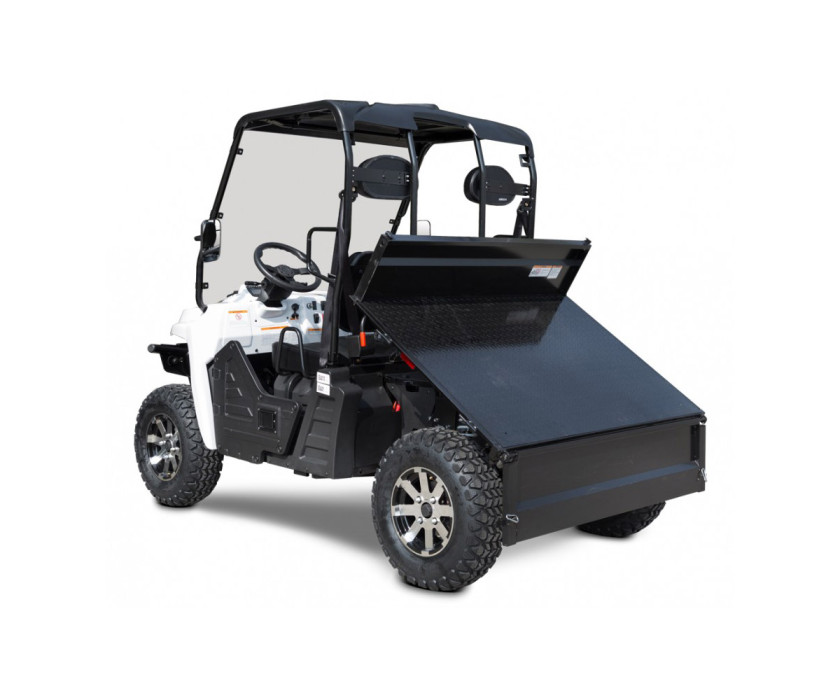

The spacious steel tray will mean you will be load with everything you need with ease. Thanks to the practical folding rear and easy tilting with gas struts.

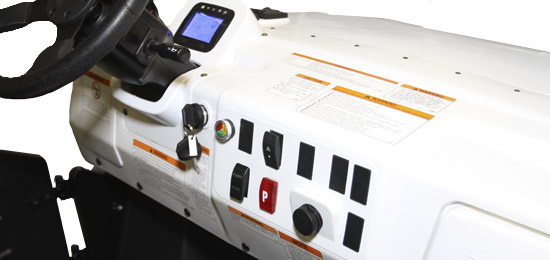

All control at hand
The steering wheel and all other controls are well-arranged and ergonomically arranged, everything is within reach and exactly where you intuitively expect it, the controls will naturally fall into your hand. This greatly facilitates work, driving attention is nothing distracting, and you are constantly in control of the machine.

Effective hydraulic brakes
Disc brakes with high braking power on all four wheels reliably stop the machine even with a heavy load or a fully loaded trailer. With progressive onset of action, braking is sensitive and predictable.

Standard equipment
Crossfire E5 offers a wealth of equipment at the basic price. It includes, for example, cast aluminium alloys, a sturdy UV-resistant plastic roof, full-face front windscreen, LED front and rear tail lamps, massive front panel, side door, passenger handles, robust variable tipping steel body with gas-lift struts, Mirrors, rear-view mirrors or towing hitch.



Zero Emissions Vehicle (ZEV) policy Being adopted by many councils around Australia.

The stated objectives of the ZEV policy are to: ensure the transport requirements of Council operations are met in the most efficient, transparent, and equitable manner with the lowest possible environmental footprint.
Respond to ever increasing evidence and global concern of the impact of vehicle emissions on human and environmental health. To continue Council’s commitment to addressing climate change and reducing local airborne emission through the purchase and operation of low emission vehicles for the light vehicle fleet, with a view to transitioning to zero emissions vehicles consistent with corporate and community ‘zero carbon’ commitments.
If you are looking to meets your electric needs The Crossfire E5 SXS buggy is your best machine for mixed on and off-road use.

Category: Side by Side
Description
Additional information
ATV Safety Information

Description
--E5 Included Features:
--13.5 Hp Electric AC motor
--Selectable drive power modes
--Independent Front and rear suspension
--Metal Tray
--Lockable Rear differential
--Half Cabin doors
--Windscreen

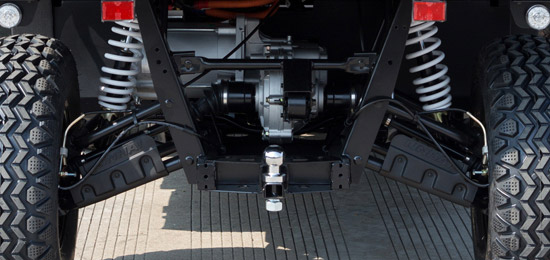

--Tow hitch

Motor
Type Three phase induction electric motor with copper rotor
Battery Voltage 60V DV
Performance 9.7 kW / 1950-2100 rpm Peak
Battery Type 5x maintenance-free battery Gel Professional Deep Cycle AGM 12V / 100Ah
Charge Time 8 hours approximatel
Range: ECONOMY mode: 90 km *
Range: POWER mode: 85 km *

* Data on the rolling road based on the driving average speed of 30 km / h without load. Adding load will reduce the range by 50% or more . Effective range can be 20-30km once loaded. While there is still no guarantee of being able to achieve the maximum distances advertised on a single charge – because driving styles, driving conditions, and geography can affect battery power consumption

Drivetrain
Drive 2×4 – Rear
Speed Forward, neutral, reverse Electronic / 2 driving modes – POWER and ECONOMY
Final Drive Ratio direct drive rear half
Chassis / Suspension / Brakes
Suspension Front Independent McPherson
Hydraulic fluid dampers
Suspension Rear Independent, double A-arm IRS
hydraulic liquid dampers, p RUŽÍN with adjustable preload
Brakes Front 2x hydraulic disc with drilled discs
Brakes Rear 2x hydraulic disc with drilled discs
Tyres Front AT 24 x 8-12
Tyres Rear AT 24 x 8-12

Dimensions
Length x Width x Height 2700 mm x 1420 mm x 1870 mm
Wheelbase 1805 mm
Seat height 850 mm
Cargo Bed Dimensions 1100 x 930 x 235 mm
Operating weight 442 kg

Pricing as from 1-6-22
