Product Description

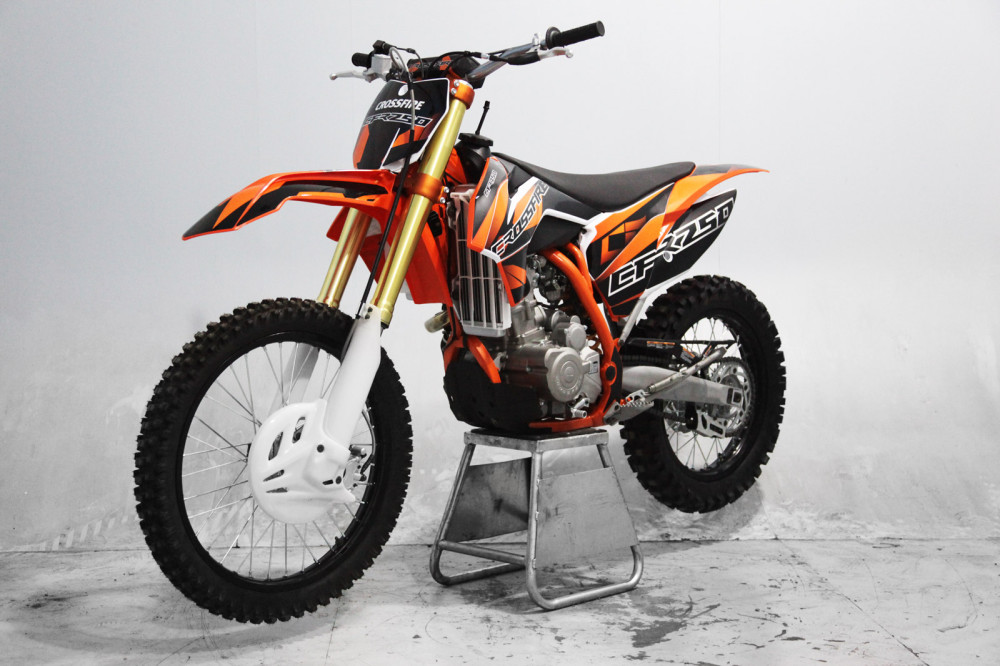

The CFR250 is all new for 2018. The XZ250R which has been a revolutionary bike retires to make way for the CFR250.
The current model is lighter slimmer and more agile. If in doubt that you are riding the CFR just look at the Burnt Orange frame which is the dead giveaway. Its lighter yet stronger than the model it replaces, it will turn in better come out of the ruts with more stability and control.

The Zongshen ZS170 engine is carried over from 2014 but in a lighter frame with larger radiators for better cooling the engine has got a new lease on life.

The CFR250 is a great beginner to intermediate bike with handling, ergonomics that will rival the biggest and the best.

So stop reading start riding and check out the new Crossfire CFR250 at your closest dealer.


*Note: All prices are GST inclusive but exclude freight from Sydney, and assembly charges. Please call to attain full price.


CFR250 Included Features:

All New Frame (Orange)

Carburettor Mikuni PZ30
Water Cooled
21” Front, 18” Rear Wheels

Engine Zongshen, ZS170MM-3, Single Cylinder, 4-Stroke SOHC 2-Valve
Displacement 250ml
Bore x Stroke 70mm x 65mm
Compression Ratio 10.5?1
Transmission Constant Mesh, 5-Speed, Claw Actuated
Chain KMC 520
Clutch Manual Wet Multi-Plate
Start Kick start and Electric Start
Ignition Type Contactless DC – CDI Ignition
Primary Drive 4.055
Gear Ratio First: 2.909
Second: 1.867
Third: 1.389
Fourth: 1.150
Fifth: 0.955
Sixth: /
Spark Plug NGK D8EA
Engine Cooling Water Cooled
Oil 10w40 (Synthetic Recommended)
Torque Max. 24N.m
Idke Speed 1500 ± 100 Rpm
Max Speed 95 kph
Carburetor Mikuni PZ30mm
Final Drive Ratio 13 / 42
Frame Design Perimeter Frame, High Strength Steel
Fairings Material Polypropolene Plastic
Voltage 12V
Suspension / Brakes / Tyres
Suspension Front T6 Series (H) Inverted Hydraulic, fully adjustable for rebound & compression. 91cm length, 27.5cm travel.
Suspension Rear T6 Series (H) single shock absorber with piggyback. Adjustable rebound, compression (high & low speed), and spring preload adjustments. 48.5cm length, 24cm travel. High Strength Steel / Optional Aluminum spring arm material.
Brakes Front Single 240mm diameter steel disc, Single dual piston caliper
Brakes Rear Single 240mm diameter steel disc, Single piston caliper
Wheel Front 21? 6061 Aluminum
Wheel Rear 18? 6061 Aluminum
Tyres Front 80/100-21
Tyres Rear 110/100-18

Package Size 184.5cm x 45cm x 91.5cm
Overall Size 212cm x 81cm 125cm
Minimum Ground Clearance 29cm
Seat Height 930mm
Wheelbase 1460mm
Tank Capacity 6.7L
Fuel 91 Octane Rating or Higher (Required)
Fuel Consumption ? 354 g/kw.h
Dry Weight 115kg
Max Load 160kg

6 months up to 12 months* *If 1 month and 6 months services have been done by a Crossfire Dealer – warranty is extended to 12 months for vehicles up to 250cc. Please make sure you have proof of services.
