Fynspray WS 3819 Impeller

Click Image to Enlarge

$149.00

Product Description

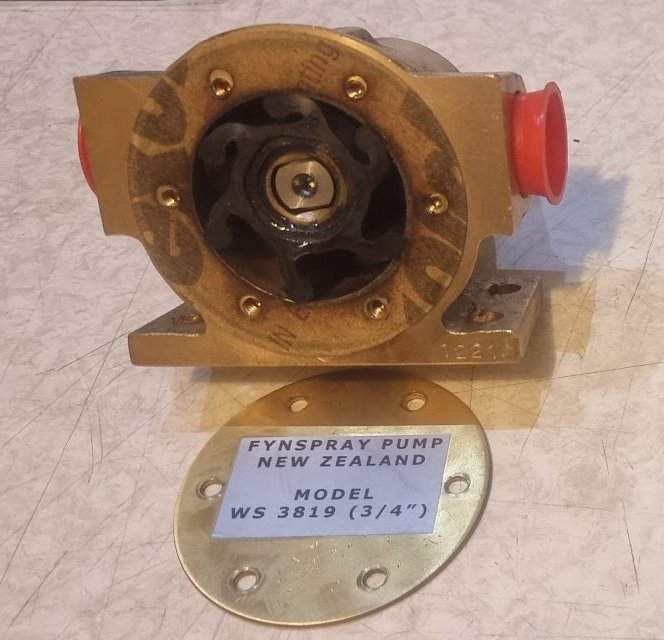

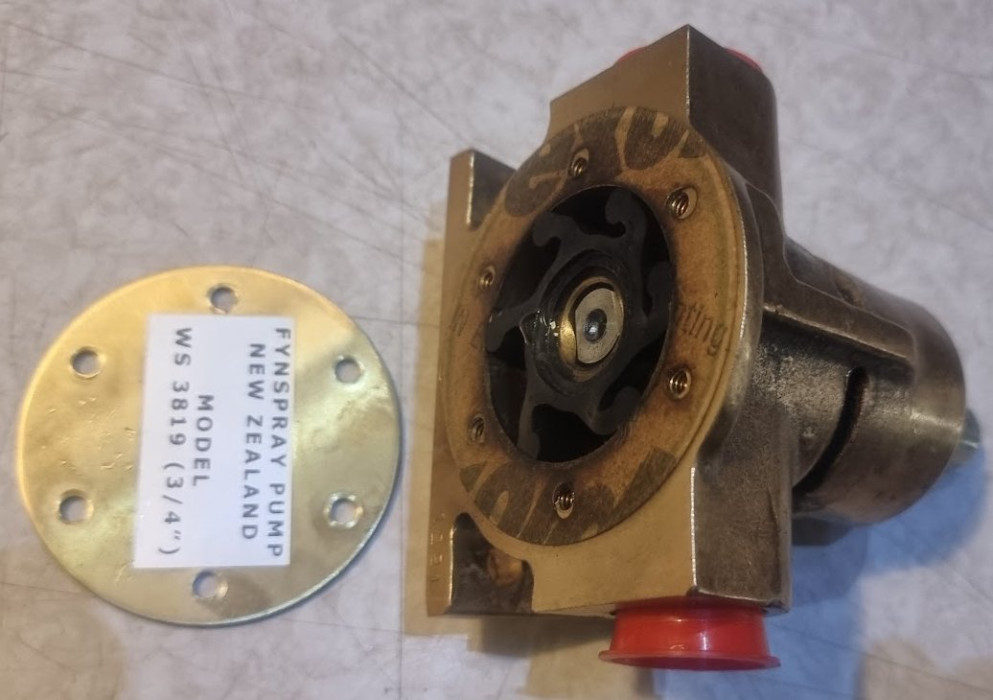

Genuine Fynspray WS 3819 pump impeller, 6 blade.

Used on Fynspray Pump RBW2670 & RBW2671 2 Flats on shaft.

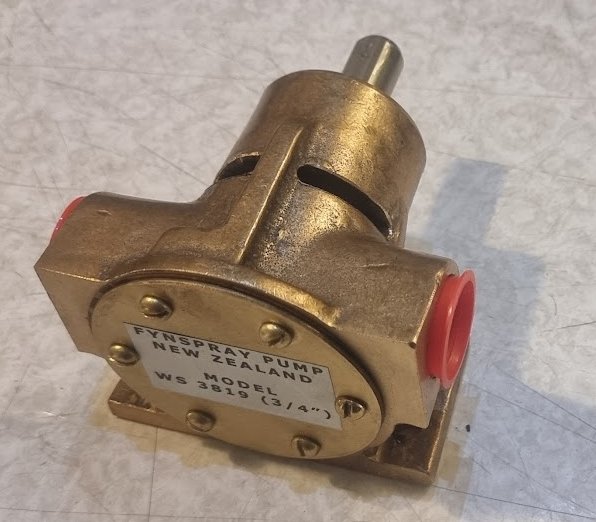

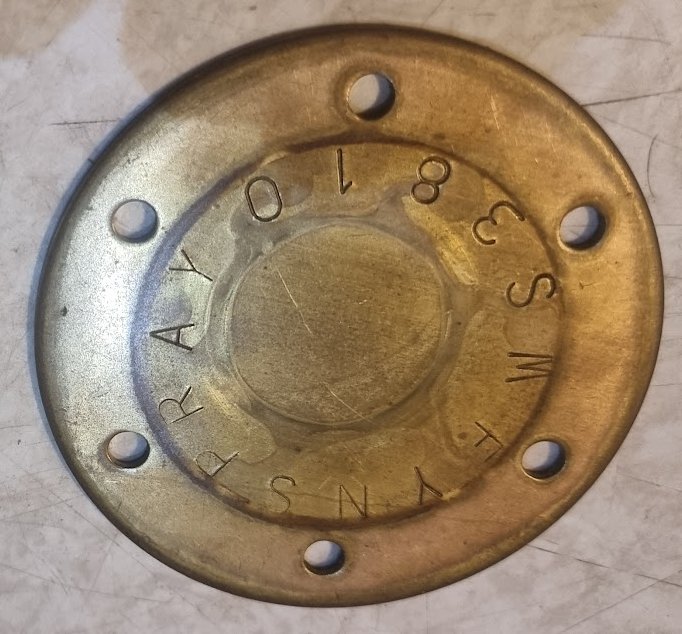

Pump Cover WS3819. Fynspray WS 3819 3/4" Pump.

Aftermarket pump impeller. $105 (Ancor 12 blades)

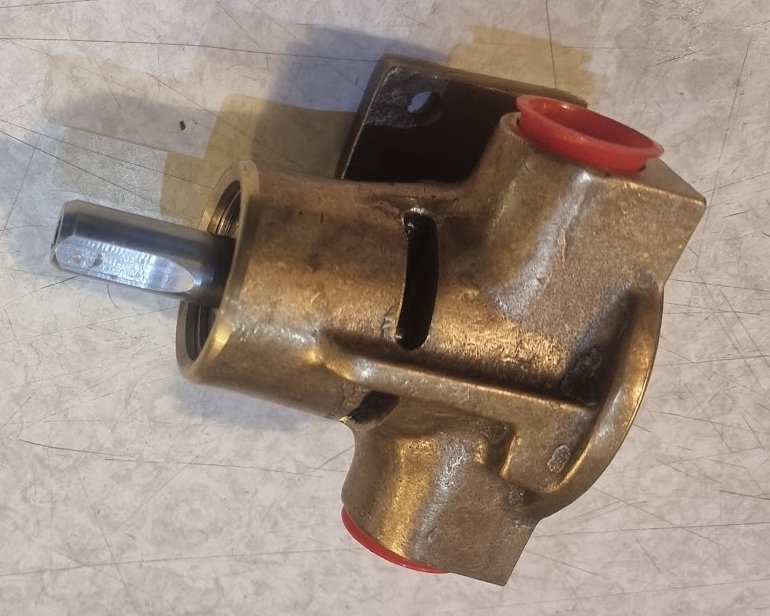

WS38 range is fitted with 2 ball bearing races, special long wearing pressure bronze bodies, and stainless steel ground shafts.
The neoprene impellers are odourless, tasteless, non-toxic and in nearly all cases more acid resistant than natural rubber.

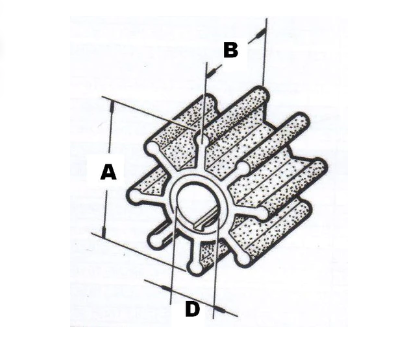

Size:

(A) Diameter in mm - 57
‘(B) Depth (Blade length) mm – 32
Number of Blades – 12
‘(D) Shafts insert Diameter mm – 16
Shaft type – 8
Suits shaft with 2 flats . Double Flats

Details:

Pulley to suit is rwb2677

-Bearing Impeller Pump

-With excellent self-priming characteristics they are ideal for many marine applications including engine cooling, bilge pumping, deck washing etc.

-Body: Bronze
-Impeller: Neoprene
-Shaft: Stainless Steel
-Bearings: 2 x ball bearing races
-------------------------------

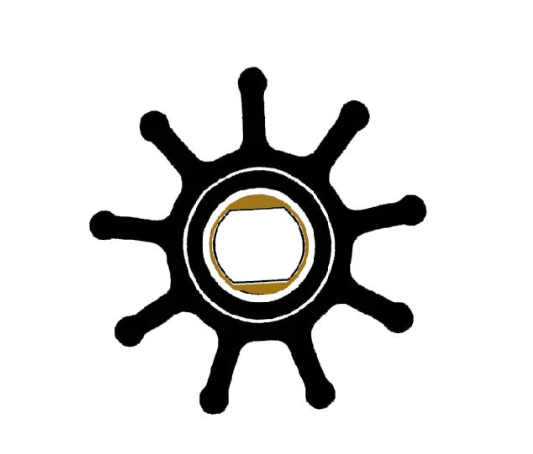

Aftermarket impeller to suit:
lmpeller is 12 blade and will pump more water than original 6 blade

(A) Diameter in mm - 57
(B) Depth (Blade length) mm – 32
Number of Blades – 12
(D) Shafts insert Diameter mm – 16
Shaft type – 8
Suits shaft with 2 flats . Double Flats
