Hydrive Admiral OBKIT1

Details:

The OBKIT1 is the most popular kit design as the 211BH cylinder only requires 540mm clearance in the engine-well.
The powerful bronze, brass and stainless-steel construction of the 211BH bullhorn cylinder is recommended for single outboard motors up to 300HP or twin motors up to 600HP total (counter-rotating).

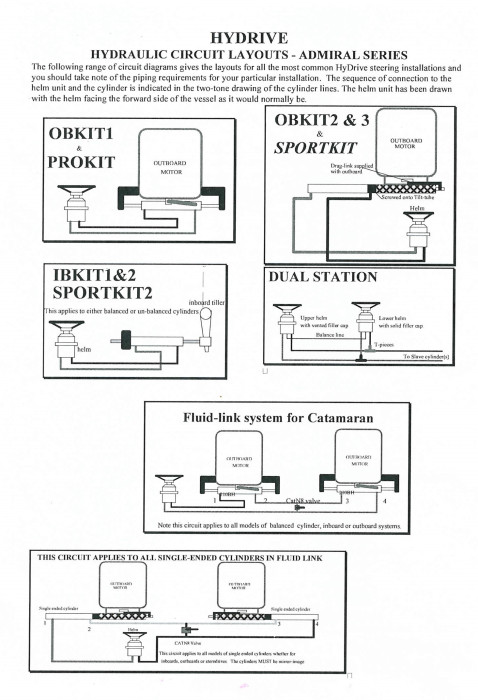

This unit comes in a kit for a single station monohull- however other variations are available for cats and dual stations.
Installation is simple with the cylinder attaching directly to the front of the outboard motor and supported from the motor’s tilt tube.

Suitable for
--Vessels 5-15 metres
--Leisure, Commercial / high performance
--Outboard, Catamaran (Power or Sail)
--50 to 200 HP, 200 to 300 HP

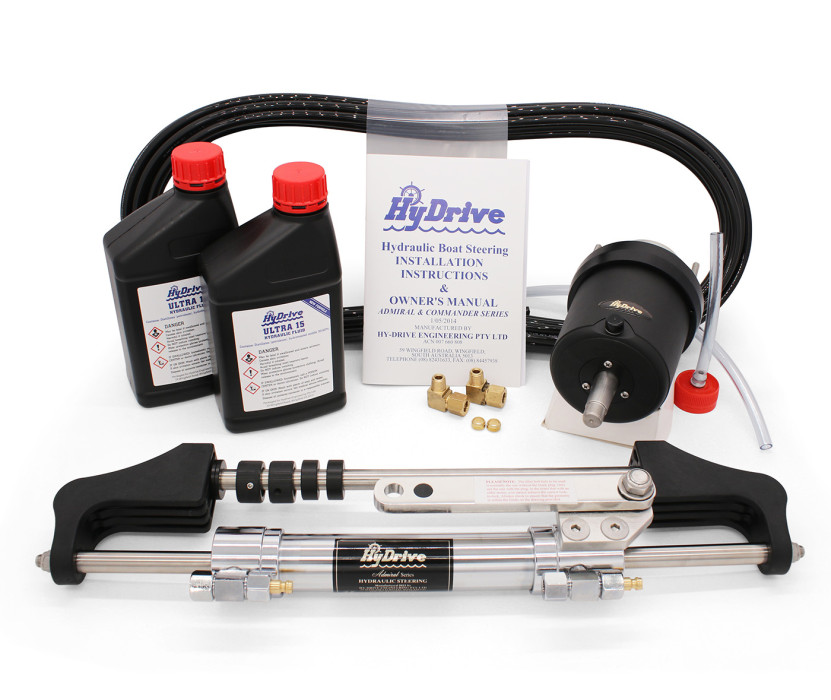

In the box:

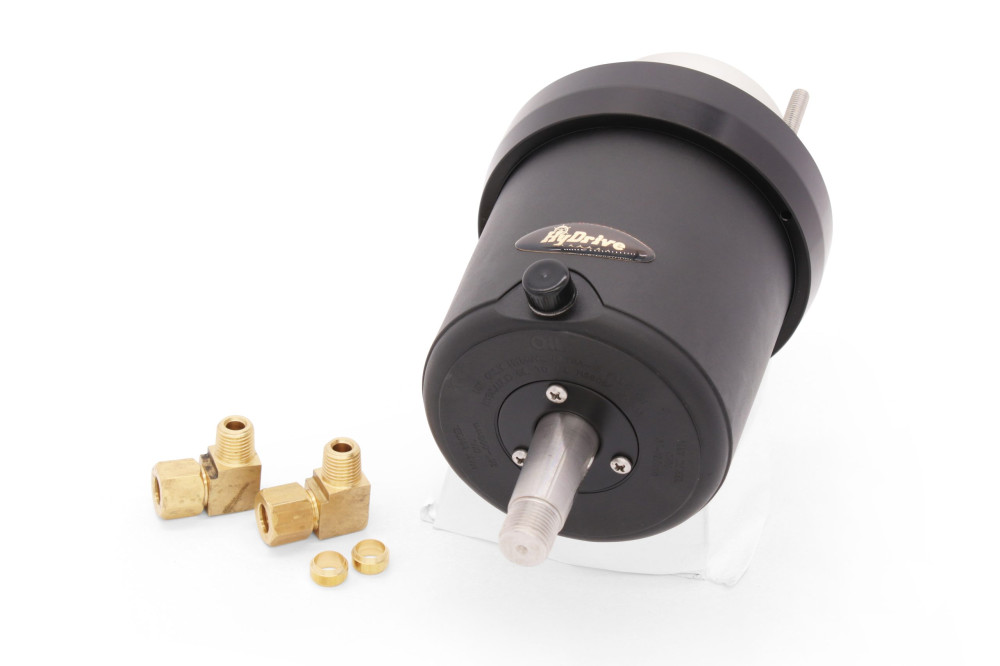

--Model 401N8 helm

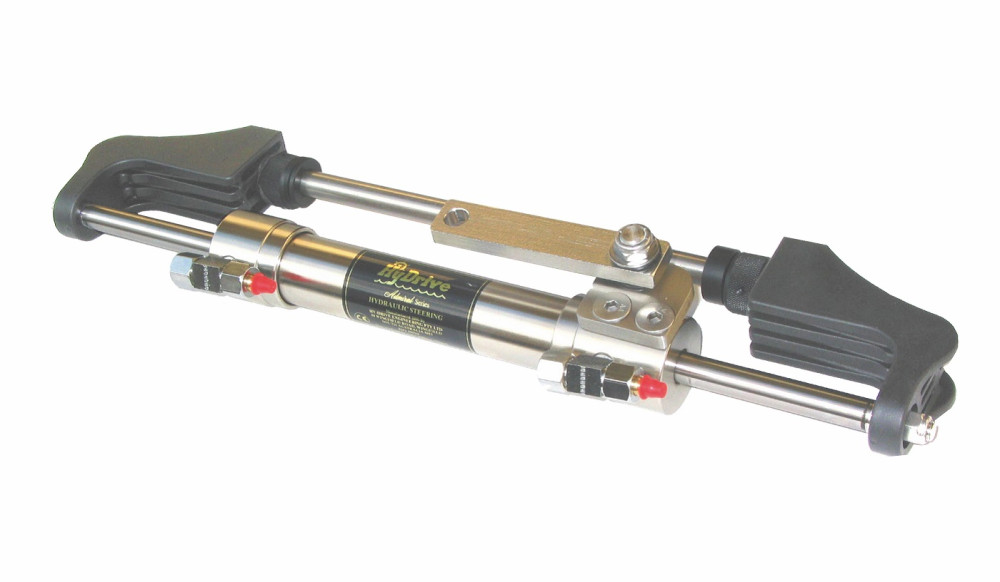

--Model 211BH bullhorn style cylinder
--2 litres ULTRA-15 fluid
--15M (50ft) nylon hydraulic tubing
--fittings
--Bleeder kit
--Instruction manual
