NG MAXI Freefall

Size:

Boats 19.5-39ft / 6-12m

Details:

- Adaptable fit and varied mounting options, with the ability to reset the gearbox and motor assembly in 8 different configurations to best suit your anchor well

- 5-year warranty

• Suitable for boats 7 metres plus
• 1400 watt motor
• All 316 marine grade stainless steel
• Baseplate 8mm marine grade stainless steel in three parts and welded
• Diameter of the drum 300mm
• Maximum lifting capacity 275 kilos (when the drum diameter is small)
• Holding capacity at anchor is 3600 kilos

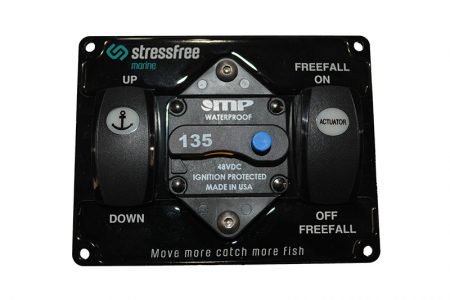

• Rated to 135 amps
• Normal running the Stress Free will use 25 – 30 amps and under load up to 55 amps
• Recommend dual batteries with the battery switch on BOTH
• Can be deck mounted

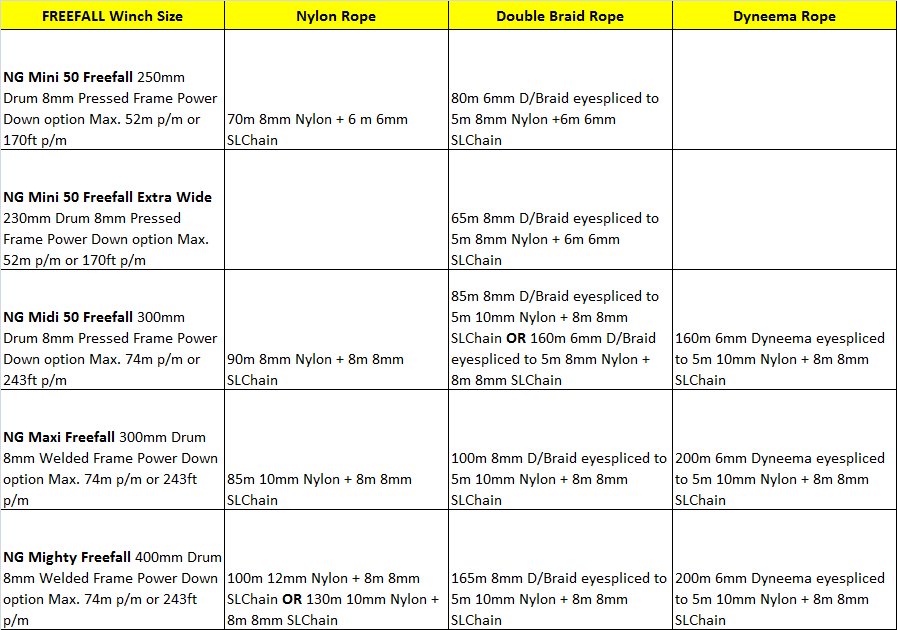

Drum capacity
• 85 metres of 10mm nylon plus 8 metres of 8mm shortlink chain OR
• 100 metres of 8mm double braid eye spliced to 5 metres of 10mm nylon plus 8 metres of 8mm shortlink chain
