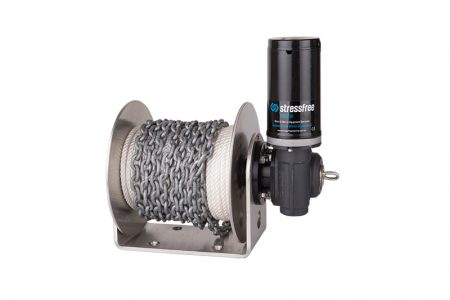

MINI 50 Standard

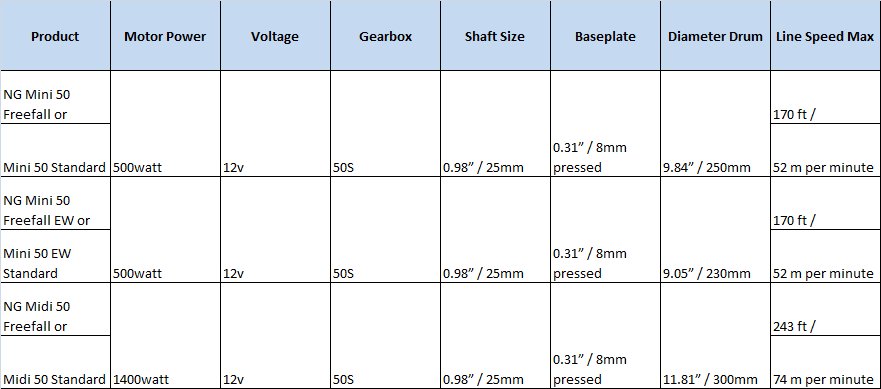

Details:

Motor Power: 12volt.

Voltage Gear box: 50S

Shaft Size: 0.98" / 25mm

Baseplate: 0.31" / 8mm pressed

Diameter Drum: 9.84" / 250mm

Line Speed Max: 170 feet per/minute/ 52 meters per min

Emergency Manual override

Winch Weight; 22kg



The Stressfree Marine Mini Me Standard anchor winches additionally feature:

• Adaptable fit and varied mounting options, with the ability to reset the gearbox and motor assembly in 8 different configurations to best suit your anchor well
• Optional deck mounting

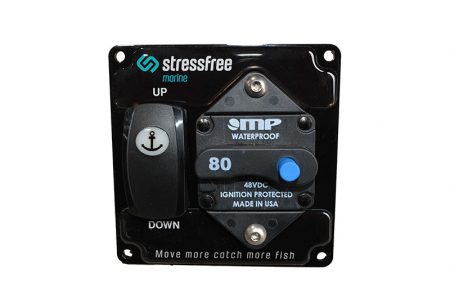

• Waterproof 80amp Circuit Breaker with Thermal Overload cut-out.
• Premium quality Italian motor and gearbox
• 50 series double anodised gearbox to prevent corrosion

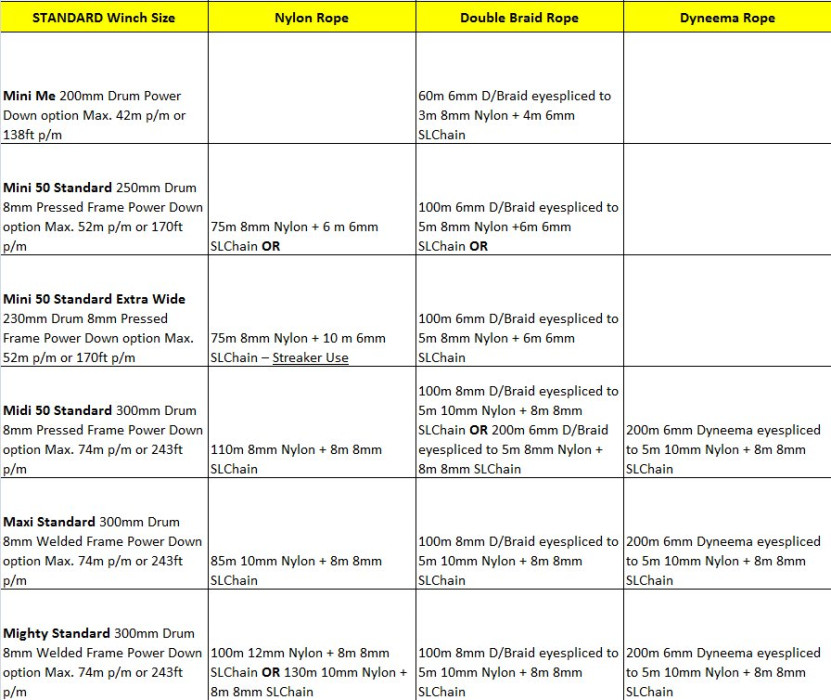

• Drum capacity options:

75m of 8mm nylon spliced to 6m of short link chain.

100m of 6mm double braid eye spliced to 5m of 8mm nylon spliced to 6 meters of 6mm short link chain.

• Solid stainless steel drive shaft
• Grease impregnated acetyl bush for superior performance
• Constructed from 316 L grade marine stainless steel
• Optional Pro-series guards upgrade
• Optional waterproof wireless remote
• 5-year warranty

*ROPE & CHAIN NOT INCLUDED but can be optioned.
