Winch Spare Parts--South Pacific

Click Image to Enlarge

Product Description

Summary of the more popular spare parts for South Pacific range of winch / windlasses.
Pictured are:

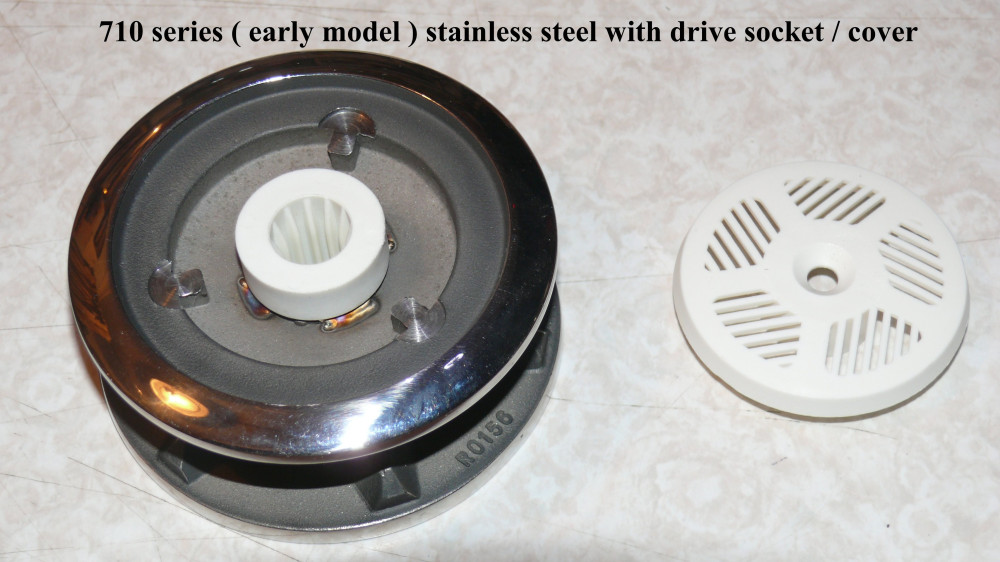

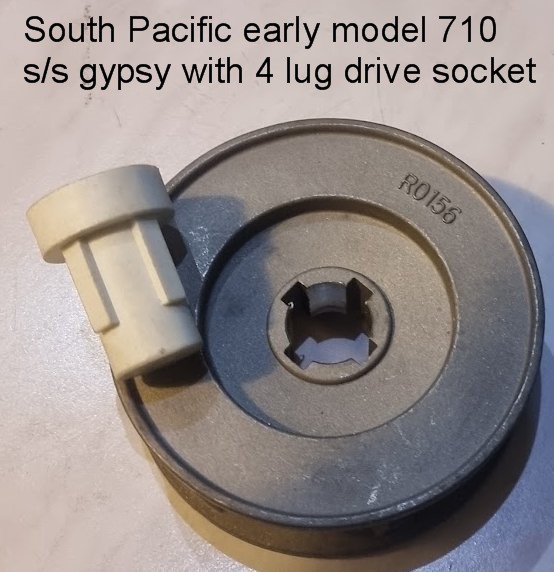

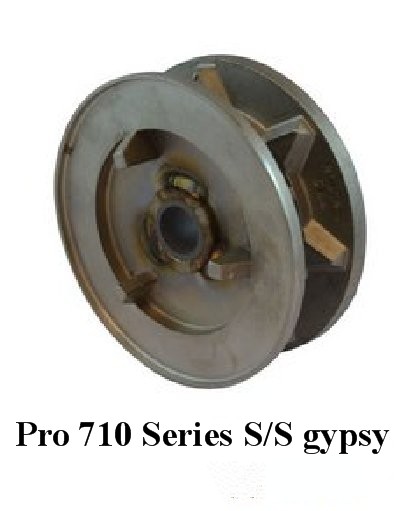

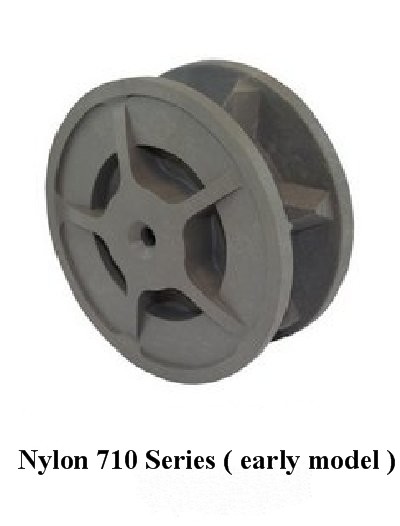

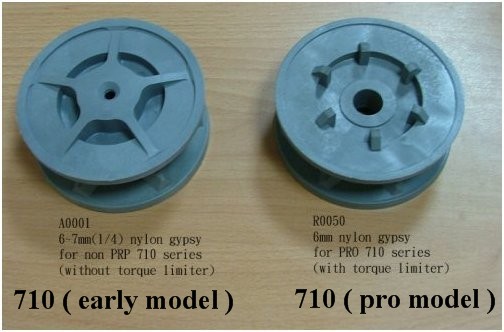

Gypsies for early and late models.

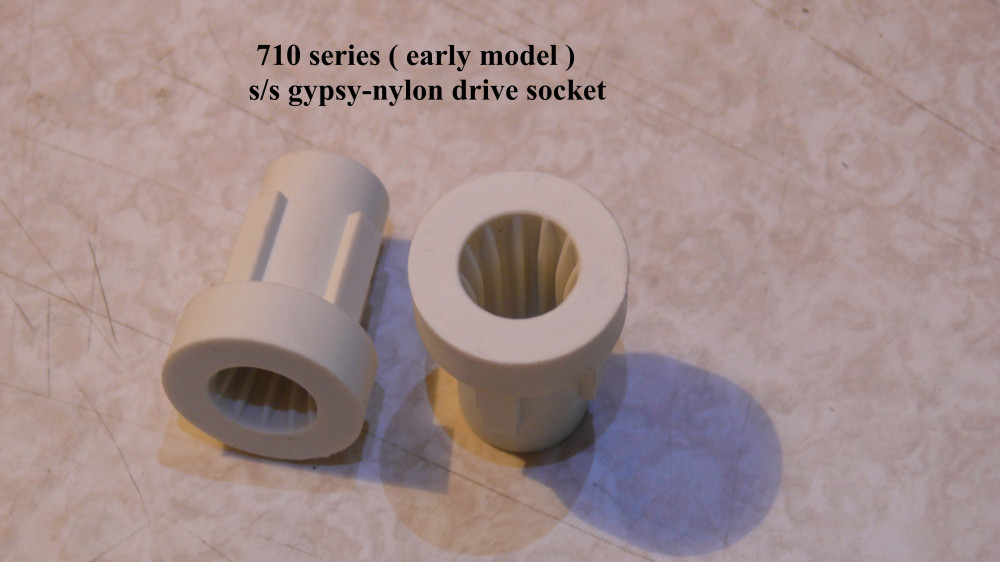

Drive collar for early model.
Gypsy cover for early model.
Updated switch for all models.

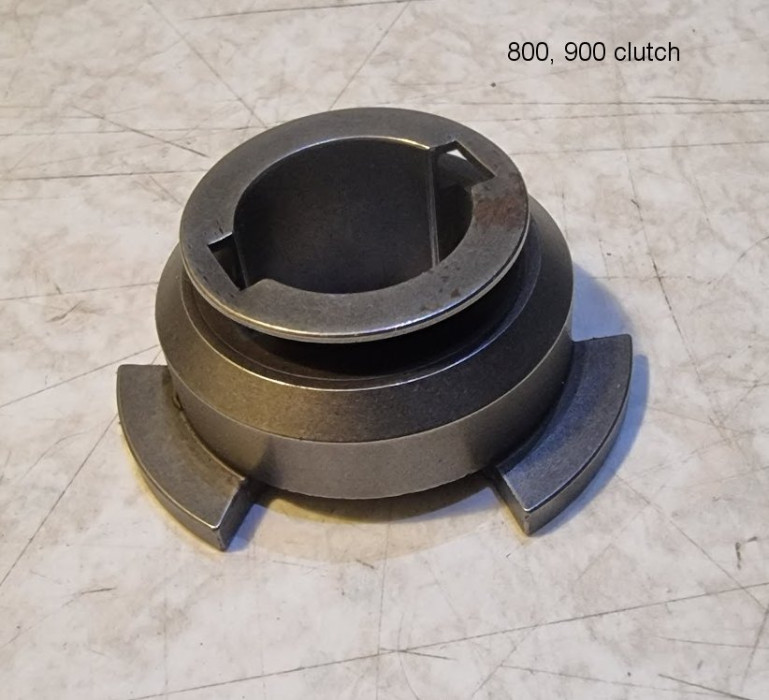

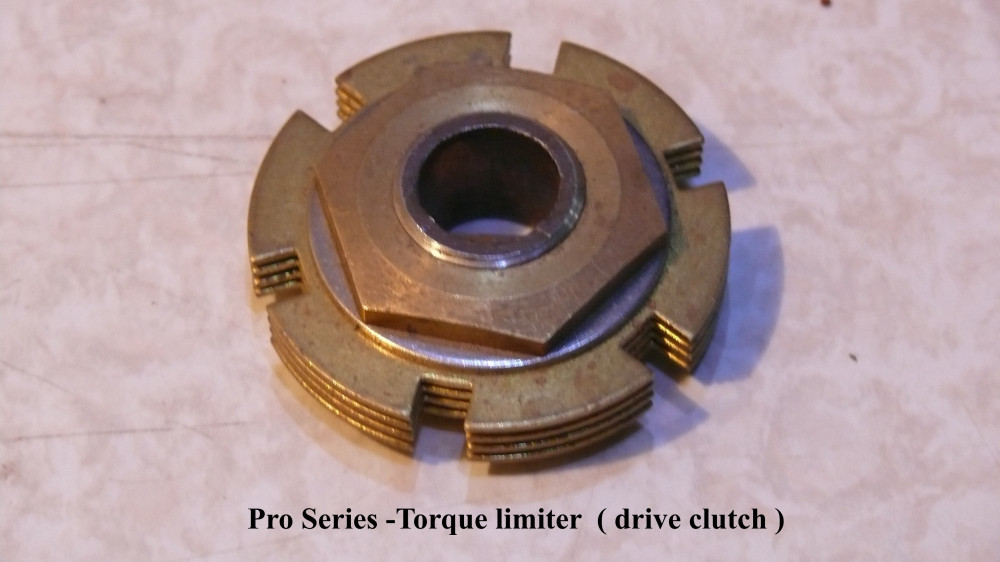

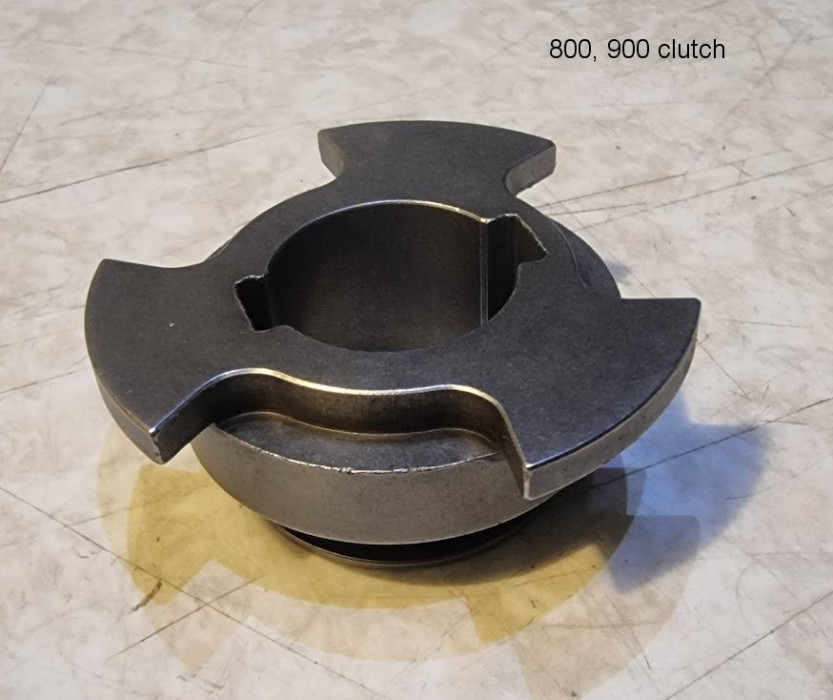

Torque limiter for all late models.

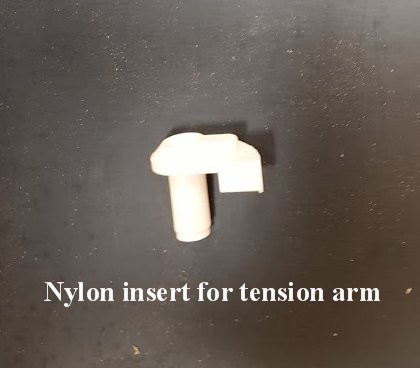

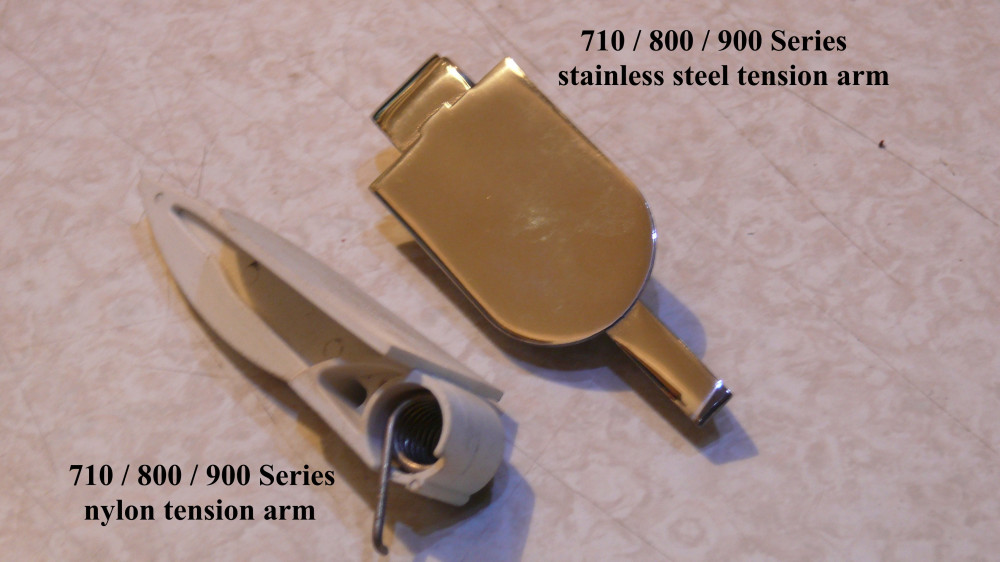

Tension lever suits all models.

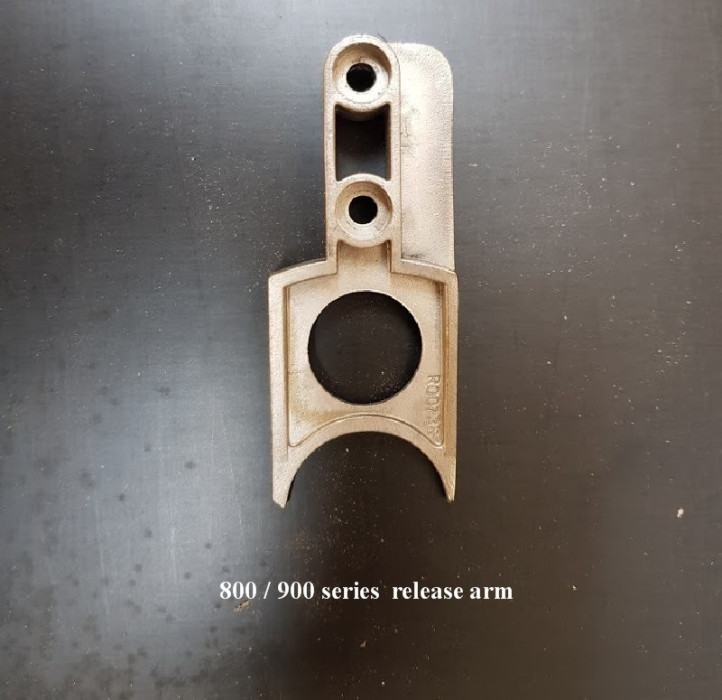

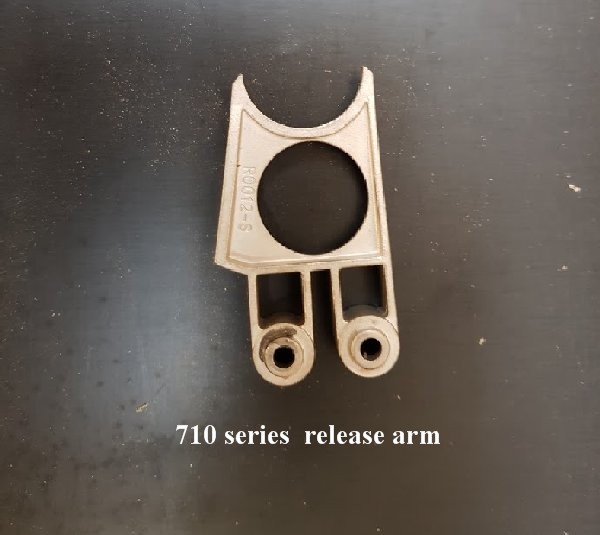

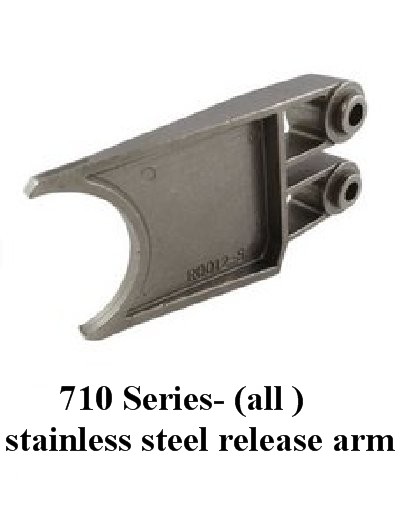

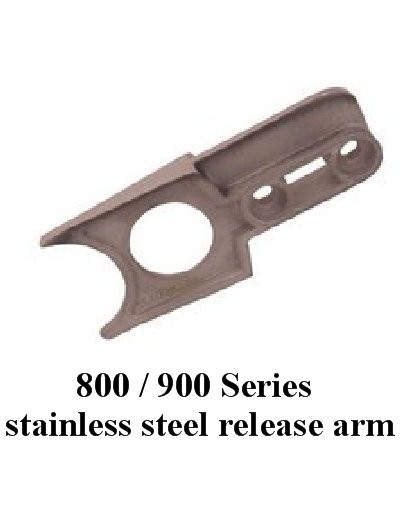

Release arm suits all models.

Many more images you can scroll through here.

Many more spare parts available to repair your winch.
Email us for prices and availability.

Details:

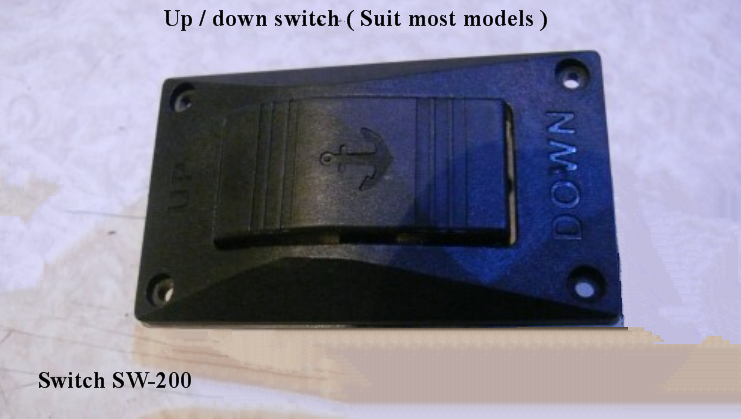

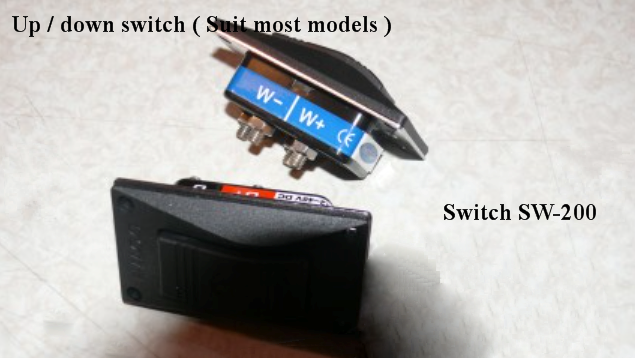

DIRECT CONTROL SWITCH : SW-200

Load Capacity : 200A / 500A(10S)
Suit Voltage : 12V ~ 48V DC
Life : 100,000 times
Contact Material : AgCdO
Contact Resistance : Max. 20m? initial
Insulation Resistance : Min.100m? at 500V DC
Terminal Size : 6 mm
Dimension : 85 x 50 x 45 mm
Weight :150g
--------------------------------------------------

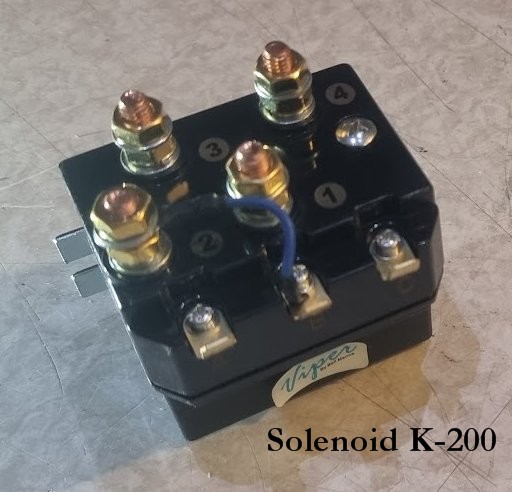

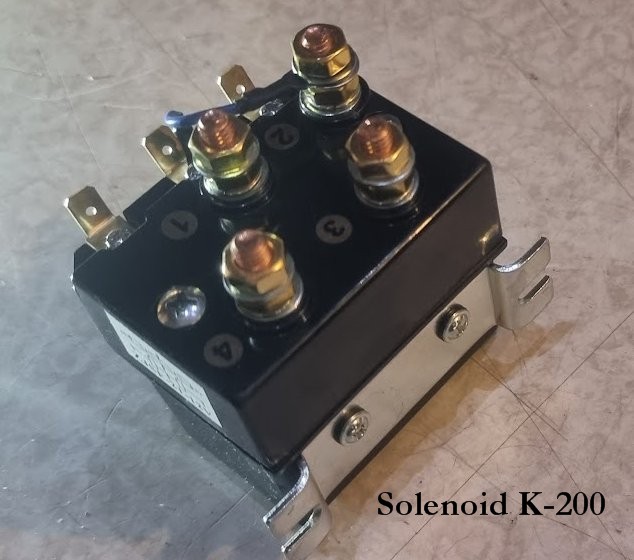

SOLENOID : K-200(12V)(24V)

Load Capacity : 200A / 500A(10S)
Suit Voltage : 12V ~ 24V
Life : 100,000 times
Contact Material : AgCdO
Contact Resistance : Max. 20m? initial
Insulation Resistance : Min.100m? at 500V DC
Terminal Size : 6 mm
Dimension : 65(L) x 45(W) x 65(H) mm
Weight :360g
-----------------------------------------------

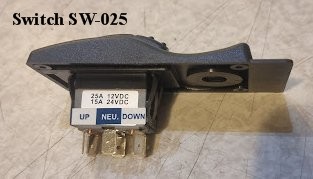

UP/DOWN SWITCH : SW-025 (for K-200 trigger only)

Load capacity : 25amp
Suit voltage : 12 ~ 24 V DC
Dimension : 95(L) x 50(W) x 50(H) mm
Weight : 50 g
------------------------------------------------

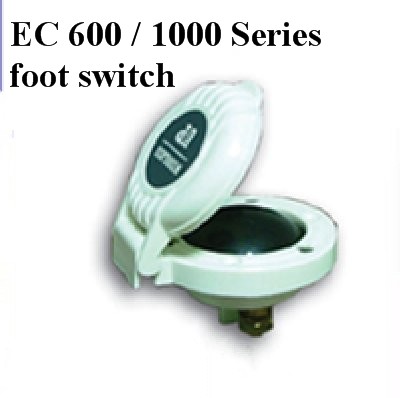

FOOT SWITCH : FS-200

Load Capacity : 200 A, 12 ~ 24V
Diameter : 76 mm / 3”
Mounting Hole : 50 mm / 2”
Terminal size : 8 mm
Weight : 138 g
--------------------------------------------

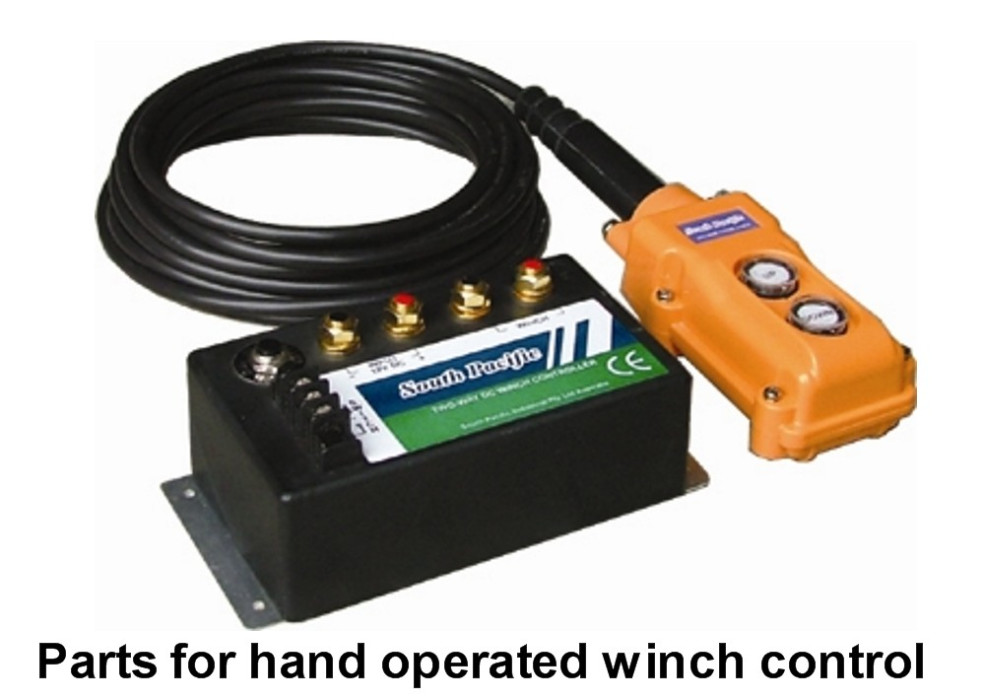

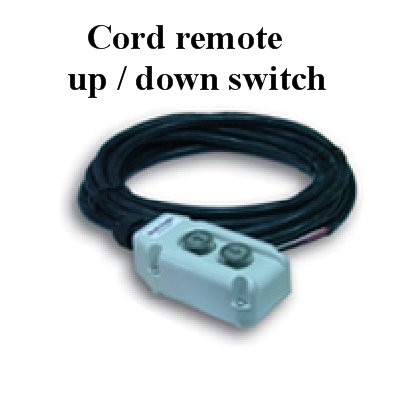

HAND HELD SWITCH : HH-005 (for K-200 trigger only)

Load capacity : 5 amp
Suit voltage : 12 ~ 24 V DC
Cable length : 5 metres(16.7 ft
--------------------------------------------

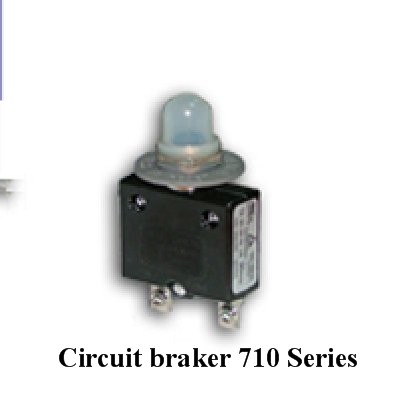

CIRCUIT BREAKER : CB-001(30)(50)

Capacity : 30 amp / 50 amp
Suit voltage : 12 ~ 24V DC
Reset : manual reset
Dimension : 35x15x31 mm
Weight : 30 g
---------------------------------------------
CIRCUIT BREAKER : CB-003(50)(90)

Capacity : 50 amp / 90 amp
Suit voltage : 12 ~ 24V DC
Terminal size : 6 mm
Reset : manual reset
Dimension : 75x50x35 mm
Weight : 100 g
--------------------------------------------
