South Pacific EC1000 - Electric Capstan

Details:

These electric-operated capstans provides tremendous drag force and long-life performance.
Ideal for pulling fishing net, crab pot, anchor rope, mast...etc

CONTENTS
Foot switch
Circuit breaker
Hardware

3 years warranty.

- Operating Voltage ....................12V DC

- Max. Working Load....................450kg(1000lb)

- Typical Load....................72kg(160lb)

- Retrieval Speed..................20m(67ft)/min .

- Duty cycle.......................40min/50%

- Current Draw(typical)......................28A

- Motor Wattage I/O...................1100W/450W

- Motor Type / Efficiency..................82%

- Gear Type / Efficiency.....spur gear / 92%~98%

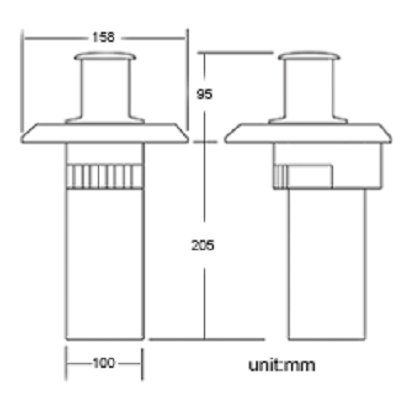

- Capstan Diameter.........................66mm

- Suit Rope Size.......................6~14mm, 1/4"~9/16"

- Suit Deck Thickness.......................3mm~60mm
