South Pacific 800H -Horizontal Pro 800 Series.... Boats to 9mts.,

Click Image to Enlarge

$899.95 $779.00

Product Description

800 series suit boats from 6~9m (20~30ft) or handle up to 13.6kg (30lb) of anchor
The 800 series have been developed with up-to-date technology and ideals, with efficient spur gears instead of traditional worm gears which can reduce of up to 30% ~ 50% motor power consumption. The Stainless Steel Gypsy
(standard package) takes both rope and chain and a heat radiating system allow it to prevent motor overheating.

Our Special Prices
Pro 800H $779.00 (power down)
Freight $28 Aust. wide

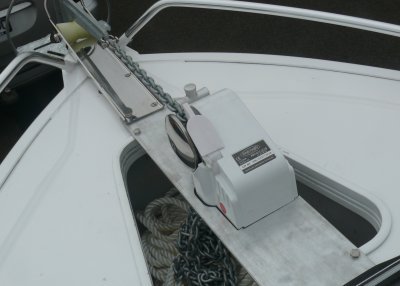

We also fit the winches if the customer require.
Fitting includes required cable, wired direct from battery from $460.00

* Please note that the 800H is power out anchor only and 800F is freefall or power out
( selective screw on the side of the winch)
The standard gypsy ( stainless steel ) for this series excepts 8mm short link
chain and 12 / 14mm 3 strand rope.

3 years warranty.

Details:

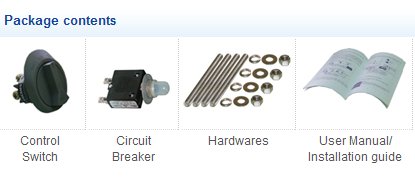

SUPPLIED CONTENTS
Direct control switch, Circuit breaker, hardware
Template, User manual

SPECIFICATIONS

- Operating Voltage -- 12V DC only
- Max. Working Load -- 300 kg (660 lb)
- Typical Working Load -- 60 kg (132 lb)
- Retrieval Speed -- 19 m/min (63 ft/min)
- Pay-Out Speed -- 800H 22 m/min (73 ft/min), 800F free fall or power out
- Current Draw (Typical) -- 24 amp
- Motor Type / Efficiency -- Permanent Magnet / 74 %
- Motor Wattage I/O -- 800W / 350W
- Gear Type / Efficiency -- Spur Gear / 92%~98%

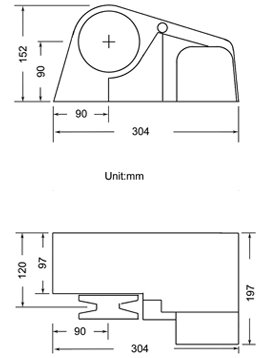

- Dimension(LxWxH) -- 304 mm x 197mm x 153mm 
- Weight 800H / 800F -- 7.8 kg (17lb) / 8.2 kg (18lb)
- Suit Chain Size -- 6, 7, 8mm DIN766, 1/4", 5/16" G4 HT (selectable)
- Suit Rope Size -- 12, 14mm(selectable)
- Suit Deck Thickness -- 3mm~60mm

FEATURES
Efficient spur gears, low current draw, high output power
Efficient heavy duty DC motor produce less heat
Stainless steel Gypsy takes both rope and chain
Switch control automatic free fall for free fall model
A torque limiter to deliver smoother operation and greater reliability
Compact one-piece housing ensure water resistance
Aluminum alloy case with powder coated finish
Simple deck mounting with no under deck parts
