South Pacific 710HS Winch - Pro 710 Series - Boats to 6mts.

Click Image to Enlarge


Product Description

710HS (power out only, S/Steel gypsy)

Efficient spur gear box(ex. 710) provide high output torque with low current draw, can reduce up to 40% of power consumption. Compact one-piece unit with no parts under deck for simple installation and fit any thickness of deck. A torque limiter built-in can absorb sudden impact to deliver smoother operation and greater reliability.
710 series suit boats from 4.5~6m(15~20 ft) or handle up to 6.8kg(15lb) of anchor.

The 710 series are specially designed for smaller size boats, with a compact, easy operating and easy to install by yourself.

The durable nylon or stainless steel gypsy runs both rope and chain smoothly.

3 years warranty.


Note. The label on the winch won't have the letter "S" on it anytime.The stainless gypsy part number stamped on it is R0014-0 All winches are white in colour.

The710HS are fitted with a durable stainless steel gypsy.
South Pacific's flag ship model, the Pro 710 series, is the only anchor windlass for boats under 6 mts...
With a maximum working load of 120kg and swift retrieval speed, is sure to make anchoring hassle-free and safe.

Power out: This function pays out the electric power from the motor and you will need to keep pressing the down switch until the anchor reaches the seabed.

Our gypsies are capable of taking both rope and chain.

The Pro 710 series are our most popular models, catering for every budget and boating needs.

- Handle anchor size -- Up to 6.8 kgs (15 lb)
- Input Voltage -- 12V DC
- Maximum working load -- 120kg (265lb)
- Typical Working Load -- 20kg (45lb)
- Retrieval Speed -- 17m (57ft)/min.
- Pay-out Speed -- 22m (73ft)/min. / Free Fall
- Continuous working time -- 15 min.
- Current Draw -- 12Amp
- Motor Type -- Permanent magnet
- Motor Wattage I/O -- 700W/300W
- Weight -- 4.0kg (8.8lb), 4.3kg (9.5lb)

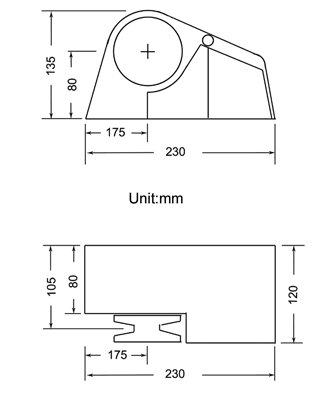

230mm x 120mm x 135mts.

Chain -- 6mm Short-link

Rope -- 12mm Premium nylon three strand, medium laid
Some Silver Rope can be used with success.

Additional Product Information

Download PDF
