South Pacific 710FS Winch - Pro 710 Series - Boats to 6mts.

Size:

710 series suit boats from 4.5~6m(15~20 ft)

Details:

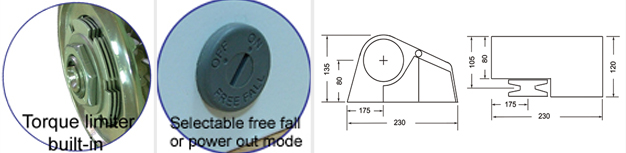

A torque limiter built-in can absorb sudden impact to deliver smoother operation and greater reliability.

Switch control free fall function for quick releasing the anchor on free fall models.

The 710 series are specially designed for smaller size boats, with a compact, easy operating and easy to install by yourself.

The durable stainless steel gypsy runs both rope and chain smoothly.

Note. The label on the winch won't have the letter "S" on it anytime.The stainless gypsy part number stamped on it is R0014-0 All winches are white in colour.

The dual free fall option FS model allows you to select between the power out and free fall functions.There is a large nylon screw on the right hand side of the winch that by turning it allows you to access either freefall or power out.

The Pro 710 series are our most popular models, catering for every budget and boating needs.

3 years warranty.

- Handle anchor size -- Up to 6.8 kgs (15 lb)

- Input Voltage -- 12V DC

- Maximum working load -- 120kg (265lb)

- Typical Working Load -- 20kg (45lb)

- Retrieval Speed -- 17m (57ft)/min.

- Pay-out Speed -- 22m (73ft)/min. / Free Fall

- Continuous working time -- 15 min.

- Current Draw -- 12Amp

- Motor Type -- Permanent magnet

- Motor Wattage I/O -- 700W/300W

- Weight -- 4.0kg (8.8lb), 4.3kg (9.5lb)

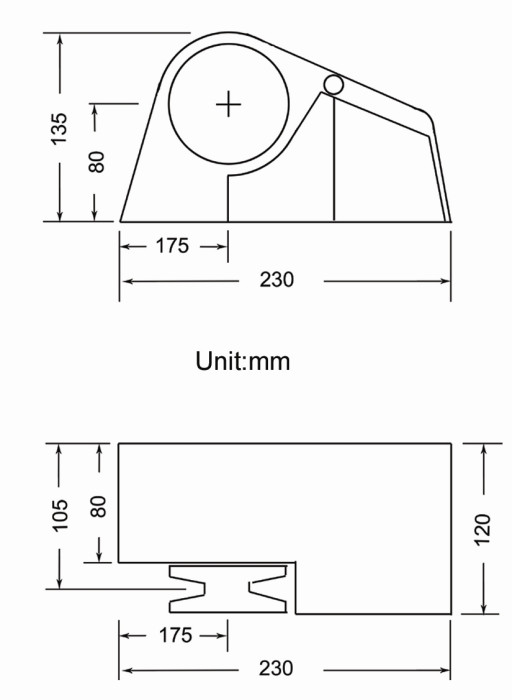

Dimension
- 230mm x 120mm x 135mts.

Chain -- 6mm Short-link

Rope -- 12mm Premium nylon three strand, medium lay.
Some Silver Rope can be used with success.

When you deal with Precision Marine you get personalized service where you can email or phone us direct before purchase and speak to someone who knows.
