South Pacific 800F - Horizontal Pro 800 Series.... Boats to 9mts.,

Details:

- Operating Voltage : 12V DC only

- Max. Working Load : 300 kg (660 lb)

- Typical Working Load : 60 kg (132 lb)

- Retrieval Speed : 19 m/min (63 ft/min)

- Pay-Out Speed : 800H 22 m/min (73 ft/min), 800F free fall or power out

- Current Draw (Typical) : 24 amp

- Motor Type / Efficiency : Permanent Magnet / 74 %

- Motor Wattage I/O : 800W / 350W

- Gear Type / Efficiency : Spur Gear / 92%~98%

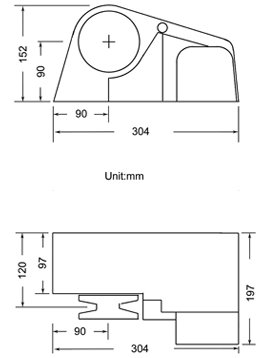

- Dimension(LxWxH) : 304 mm x 197mm x 153mm 12” x 7.75” x 6”

- Weight 800H / 800F : 7.8 kg (17lb) / 8.2 kg (18lb)

- Suit Chain Size : 6, 7, 8mm DIN766, 1/4", 5/16" G4 HT (selectable)

- Suit Rope Size : 12, 14mm(selectable)

- Suit Deck Thickness : 3mm~60mm

- Efficient spur gears, low current draw, high output power

- Efficient heavy duty DC motor produce less heat

- Stainless steel Gypsy takes both rope and chain

- Switch control automatic free fall for free fall model

- A torque limiter to deliver smoother operation and greater reliability

- Compact one-piece housing ensure water resistance

- Aluminum alloy case with powder coated finish

- Simple deck mounting with no under deck parts

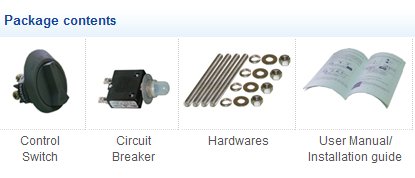

PACKET CONTENTS
Direct control switch, Circuit breaker, hardware
Template, User manual
