880-CS Savwinch Anchor Winch with Package

Click Image to Enlarge

$1,550.00 $1,475.00

Product Description

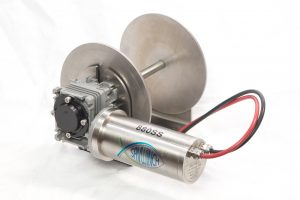

Savwinch 880CS 12volt Electric Drum Anchor Winch.

Suitable for boats up to 5.5m (18ft)

Full Kit Includes 65m x 6mm Nylon Double Braid & 6m x 6mm Short Link Chain

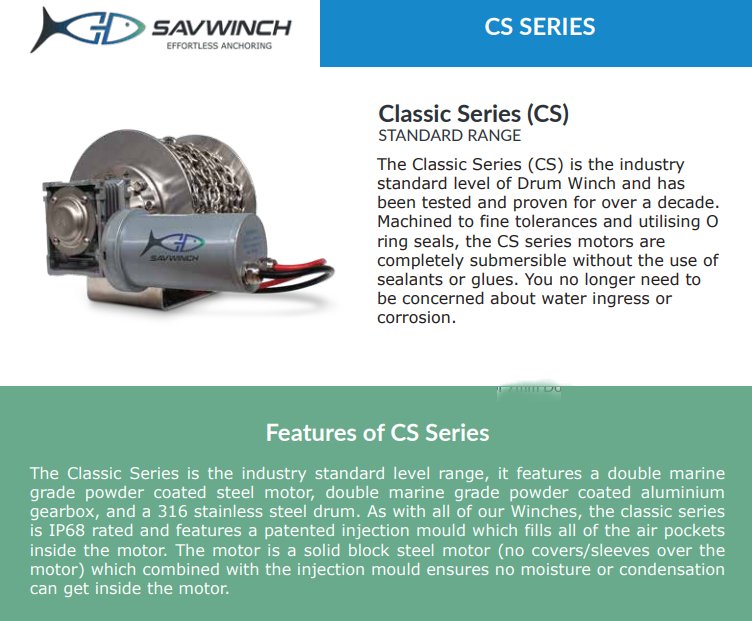

The Classic Series (CS) is the industry
standard level of Drum Winch and has
been tested and proven for over a decade.
Machined to fine tolerances and utilising O
ring seals, the CS series motors are
completely submersible without the use of
sealants or glues.
You no longer need to
be concerned about water ingress or
corrosion.

Size:

Dimensions: 207mm high and 319mm wide
Suitable for boats up to 5 metres

Details:

316 Stainless steel drum with solid keyed shaft
Stainless Bearing hub and Bearing support
Motor/gearbox has 8 different degree mounting points to drum bracket
Oversized gearbox worm drive fully sealed

Kit Includes

Roller Guide
Up Down Switch
Circuit Breaker
Backing Plate & Bolts
60m x 6mm Nylon Double Braid & 5m 6mm Short Link Chain

The Savwinch 880CS winch has been designed to fit into the smallest of anchor wells.

12V motor 880W

316 Stainless steel 200mm drum

Motor (IP66) water and corrosion resistant

5 year warranty

10-11-24

Additional Product Information

Download PDF
