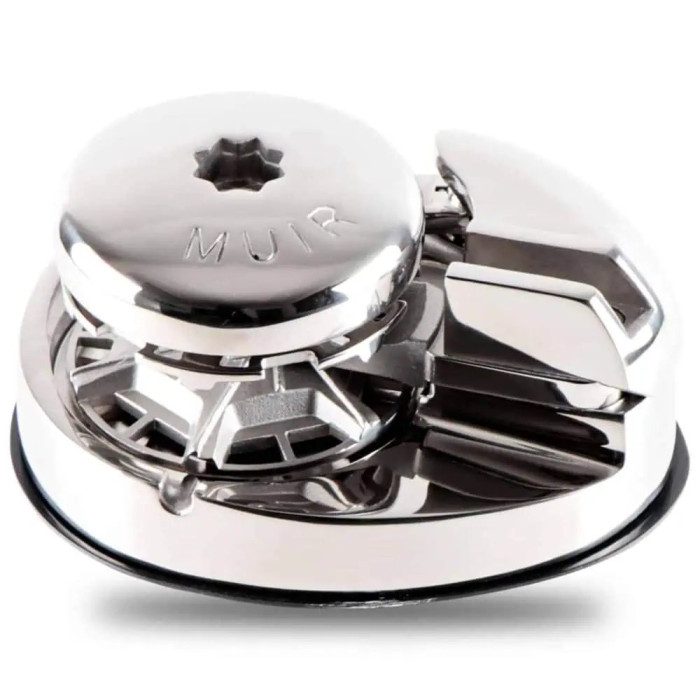

Muir Storm VFF600 Virtical Anchor Winch

$2,814.84 $2,615.00

Product Description

Storm VFF 600 freefall provides the strength of conventional vertical windlasses but with advanced and innovative concepts.

Contact us for our best price.

This provides the highest level of security and safety whilst enhancing the foredeck of the most luxurious vessel.

-Polished stainless steel components
-High tensile stainless steel shaft
-Heavy duty, marine grade, dual-direction motor
-Superior, heavy-duty Oil bath worm drive gearbox
-Rope Chain Management System (RCMS)
-Quick-Access Chain Pipe Cover
-Self-lubricating bush
-Capstan models feature a knurled grip
-Independent gypsy and capstan operation
-Suits multiple global chain standards

Details:

Technical Specifications

Recommended Vessel Length(m) 5-9m
Recommended Vessel Length(ft) 16 - 29ft

Power Supply Options DC 12V, DC 24V, DC 48V

Recommended Muir Circuit Breaker
80A/80A (12/24V)

Motor (Watts) 550Watts

Amps Workload 75A/40A (12/24V)

Max Load 369Kg

Workload 123Kg

Max Line Speed 21m/min

Compatible Chain Sizes 6 mm (1/4") - 7 mm (7/25")

Compatible Rope Sizes

12 mm (1/2?)

Auto Anchor Compatible Yes

Net Weight DC 12Kg

Email us for a QUOTE or
more information about this product
