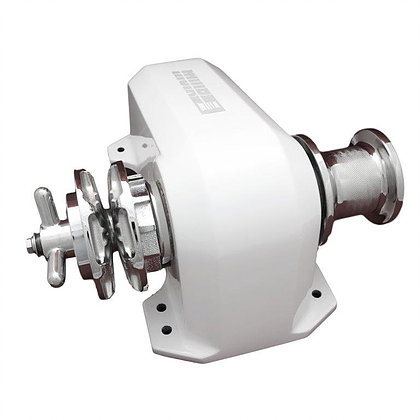

Muir HR2500 Cheetah Compact Horizontal Windlass Anchor Winch
$5,569.00 $4,620.00
Product Description
Muir HR2500 Cheetah Compact Electric 12-24volt Anchor Winch Suits Boats To 13 - 17m (42 - 55ft)
The Compact series of horizontal windlasses are ideal for installations where chain locker space is at a premium or not easily accessible.
Details:
These complete above deck units are constructed from durable marine alloy housings enclosing the powerful and heavy duty motor and gearbox, waterproofing and protecting it from the harsh elements.
All running gear is designed for durability and performance, manufactured from marine grade bronze with luxury chrome or optional traditional polished bronze finish.
- Vessel Length: 13 - 17m (42 - 55ft)
- Power supply: (DC) 12/24V
- Motor: 1200 Watts
- Hydraulic Flow: 20L/min
- Hydraulic Pressure: 10MPa (1450PSI)
- Max Load: 1136kg
- Work Load: 284kg
- Amps Work Load: 120/75
- Max Line Speed: 15m/min
- Chain Size: 8mm (10mm 13mm Gypsies can be fitted on request)
- Rope Size: 14 - 16 - 19mm
- Net Weight: DC 36kg HYD 35kg
When you deal with Precision Marine you get personalized service where you can email or phone us direct before purchase and speak to someone who knows.
Pricing as from 1-5-23
