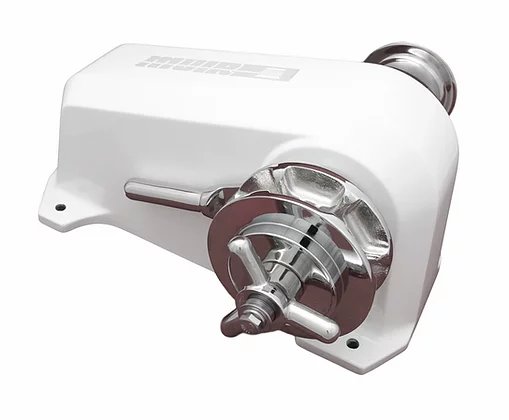

Muir HR1600 Cougar Compact Horizontal Windlass Anchor Winch
$3,999.00 $3,495.00
Product Description
The Muir HR1600 Cougar Compact electric anchor winch is available in 12 or 24Volt and suits boats to 9 - 12m (29 - 42ft)
Ideal for installations where chain locker space is at a premium or not easily accessible.
Details:
These complete above deck units are constructed from durable marine alloy housings enclosing the powerful and heavy duty motor and gearbox, waterproofing and protecting it from the harsh elements.
All running gear is manufactured from marine grade bronze.
All models feature a rope chain combination gypsy for rope and chain combination or chain only
Reversing switch is an optional extra.
- Vessel Length: 9 - 12m (29 - 42ft)
- Power Supply: 12V/24V DC
- Motor Watts: 1000
- Hydraulic Pressure: 10MPa (1450PSI)
- Hydraulic Flow: 20L/min 5.5gal/min
- Max Load: 545kg (1200lb)
- Work Load: 125kg (275lb)
- Amps Work Load: 100/60
- Max Line Speed: 14.5m/min (46ft/min)
- Chain Size: 8mm (6mm and 10mm Gypsies can be fitted on request)
- Rope Size: 12 - 14 - 16mm (1/2" - 9/16" - 5/8")
- Net weight: DC 25kg HYD 24kg
- Manual Operation: MORS (standard)
*Please specify Gypsy size when ordering
When you deal with Precision Marine you get personalized service where you can email or phone us direct before purchase and speak to someone
Pricing as from 1-1-23
