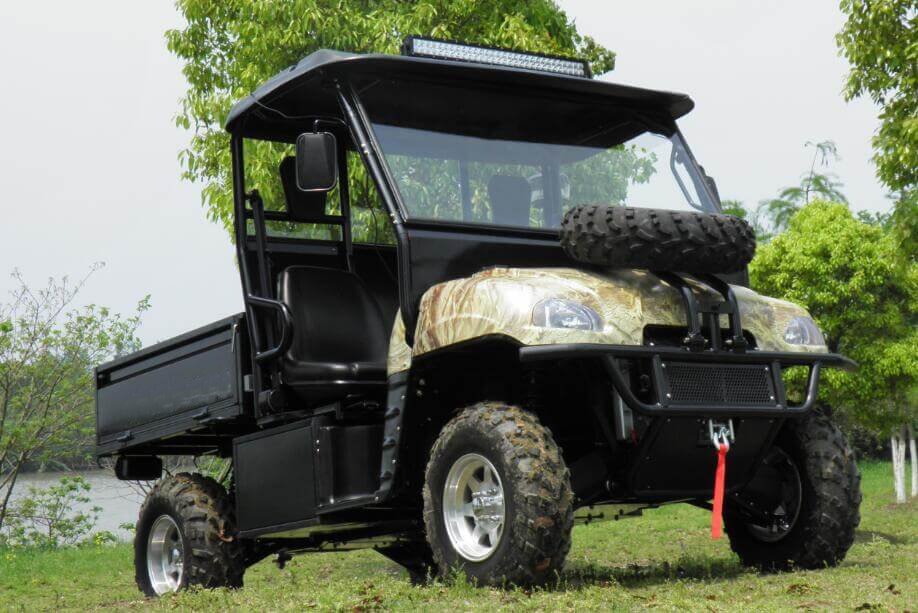

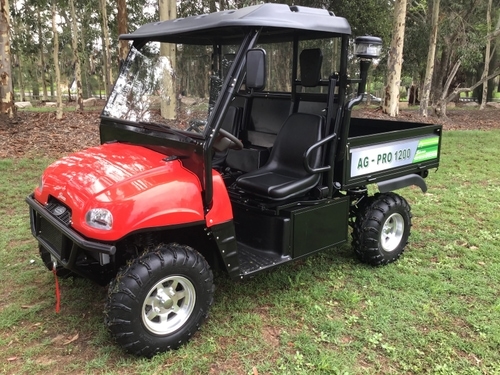

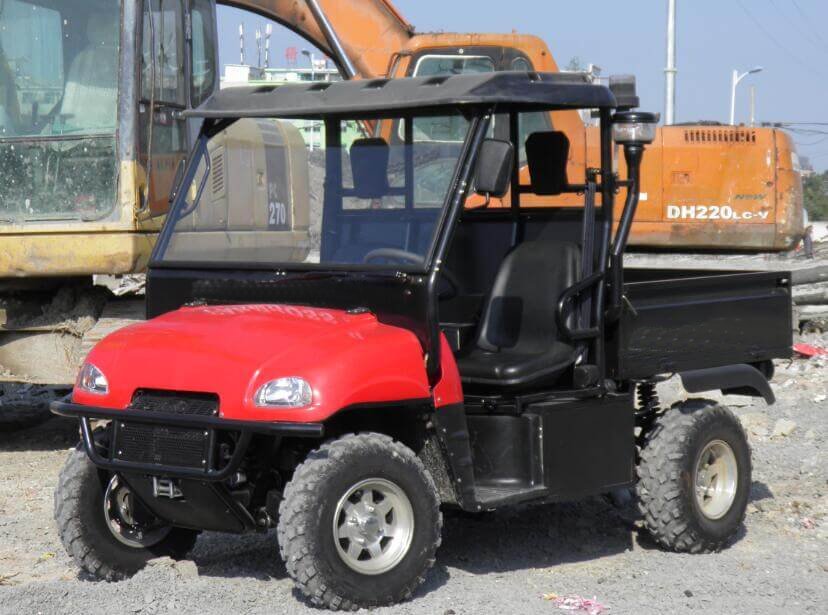

AG-Pro 1200 Diesel

Click Image to Enlarge


Product Description

AG-Pro 1200
$14,950 (Incl. GST) Fully Assembled
Price Ex. Sydney
The AG-Pro 1200 features a 1200cc Hi-Tech Common Rail 3 cyl Diesel engine, one of the most powerful UTV's on the market. This utility vehicle is built for hard work, serious towing, reliability and user comfort.

Fitted with a heavy duty CVT transmission; high and low range in both 4x2 and 4x4 front and rear diff lock, combined with the stability of a wide track it is ideal for heavy loads and towing applications makes it the most price competitive on market using a diesel engine.

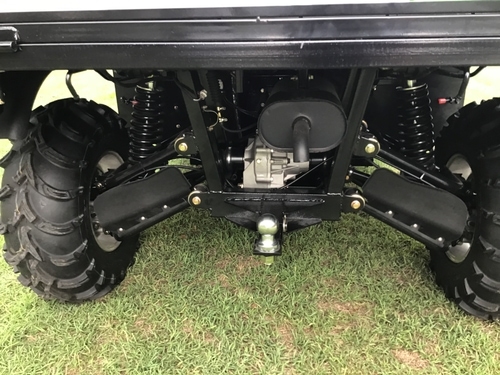

Front and Rear Independent Suspension.

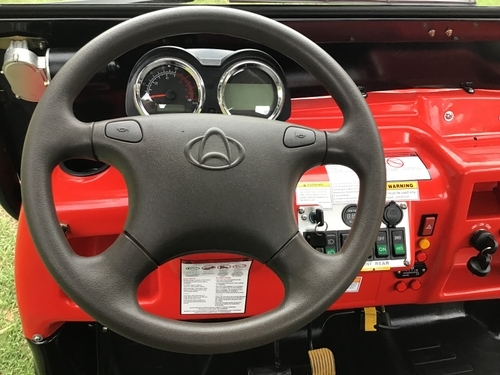

A real plus is the digital instrument cluster showing miles or kilometres in speed and distance, as well as an hour meter, fuel and temperature gauges, voltmeter, gear selection, indicators and various system warning lights.

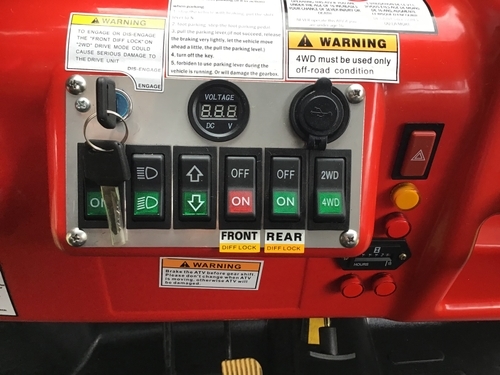

Selectable high and low rear diff lock | 4WD | front diff lock.

The rear tipper tray is fitted with hydraulic struts, the sides are removable to make a larger 1300mm x 1500mm (52" x 60") flat tray with a load capacity of 400kg.

Heavy duty roof protection frame combined with lap/sash seat belts enhances the many safety features of the utility vehicle.

The AG-Pro 1200 comes with a 24 months limited or 1000 hour (whichever comes first) warranty.

Standard features include Remote air filter with pre-cleaner, ABS Roof, Front & Rear windscreens, Front wiper, Alloy wheels, 6 Ply tyres, Winch. Full lighting package.

Fully assembled


-Full Instrumentation

-Alloy Wheels

-Tow Hitch/Ball

-Tool Kit / Owners Manual

-Bucket Seats/Seat Belts Lap Sash

-Head and Tail Lights / Indicators

-3000lb Winch

-ABS Hardtop Roof

-Remote Air Filter with Pre-filter

-Windscreens Front and Rear

-Windscreen Wiper


Length ; 3150mm

Width ; 1580mm

Height ; 1900mm

Mass : 670 kg unladen

Ground Clearance : 330 mm

Wheel Base : 2130 mm

Track (F) : 1400 mm

Track (R) : 1450 mm

Top Speed : 50 klm/hr

Tyres All Terrain (F) : 25 x 8-12 (6 PLY)

Tyres All Terrain (R) : 25 x 10-12 (6 PLY)

Turning Circle 5.5 m



Hi-Tech 1200cc,

3 Cylinder, Common Rail Diesel

Output Power : 17.5 kw/4000 rpm

Torque : 52nm/2200 rpm

Lubrication : Force/Splash

Electrics : 12V

Alternator : 70 amp

Cooling : Liquid Thermo Fan

Fuel Rq : Diesel


Selectable 2x4 - 4x4 with front and rear diff locks

Front & Rear Diff. Shaft Driven

Front Independent Suspension

Rear Independent Suspension

Hand Brake

Rack & Pinion Steering

4 Wheel Disc Brakes / Booster with Vacuum Pump


Fuel Tank : 30 litres

Engine Oil : SAE 10w 30

Battery : 12V 40 AH

Headlights : 12V 35W

Rear Tray : 400 Kgs (Converts to Flat Tray)

Tray Measurements ; L1270 x W1435 x H330)

Towing Capacity : 800 Kg


CVT Automatic - 4x2, 4x4

High/Low Range

Shift R-N-L-D
